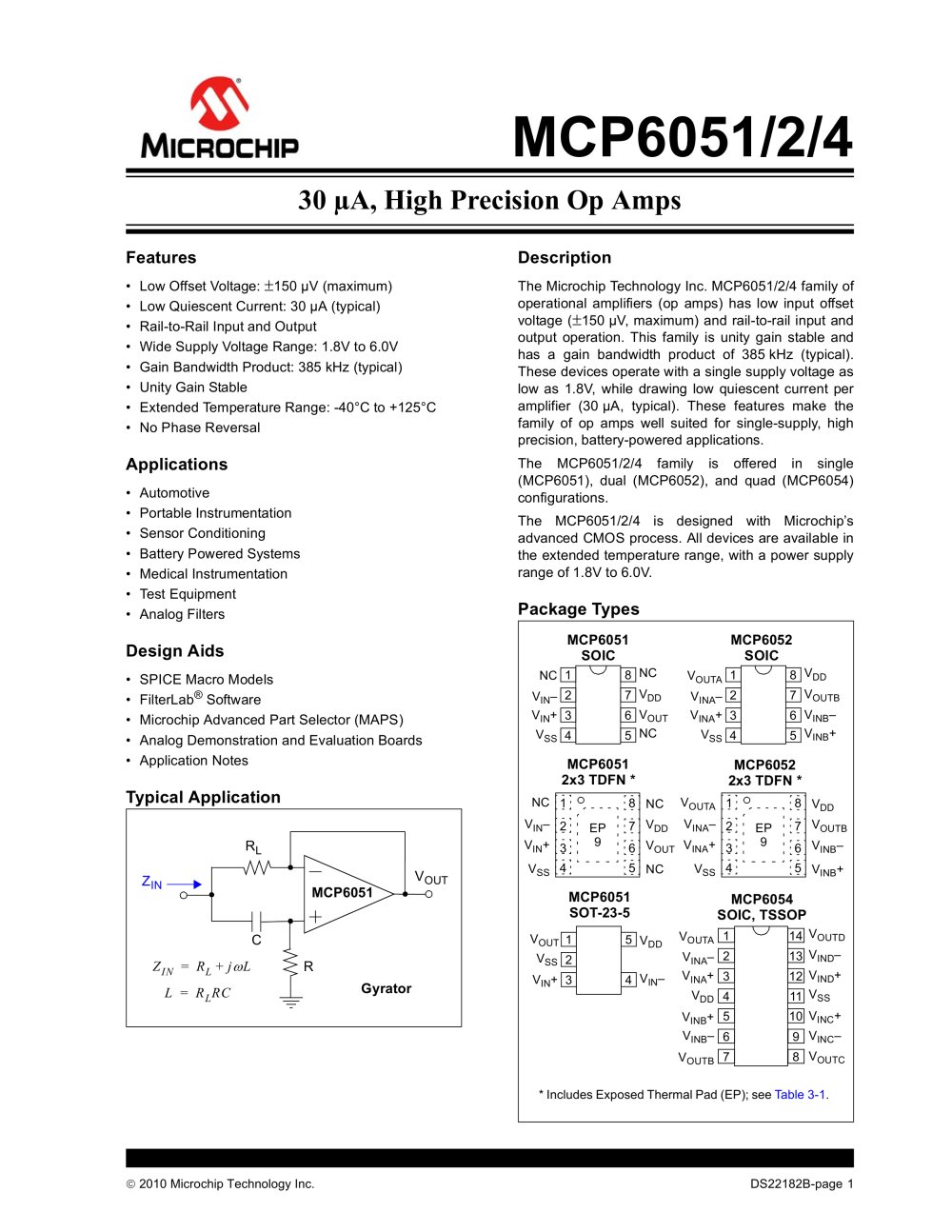

© 2010 Microchip Technology Inc. DS22182B-page 1 MCP6051/2/4 Features • Low Offset Voltage: ±150 ìV (maximum) • Low Quiescent Current: 30 ìA (typical) • Rail-to-Rail Input and Output • Wide Supply Voltage Range: 1.8V to 6.0V • Gain Bandwidth Product: 385 kHz (typical) • Unity Gain Stable • Extended Temperature Range: -40°C to +125°C • No Phase Reversal Applications • Automotive • Portable Instrumentation • Sensor Conditioning • Battery Powered Systems • Medical Instrumentation • Test Equipment • Analog Filters Design Aids • SPICE Macro Models • FilterLab® Software • Microchip Advanced Part Selector (MAPS) • Analog Demonstration and Evaluation Boards • Application Notes Typical Application Description The Microchip Technology Inc. MCP6051/2/4 family of operational amplifiers (op amps) has low input offset voltage (±150 ìV, maximum) and rail-to-rail input and output operation. This family is unity gain stable and has a gain bandwidth product of 385 kHz (typical). These devices operate with a single supply voltage as low as 1.8V, while drawing low quiescent current per amplifier (30 ìA, typical). These features make the family of op amps well suited for single-supply, high precision, battery-powered applications. The MCP6051/2/4 family is offered in single (MCP6051), dual (MCP6052), and quad (MCP6054) configurations. The MCP6051/2/4 is designed with Microchip’s advanced CMOS process. All devices are available in the extended temperature range, with a power supply range of 1.8V to 6.0V. Package Types RL VOUT Gyrator ZIN R C ZIN = RL + jùL L=RLRC MCP6051 * Includes Exposed Thermal Pad (EP); see Table 3-1. 1 2 3 4 8 7 6 5 EP 9 VDD VOUT NC NC VIN+ VIN– VSS NC 1 2 3 4 8 7 6 5 EP 9 VOUTB VINB– VINB+ VDD VINA+ VINA– VSS VOUTA VINA+ VINA– VDD 1 2 3 4 14 13 12 11 VOUTA VOUTD VIND– VIND+ VSS VINB+ 5 10 VINC+ VINB– 6 9 VOUTB 7 8 VOUTC VINC– VINA+ VINA– VSS 1 2 3 4 8 7 6 5 VOUTA VDD VOUTB VINB– VINB+ VIN+ VIN– VSS 1 2 3 4 8 7 6 5 NC NC VDD VOUT NC MCP6051 SOIC MCP6052 SOIC MCP6051 2x3 TDFN * MCP6054 SOIC, TSSOP MCP6052 2x3 TDFN * VIN+ VIN– VSS 1 2 3 5 4 VOUT VDD MCP6051 SOT-23-5 30 ìA, High Precision Op Amps
