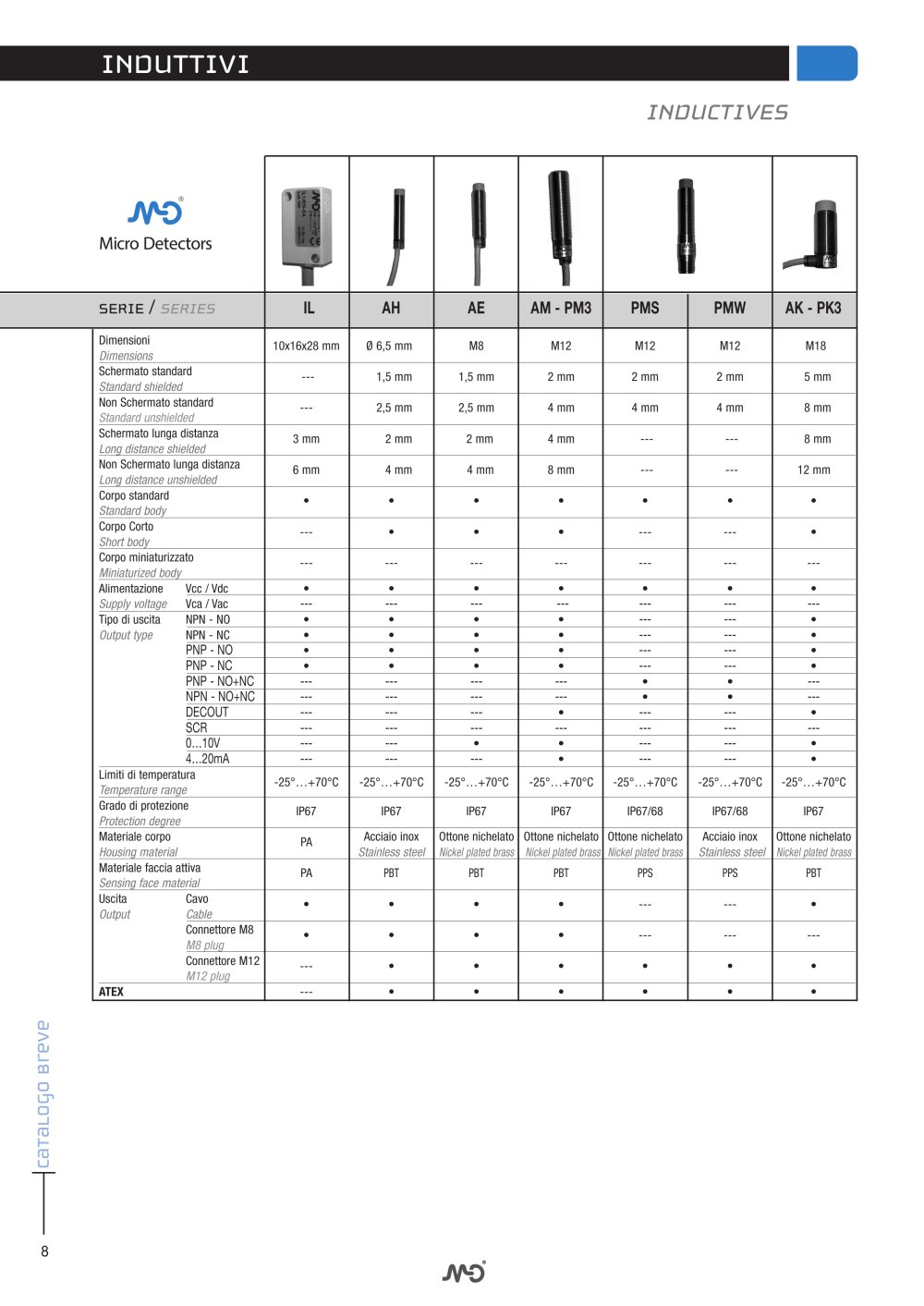

INDUTTIVI


® JVK) Micro Detectors	11 CE	¹	¹	\	1		J
SERIE / SERIES	IL	AH	AE	AM - PM3	PMS	PMW	AK - PK3
Dimensioni	10x16x28 mm	0 6,5 mm	M8	M12	M12	M12	M18
Schermato standard Standard shielded	---	1,5 mm	1,5 mm	2 mm	2 mm	2 mm	5 mm
Non Schermato standard Standard unshielded	---	2,5 mm	2,5 mm	4 mm	4 mm	4 mm	8 mm
Schermato lunga distanza Long distance shielded	3 mm	2 mm	2 mm	4 mm	---	---	8 mm
Non Schermato lunga distanza Long distance unshielded	6 mm	4 mm	4 mm	8 mm	---	---	12 mm
Corpo standard	•	_•	_•	_•	_•	_•	_•
Corpo Corto Short body	---	_•	_•	_•	---	---	_•
Corpo miniaturizzato Miniaturized body	---	---	---	---	---	---	---
Alimentazione Vcc / Vdc		_•	_•	_•	_•	_•	_•
Supply voltage Vca / Vac	---	---	_---	_---	---	---	---
Tipo di uscita NPN - NO	_•	_•	_•	_•	---	---	_•
Output type NPN - NC	_•	_•	_•	_•	---	---	_•
PNP - NO	_•	_•	_•	_•	---	_---	_•
PNP - NC	_•	_•	_•	_•	---	---	_•
PNP-NO+NC	---	---	---	—	_•	_•	---
NPN - NO+NC	---	---	---	_---	_•	_•	---
DECOUT	---	---	---	_•	---	---	_•
SCR	---	---	---	—	---	---	---
0...10V	---	---	_•	_•	---	---	_•
4...20mA	---	---	—	_•	---	---	_•
Limiti di temperatura Temperature range	-25°...+70°C	-25°...+70°C	-25°...+70°C	-25°...+70°C	-25°...+70°C	-25°...+70°C	-25°...+70°C
Grado di protezione Protection degree	IP67	IP67	IP67	IP67	IP67/68	IP67/68	IP67
Materiale corpo Housing material	PA	Acciaio inox Stainless steel	Ottone nichelato Nickel plated brass	Ottone nichelato Nickel plated brass	Ottone nichelato Nickel plated brass	Acciaio inox Stainless steel	Ottone nichelato Nickel plated brass
Materiale faccia attiva Sensing face material	PA	PBT	PBT	PBT	PPS	PPS	PBT
Uscita Cavo Output Cable	•	_•	_•	_•	---	---	_•
Connettore M8 M8 plug	•	_•	_•	_•	---	---	---
Connettore M12 M12 plug	---	_•	_•	_•	_•	_•	_•
ATEX	---	_•	_•	_•	_•	_•	_•
