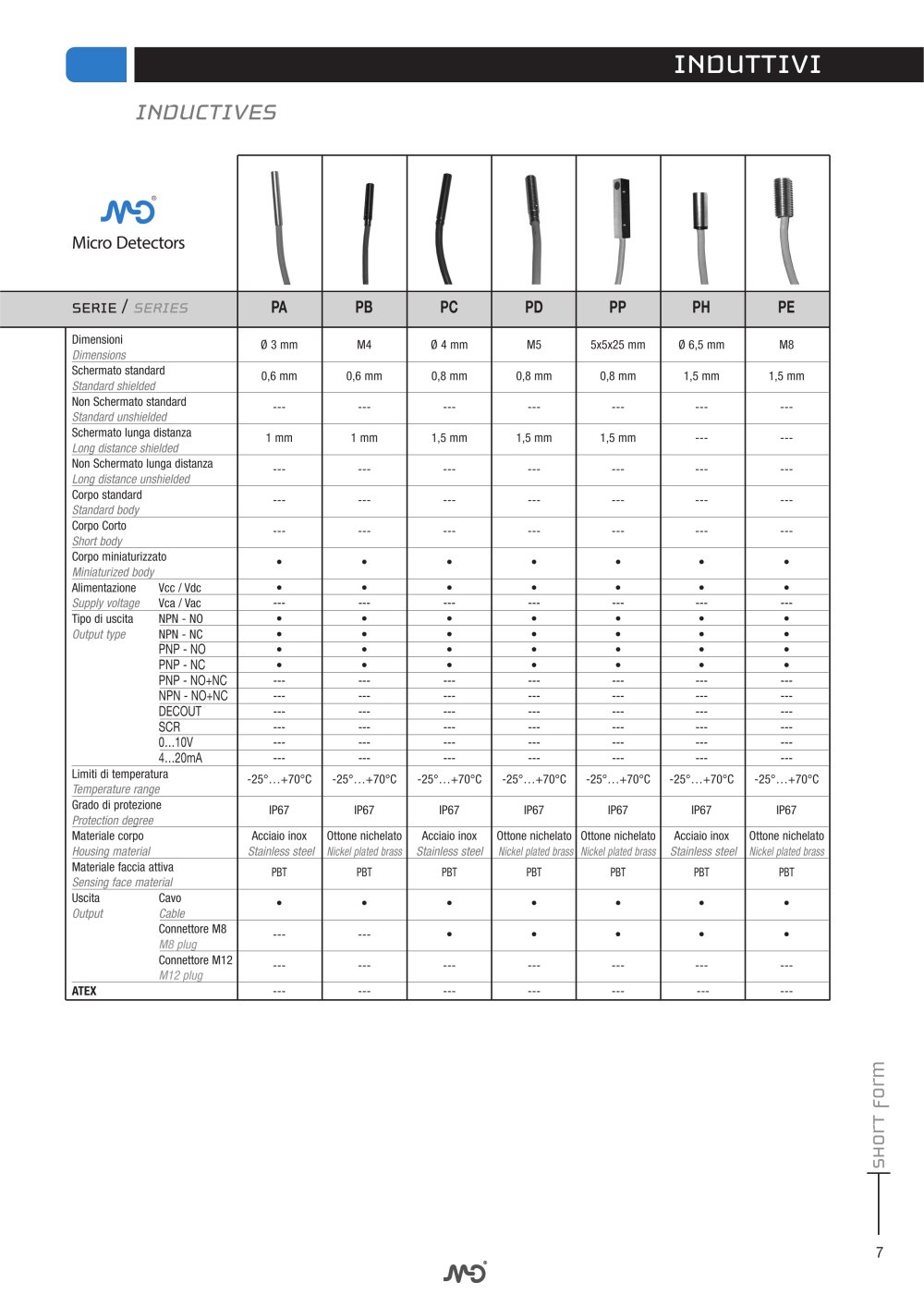

INDUTTIVI
®
Micro Detectors
|
1
1
(
1
1
ti
u
\
SERIE / SERIES
PA
PB
PC
PD
PP
PH
PE
Dimensioni
0 3 mm
M4
0 4 mm
M5
5x5x25 mm
0 6,5 mm
M8
Schermato standard Standard shielded
0,6 mm
0,6 mm
0,8 mm
0,8 mm
0,8 mm
1,5 mm
1,5 mm
Non Schermato standard Standard unshielded
---
---
---
---
---
---
---
Schermato lunga distanza Long distance shielded
1 mm
1 mm
1,5 mm
1,5 mm
1,5 mm
---
---
Non Schermato lunga distanza Long distance unshielded
---
---
---
---
---
---
---
Corpo standard Standard body
---
---
---
---
---
---
---
Corpo Corto Short body
---
---
---
---
---
---
---
Corpo miniaturizzato Miniaturized body
•
•
•
•
•
•
•
Alimentazione Vcc / Vdc
•
•
•
•
•
•
•
Supply voltage Vca / Vac
---
---
---
---
---
---
---
Tipo di uscita NPN - NO
•
•
•
•
•
•
•
Oiitpiit type NPN - NC
•
•
•
•
•
•
•
PNP - NO
•
•
•
•
•
•
•
PNP - NC
•
•
•
•
•
•
•
PNP-NO+NC
---
---
---
—
---
---
---
NPN -NO+NC
---
---
---
---
---
---
---
DECOUT
---
---
---
—
---
---
---
SCR
---
---
---
—
---
---
---
0...10V
---
---
---
---
---
---
---
4...20mA
---
---
---
—
---
---
---
Limiti di temperatura Temperature range
-25°...+70°C
-25°...+70°C
-25°...+70°C
-25°...+70°C
-25°...+70°C
-25°...+70°C
-25°...+70°C
Grado di protezione Protection degree
IP67
IP67
IP67
IP67
IP67
IP67
IP67
Materiale corpo Housing material
Acciaio inox Stainless steel
Ottone nichelato Nickel plated brass
Acciaio inox Stainless steel
Ottone nichelato Nickel plated brass
Ottone nichelato Nickel plated brass
Acciaio inox Stainless steel
Ottone nichelato Nickel plated brass
Materiale faccia attiva Sensing face material
PBT
PBT
PBT
PBT
PBT
PBT
PBT
Uscita Cavo Output Cable
•
•
•
•
•
•
•
Connettore M8 M8 plug
---
---
•
•
•
•
•
Connettore M12 M12 plug
---
---
---
---
---
---
---
ATEX
---
---
—
---
---
---
---
E i_ a u_
i_ a
in
7
