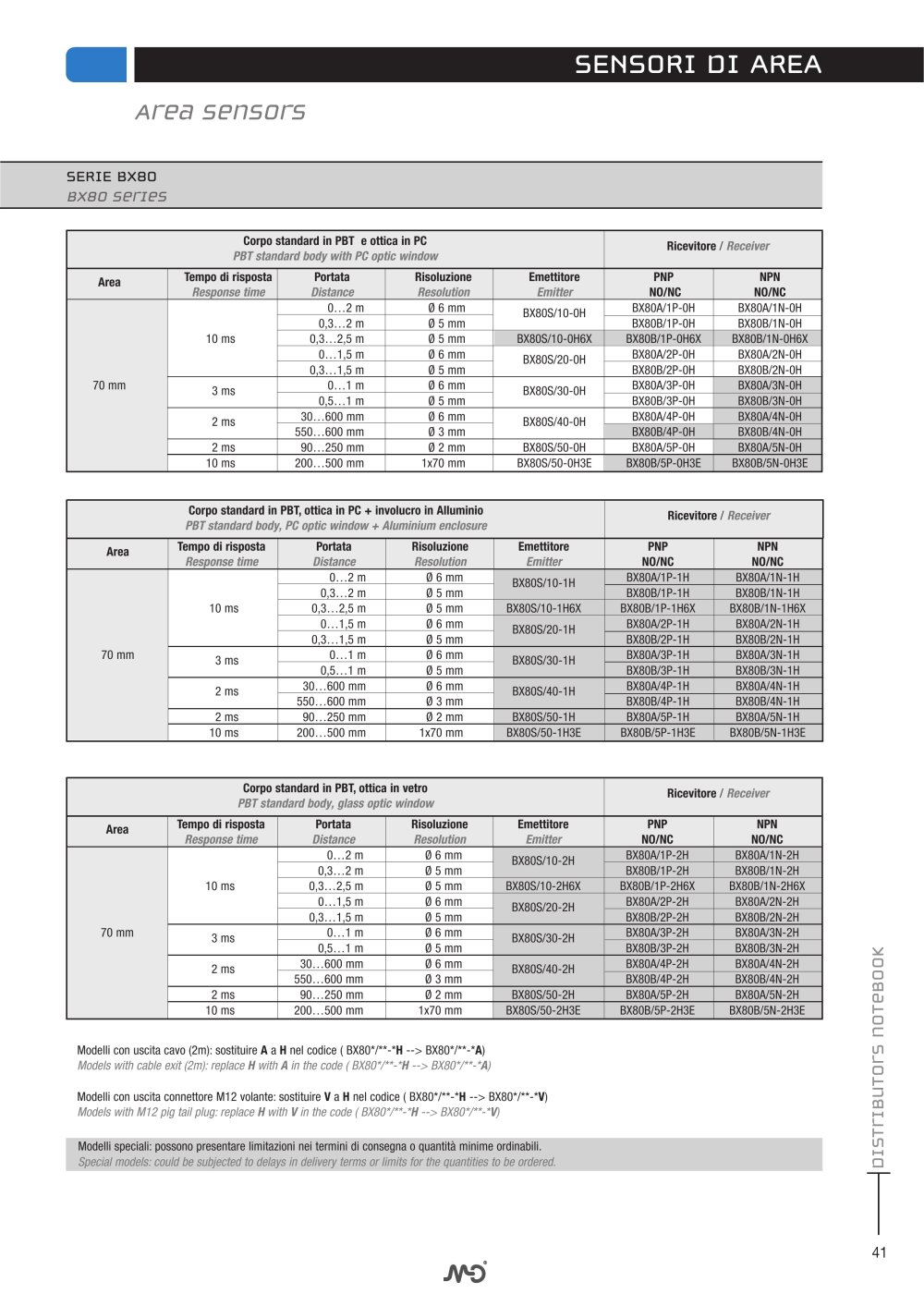

SENSORI DI AREA

Area Sensors

SERIE BX80 BX80 Series

Corpo standard in PBT e ottica in PC Ricevitore / Receiver PBT standard body with PC optic window AreaTempo di risposta Portata Risoluzione Emettitore PNP NPN Response timeDistanceResolutionEmitter NO/NCNO/NC 0…2 mØ6 mmBX80S/10-0HBX80A/1P-0HBX80A/1N-0H 0,3…2 mØ5 mmBX80B/1P-0HBX80B/1N-0H 10 ms0,3…2,5 mØ5 mmBX80S/10-0H6XBX80B/1P-0H6XBX80B/1N-0H6X 0…1,5 mØ6 mmBX80S/20-0HBX80A/2P-0HBX80A/2N-0H 0,3…1,5 mØ5 mmBX80B/2P-0HBX80B/2N-0H 70 mm3 ms0…1 mØ6 mmBX80S/30-0HBX80A/3P-0HBX80A/3N-0H 0,5…1 mØ5 mmBX80B/3P-0HBX80B/3N-0H 2 ms30…600 mmØ6 mmBX80S/40-0HBX80A/4P-0HBX80A/4N-0H 550…600 mmØ3 mmBX80B/4P-0HBX80B/4N-0H 2 ms90…250 mmØ2 mmBX80S/50-0HBX80A/5P-0HBX80A/5N-0H10 ms200…500 mm1x70 mmBX80S/50-0H3EBX80B/5P-0H3EBX80B/5N-0H3E Corpo standard in PBT,ottica in PC + involucro in Alluminio Ricevitore / Receiver PBT standard body, PC optic window + Aluminium enclosure AreaTempo di risposta Portata Risoluzione Emettitore PNP NPN Response timeDistanceResolutionEmitter NO/NCNO/NC 0…2 mØ6 mmBX80S/10-1HBX80A/1P-1HBX80A/1N-1H 0,3…2 mØ5 mmBX80B/1P-1HBX80B/1N-1H 10 ms0,3…2,5 mØ5 mmBX80S/10-1H6XBX80B/1P-1H6XBX80B/1N-1H6X 0…1,5 mØ6 mmBX80S/20-1HBX80A/2P-1HBX80A/2N-1H 0,3…1,5 mØ5 mmBX80B/2P-1HBX80B/2N-1H 70 mm3 ms0…1 mØ6 mmBX80S/30-1HBX80A/3P-1HBX80A/3N-1H 0,5…1 mØ5 mmBX80B/3P-1HBX80B/3N-1H 2 ms30…600 mmØ6 mmBX80S/40-1HBX80A/4P-1HBX80A/4N-1H 550…600 mmØ3 mmBX80B/4P-1HBX80B/4N-1H 2 ms90…250 mmØ2 mmBX80S/50-1HBX80A/5P-1HBX80A/5N-1H10 ms200…500 mm1x70 mmBX80S/50-1H3EBX80B/5P-1H3EBX80B/5N-1H3E Corpo standard in PBT,ottica in vetro Ricevitore / Receiver PBT standard body, glass optic window AreaTempo di risposta Portata Risoluzione Emettitore PNP NPN Response timeDistanceResolutionEmitter NO/NCNO/NC 0…2 mØ6 mmBX80S/10-2HBX80A/1P-2HBX80A/1N-2H 0,3…2 mØ5 mmBX80B/1P-2HBX80B/1N-2H 10 ms0,3…2,5 mØ5 mmBX80S/10-2H6XBX80B/1P-2H6XBX80B/1N-2H6X 0…1,5 mØ6 mmBX80S/20-2HBX80A/2P-2HBX80A/2N-2H 0,3…1,5 mØ5 mmBX80B/2P-2HBX80B/2N-2H 70 mm3 ms0…1 mØ6 mmBX80S/30-2HBX80A/3P-2HBX80A/3N-2H 0,5…1 mØ5 mmBX80B/3P-2HBX80B/3N-2H 2 ms30…600 mmØ6 mmBX80S/40-2HBX80A/4P-2HBX80A/4N-2H 550…600 mmØ3 mmBX80B/4P-2HBX80B/4N-2H 2 ms90…250 mmØ2 mmBX80S/50-2HBX80A/5P-2HBX80A/5N-2H10 ms200…500 mm1x70 mmBX80S/50-2H3EBX80B/5P-2H3EBX80B/5N-2H3E Modelli con uscita cavo (2m):sostituire A a H nel codice ( BX80*/**-* H --> BX80*/**-* A ) Models with cable exit (2m):replace H with A in the code ( BX80*/**-* H --> BX80*/**-* A ) Modelli con uscita connettore M12 volante:sostituire V a H nel codice ( BX80*/**-* H --> BX80*/**-* V ) Models with M12 pig tail plug:replace H with V in the code ( BX80*/**-* H --> BX80*/**-* V ) Modelli speciali:possono presentare limitazioni nei termini di consegna o quantità minime ordinabili. Special models:could be subjected to delays in delivery terms or limits for the quantities to be ordered.
distributors notebook

41
