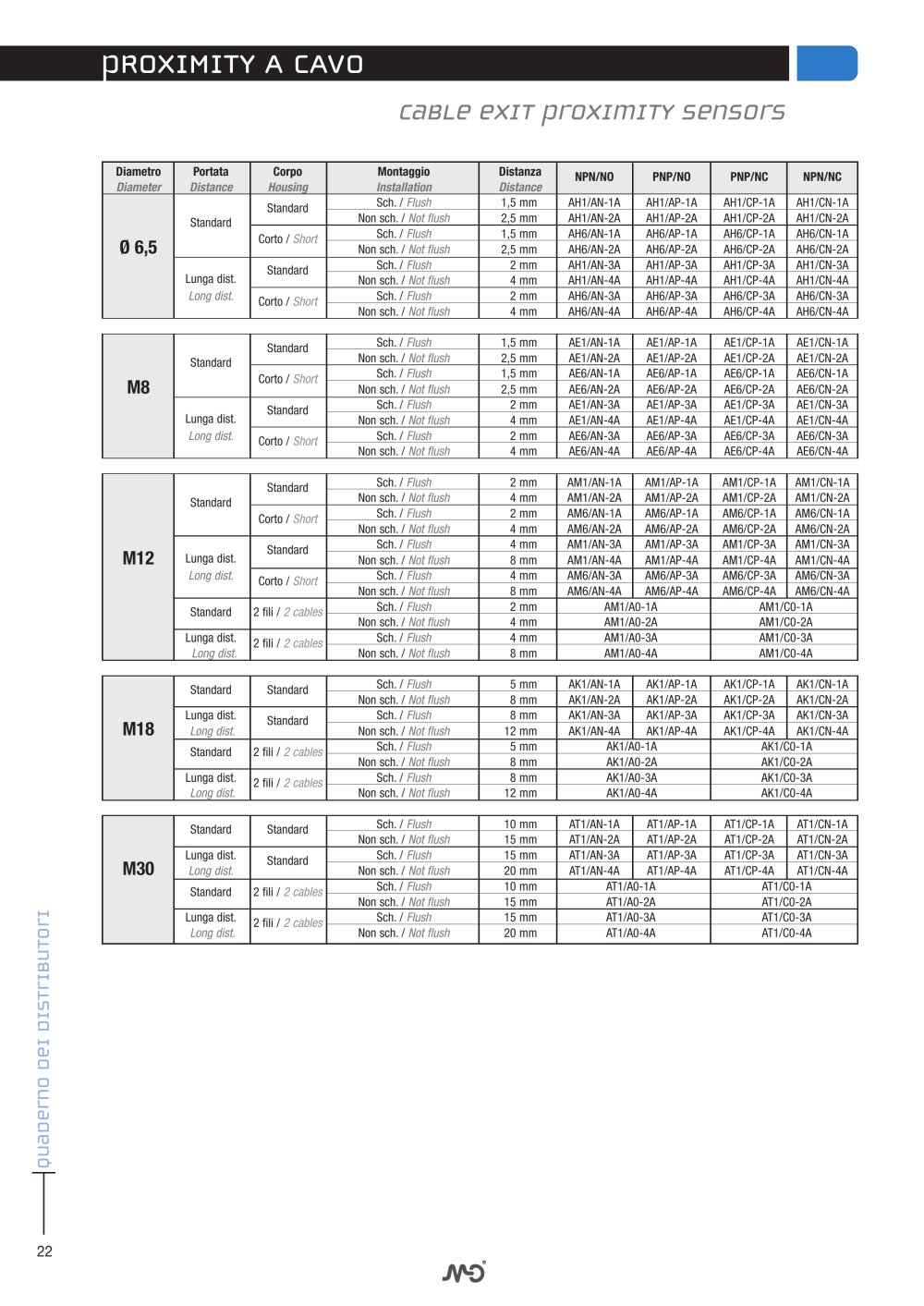

3ROXIMITY A CAVO


Diametro	Portata *Distance*	Corpo	Montaggio Installation	Distanza Distance	NPN/NO	PNP/NO	PNP/NC	NPN/NC
0 6,5	Standard	Standard	Sch./ Flush	1,5 mm	AH1/AN-1A	AH1/AP-1A	AH1/CP-1A	AH1/CN-1A
		Standard	Non sch. / Not flush	2,5 mm	AH1/AN-2A	AH1/AP-2A	AH1/CP-2A	AH1/CN-2A
		Corto / Short	Sch. / Flush	1,5 mm	AH6/AN-1A	AH6/AP-1A	AH6/CP-1A	AH6/CN-1A
		Corto / Short	Non sch. / Not flush	2,5 mm	AH6/AN-2A	AH6/AP-2A	AH6/CP-2A	AH6/CN-2A
	Lunga dist. Long dist.	Standard	Sch./ Flush	2 mm	AH1/AN-3A	AH1/AP-3A	AH1/CP-3A	AH1/CN-3A
		Standard	Non sch. / Not flush	4 mm	AH1/AN-4A	AH1/AP-4A	AH1/CP-4A	AH1/CN-4A
		Corto / Short	Sch./ Flush	2 mm	AH6/AN-3A	AH6/AP-3A	AH6/CP-3A	AH6/CN-3A
		Corto / Short	Non sch. / Not flush	4 mm	AH6/AN-4A	AH6/AP-4A	AH6/CP-4A	AH6/CN-4A

M8	Standard	Standard	Sch./Flush	1,5 mm	AE1/AN-1A	AE1/AP-1A	AE1/CP-1A	AE1/CN-1A
		Standard	Non sch. / Not flush	2,5 mm	AE1/AN-2A	AE1/AP-2A	AE1/CP-2A	AE1/CN-2A
		Corto / Short	Sch./ Flush	1,5 mm	AE6/AN-1A	AE6/AP-1A	AE6/CP-1A	AE6/CN-1A
		Corto / Short	Non sch. / Not flush	2,5 mm	AE6/AN-2A	AE6/AP-2A	AE6/CP-2A	AE6/CN-2A
	Lunga dist. Long dist.	Standard	Sch./ Flush	2 mm	AE1/AN-3A	AE1/AP-3A	AE1/CP-3A	AE1/CN-3A
		Standard	Non sch. / Not flush	4 mm	AE1/AN-4A	AE1/AP-4A	AE1/CP-4A	AE1/CN-4A
		Corto / Short	Sch./ Flush	2 mm	AE6/AN-3A	AE6/AP-3A	AE6/CP-3A	AE6/CN-3A
		Corto / Short	Non sch. / Not flush	4 mm	AE6/AN-4A	AE6/AP-4A	AE6/CP-4A	AE6/CN-4A

M12	Standard	Standard	Sch. / Flush	2 mm	AM1/AN-1A	AM1/AP-1A	AM1/CP-1A	AM1/CN-1A
		Standard	Non sch. / Not flush	4 mm	AM1/AN-2A	AM1/AP-2A	AM1/CP-2A	AM1/CN-2A
		Corto / Short	Sch. / Flush	2 mm	AM6/AN-1A	AM6/AP-1A	AM6/CP-1A	AM6/CN-1A
		Corto / Short	Non sch. / Not flush	4 mm	AM6/AN-2A	AM6/AP-2A	AM6/CP-2A	AM6/CN-2A
	Lunga dist. Long dist.	Standard	Sch. / Flush	4 mm	AM1/AN-3A	AM1/AP-3A	AM1/CP-3A	AM1/CN-3A
		Standard	Non sch. / Not flush	8 mm	AM1/AN-4A	AM1/AP-4A	AM1/CP-4A	AM1/CN-4A
		Corto / Short	Sch. / Flush	4 mm	AM6/AN-3A	AM6/AP-3A	AM6/CP-3A	AM6/CN-3A
		Corto / Short	Non sch. / Not flush	8 mm	AM6/AN-4A	AM6/AP-4A	AM6/CP-4A	AM6/CN-4A
	Standard	2 fili / 2 cables	Sch. / Flush	2 mm	AM1/A0-1A		AM1/C0-1A
	Standard	2 fili / 2 cables	Non sch. /Not flush	4 mm	AM1/A0-2A		AM1/C0-2A
	Lunga dist. Long dist.	2 fili / 2 cables	Sch. / Flush	4 mm	AM1/A0-3A		AM1/C0-3A
	Lunga dist. Long dist.	2 fili / 2 cables	Non sch. / Not flush	8 mm	AM1/A0-4A		AM1/C0-4A

M18	Standard	Standard	Sch. / Flush	5 mm	AK1/AN-1A	AK1/AP-1A	AK1/CP-1A	AK1/CN-1A
	Standard	Standard	Non sch. / Not flush	8 mm	AK1/AN-2A	AK1/AP-2A	AK1/CP-2A	AK1/CN-2A
	Lunga dist. ^Long ^dist	Standard	Sch. / Flush	8 mm	AK1/AN-3A	AK1/AP-3A	AK1/CP-3A	AK1/CN-3A
	Lunga dist. ^Long ^dist	Standard	Non sch. / Not flush	12 mm	AK1/AN-4A	AK1/AP-4A	AK1/CP-4A	AK1/CN-4A
	Standard	2 fili / 2 cables	Sch. / Flush	5 mm	AK1/A0-1A		AK1/C0-1A
	Standard	2 fili / 2 cables	Non sch. / Not flush	8 mm	AK1/A0-2A		AK1/C0-2A
	Lunga dist. Long dist.	2 fili / 2 cables	Sch. / Flush	8 mm	AK1/A0-3A		AK1/C0-3A
	Lunga dist. Long dist.	2 fili / 2 cables	Non sch. / Not flush	12 mm	AK1/A0-4A		AK1/C0-4A

M30	Standard	Standard	Sch. / Flush	10 mm	AT1/AN-1A	AT1/AP-1A	AT1/CP-1A	AT1/CN-1A
	Standard	Standard	Non sch. / Not flush	15 mm	AT1/AN-2A	AT1/AP-2A	AT1/CP-2A	AT1/CN-2A
	Lunga dist. Long dist.	Standard	Sch. / Flush	15 mm	AT1/AN-3A	AT1/AP-3A	AT1/CP-3A	AT1/CN-3A
	Lunga dist. Long dist.	Standard	Non sch. / Not flush	20 mm	AT1/AN-4A	AT1/AP-4A	AT1/CP-4A	AT1/CN-4A
	Standard	2 fili / 2 cables	Sch. / Flush	10 mm	AT1/A0-1A		AT1/C0-1A
	Standard	2 fili / 2 cables	Non sch. / Not flush	15 mm	AT1/A0-2A		AT1/C0-2A
	Lunga dist. Long distt.	2 fili / 2 cables	Sch. / Flush	15 mm	AT1/A0-3A		AT1/C0-3A
	Lunga dist. Long distt.	2 fili / 2 cables	Non sch. / Not flush	20 mm	AT1/A0-4A		AT1/C0-4A
