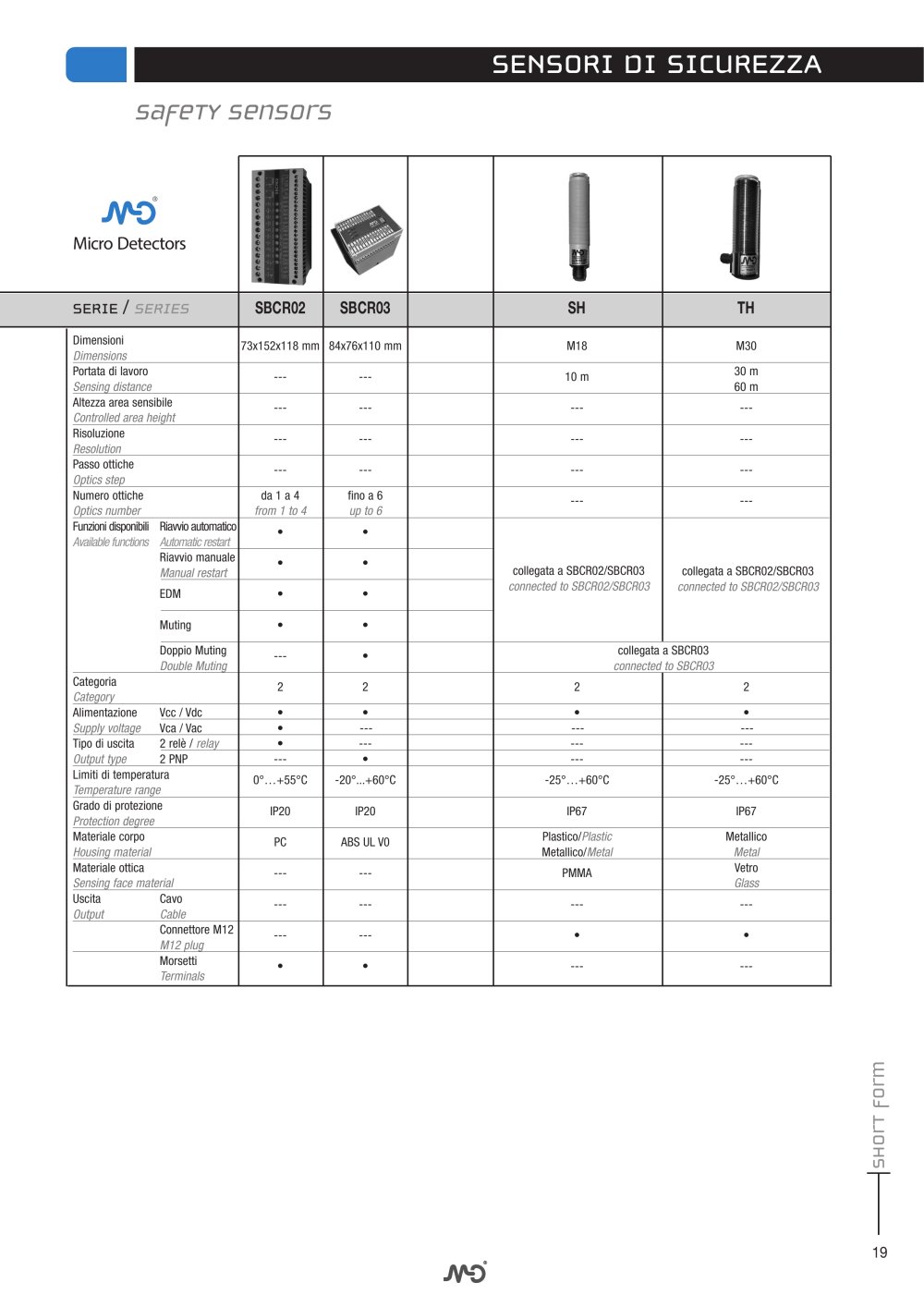

SENSORI DI SICUREZZA


® Micro Detectors			1	J
SERIE / SERIES	SBCR02	SBCR03	SH	TH
Dimensioni Dimensions	73x152x118 mm	84x76x110 mm	M18	M30
Portata di lavoro Sensing distance	---	---	10 m	30 m 60 m
Altezza area sensibile Controlled area height	---	---	---	---
Risoluzione Resolution	—	---	---	---
Passo ottiche Optics step	—	---	---	—
Numero ottiche Optics number	da 1 a 4 from 1 to 4	fino a 6 up to 6	---	—
Funzioni disponibili Riavvio automatico Avallable functions Automatic restart	•	_•	collegata a SBCR02/SBCR03 connected to SBCR02/SBCR03	collegata a SBCR02/SBCR03 connected to SBCR02/SBCR03
Riavvio manuale Manual restart	•	_•
EDM		_•
Muting		_•
Doppio Muting Double Muting	---	_•	collegata a SBCR03 connected to SBCR03
Categoria Category	2	2	2	2
Alimentazione Vcc / Vdc	_•	_•	_•	•
Supply voltage Vca / Vac	_•	_---	_---	_---
Tipo di uscita 2 relè / relay	_•	---	_---	---
Output type 2 PNP	---	_•	_---	---
Limiti di temperatura Temperature range	0°...+55°C	-20°...+60°C	-25°...+60°C	-25°...+60°C
Grado di protezione Protection degree	IP20	IP20	IP67	IP67
Materiale corpo Housing material	PC	ABS UL V0	Plastico/P/ast/c Metallico/Metal	Metallico Metal
Materiale ottica Sensing face material	---	---	PMMA	Vetro Glass
Uscita Cavo Output Cable	---	---	---	---
Connettore M12 M12 plug	---	---	_•	_•
Morsetti Terminals	_•	_•	---	---
