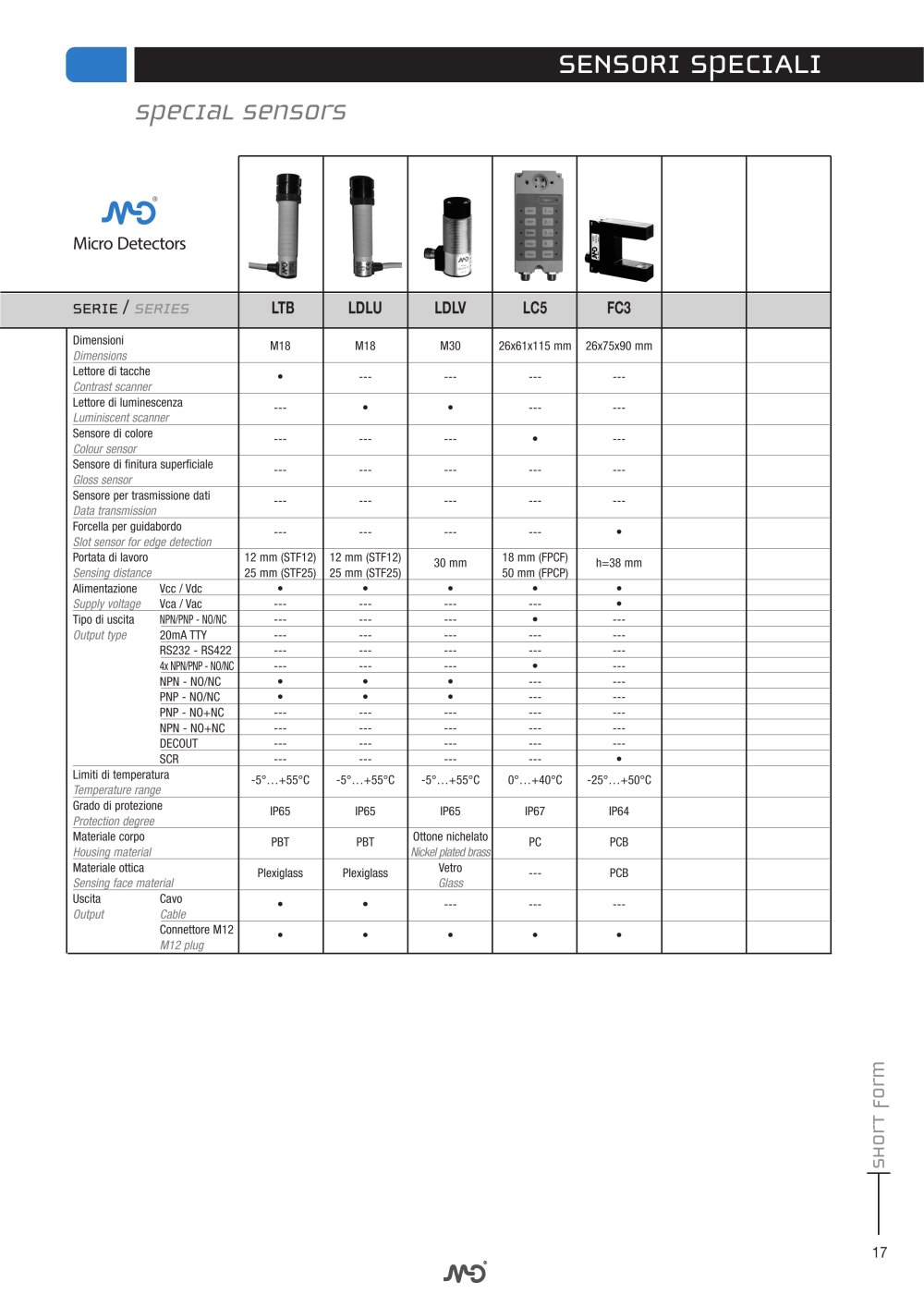

SENSORI SPECIALI


® JVK)	1	1	n	n
Micro Detectors	MB			41		C
SERIE / SERIES	LTB		LDLU	LDLV	LC5	FC3
Dimensioni Dimensions	M18		M18	M30	26x61x115 mm	26x75x90 mm
Lettore di tacche Contrast scanner	•		---	---	---	---
Lettore di luminescenza Luminiscent scanner	---		_•	_•	---	---
Sensore di colore Colour sensor	---		---	---	_•	---
Sensore di finitura superficiale Gloss sensor	---		---	---	---	---
Sensore per trasmissione dati Data transmission	---		---	---	---	---
Forcella per guidabordo Slot sensor for edge detection	---		---	---	---	_•
Portata di lavoro Sensing distance	12 mm (STF12) 25 mm (STF25)		12 mm (STF12) 25 mm (STF25)	30 mm	18 mm (FPCF) 50 mm (FPCP)	h=38 mm
Alimentazione Vcc / Vdc	_•		_•	_•	_•	_•
Supply voltage Vca / Vac	---		---	_---	---	_•
Tipo di uscita NPN/PNP - NO/NC	---		---	_---	_•	---
Output type 20mA TTY	---		---	---	_---	---
RS232 - RS422	---		---	---	_---	---
4x NPN/PNP - NO/NC	---		---	---	_•	---
NPN - NO/NC	_•		_•	_•	_---	---
PNP - NO/NC	_•		_•	_•	_---	---
PNP - NO+NC	---		---	---	_---	---
NPN -NO+NC	---		---	---	_---	---
DECOUT	---		---	---	_---	---
SCR	---		---	_---	_---	_•
Limiti di temperatura Temperature range	-5°...+55°C		-5°...+55°C	-5°...+55°C	0°...+40°C	-25°...+50°C
Grado di protezione Protection degree	IP65		IP65	IP65	IP67	IP64
Materiale corpo Housing material	PBT		PBT	Ottone nichelato Nickel plated brass	PC	PCB
Materiale ottica Sensing face material	Plexiglass		Plexiglass	Vetro Glass	---	PCB
Uscita Cavo Output Cable	_•		_•	---	---	---
Connettore M12 M12 pliig			_•	_•	_•	_•
