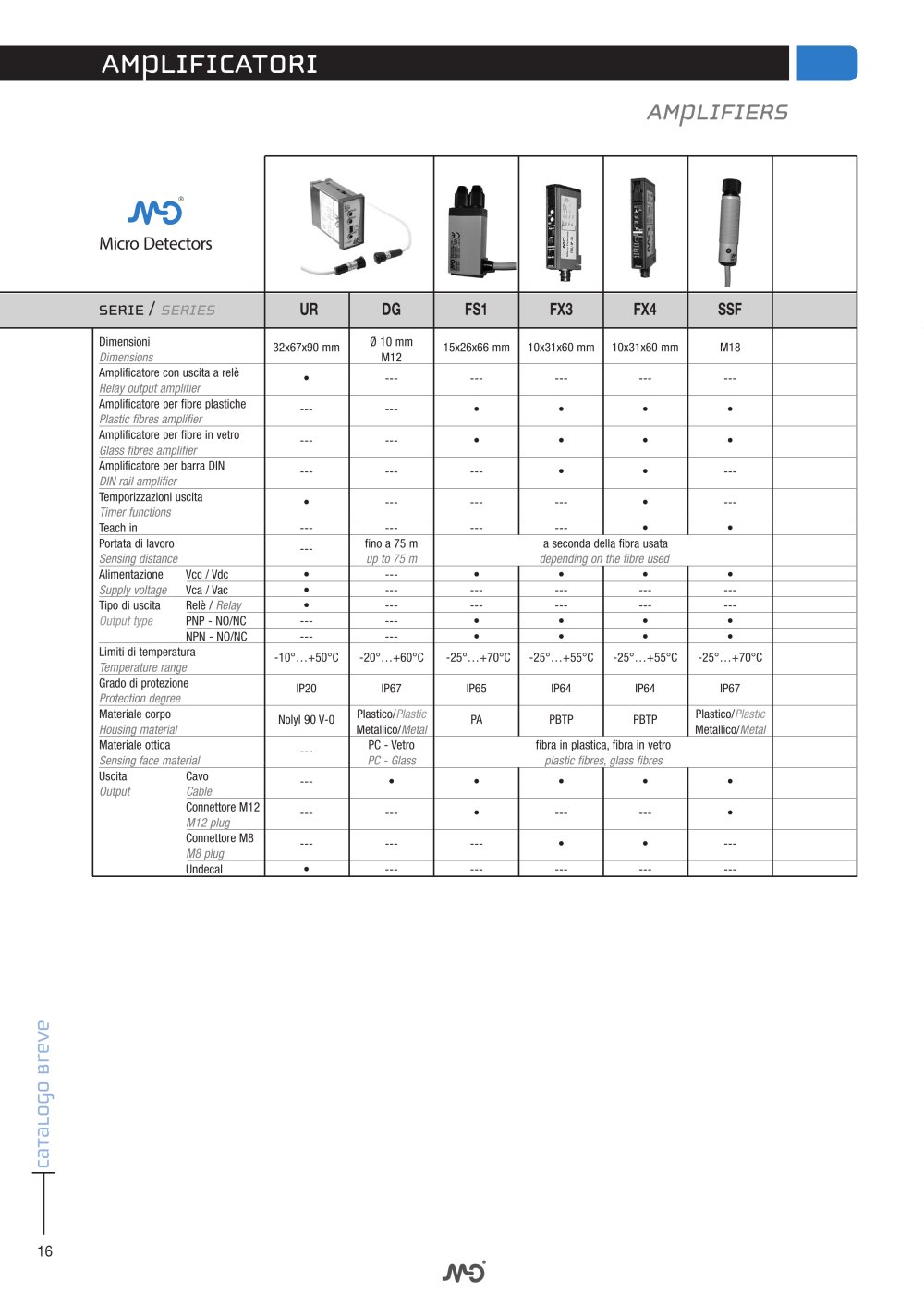

AMPLIFICATORI


® Micro Detectors	3u		1		1	1
SERIE / SERIES	UR	DG	FS1	FX3	FX4	SSF
Dimensioni Dimensions	32x67x90 mm	0 10 mm M12	15x26x66 mm	10x31x60 mm	10x31x60 mm	M18
Amplificatore con uscita a relè Relay output amplifier	•	---	---	---	---	---
Amplificatore per fibre plastiche Plastic fibres amplifier	---	---	_•	_•		_•
Amplificatore per fibre in vetro Glass fibres amplifier	---	---	_•	_•		_•
Amplificatore per barra DIN DIN rail amplifier	—	---	---	_•		---
Temporizzazioni uscita Timer functions	_•	---	---	---		---
Teach in	---	---	_---	---		_•
Portata di lavoro Sensing distance	---	fino a 75 m up to 75 m	a seconda della fibra usata depending on the fibre used
Alimentazione Vcc / Vdc	_•	---	_•	_•	_•	_•
Supply voltage Vca / Vac	_•	_---	_---	_---	---	---
Tipo di uscita Relè / Relay	_•	---	---	_---	---	---
Output type PNP - NO/NC	---	---	_•	_•	_•	_•
NPN - NO/NC	---	---	_•	_•	_•	_•
Limiti di temperatura Temperature range	-10°...+50°C	-20°...+60°C	-25°...+70°C	-25°...+55°C	-25°...+55°C	-25°...+70°C
Grado di protezione Protection degree	IP20	IP67	IP65	IP64	IP64	IP67
Materiale corpo Housing material	Nolyl 90 V-0	Plastico/P/ast/c Metallico/Meta/	PA	PBTP	PBTP	Plastico/P^stc Metallico/Metal
Materiale ottica Sensing face material	---	PC - Vetro PC - Glass	fibra in plastica, fibra in vetro plastic fibres, glass fibres
Uscita Cavo Output Cable	---	_•	_•	_•	_•	_•
Connettore M12 M12 plug	---	---	_•	—	—	_•
Connettore M8 M8 plug	---	---	---	_•	_•	---
Undecal	_•	---	—	—	---	---
