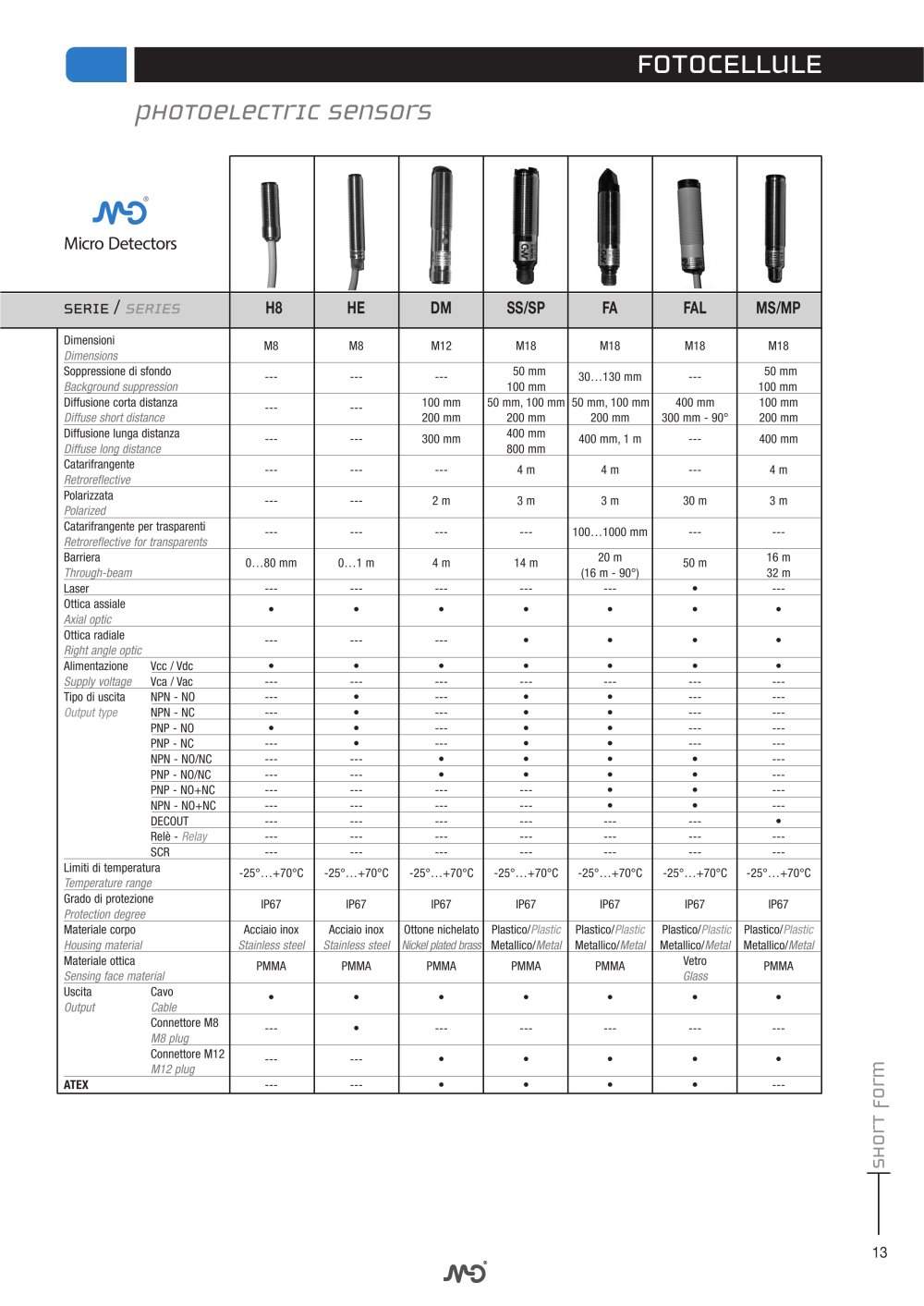

FOTOCELLULE
®
JVK)
Micro Detectors
II
1
1
il
1
1
J
1
SERIE / SERIES
H8
HE
DM
SS/SP
FA
FAL
MS/MP
Dimensioni Dimensions
M8
M8
M12
M18
M18
M18
M18
Soppressione di sfondo Background suppression
---
---
---
50 mm 100 mm
30.130 mm
---
50 mm 100 mm
Diffusione corta distanza Diffuse short distance
---
---
100 mm 200 mm
50 mm, 100 mm 200 mm
50 mm, 100 mm 200 mm
400 mm 300 mm - 90°
100 mm 200 mm
Diffusione lunga distanza Diffuse long distance
---
---
300 mm
400 mm 800 mm
400 mm, 1 m
---
400 mm
Catarifrangente
---
---
---
4 m
4 m
---
4 m
Polarizzata Polarized
---
---
2 m
3 m
3 m
30 m
3 m
Catarifrangente per trasparenti Retroreflective for transparents
---
---
---
---
100.1000 mm
---
---
Barriera Through-beam
0...80 mm
0.1 m
4 m
14 m
20 m (16 m - 90°)
50 m
16 m 32 m
Laser
---
---
---
---
---
•
---
Ottica assiale Axial optic
•
•
•
•
•
•
•
Ottica radiale Right angle optic
---
---
---
•
•
•
•
Alimentazione Vcc / Vdc
•
•
•
•
•
•
•
Supply voltage Vca / Vac
---
---
---
---
---
---
---
Tipo di uscita NPN - NO
---
•
---
•
•
---
---
Output type NPN - NC
---
•
---
•
•
---
---
PNP - NO
•
•
---
•
•
---
---
PNP - NC
---
•
---
•
•
---
---
NPN - NO/NC
---
---
•
•
•
•
---
PNP - NO/NC
---
---
•
•
•
•
---
PNP - NO+NC
---
---
---
---
•
•
---
NPN - NO+NC
---
---
---
---
•
•
---
DECOUT
---
---
---
---
---
---
•
Relè - Relay
---
---
---
---
---
---
---
SCR
---
---
---
---
---
---
---
Limiti di temperatura Temperature range
-25°...+70°C
-25°...+70°C
-25°...+70°C
-25°...+70°C
-25°.+70°C
-25°.+70°C
-25°.+70°C
Grado di protezione Protection degree
IP67
IP67
IP67
IP67
IP67
IP67
IP67
Materiale corpo Housing material
Acciaio inox Stainless steel
Acciaio inox Stainless steel
Ottone nichelato Nickel plated brass
Plastico/Plastic Metallico/Metal
Plastico/Plastic Metallico/Metal
Plastico/Plastic Metallico/Metal
Plastico/Plastic Metallico/Metal
Materiale ottica Sensing face material
PMMA
PMMA
PMMA
PMMA
PMMA
Vetro Glass
PMMA
Uscita Cavo Output Cable
•
•
•
•
•
•
•
Connettore M8 M8 plug
---
•
---
---
---
---
---
Connettore M12 M12 plug
---
---
•
•
•
•
•
ATEX
---
---
•
•
•
•
---
13
