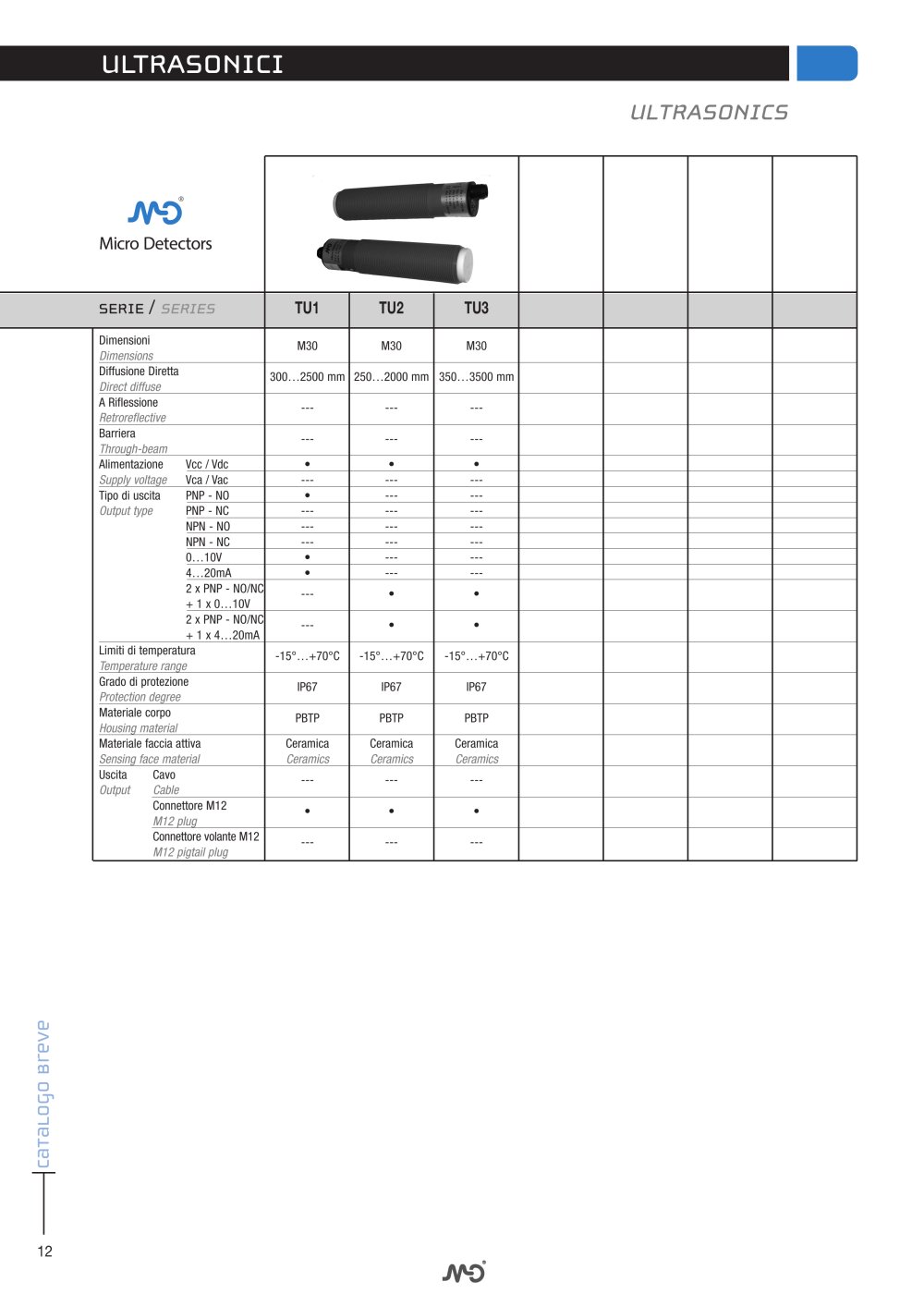

ULTRASONICI


® MO Micro Detectors	ST
SERIE / SERIES	TU1	TU2	TU3
Dimensioni	M30	M30	M30
Diffusione Diretta Direct diffuse	300...2500 mm	250.2000 mm	350.3500 mm
A Riflessione Retroreflective	---	---	---
Barriera Through-beam	---	---	---
Alimentazione Vcc / Vdc	•	_•	_•
Supply voltage Vca / Vac	---	---	_---
Tipo di uscita PNP - NO	_•	---	---
Output type PNP - NC	_---	---	---
NPN - NO	---	---	---
NPN - NC	---	---	---
0...10V	_•	---	---
4...20mA	_•	_---	_---
2 x PNP - NO/NC + 1 x 0...10V	---	_•	_•
2 x PNP - NO/NC + 1 x 4...20mA	---	_•	_•
Limiti di temperatura Temperature range	-15°...+70°C	-15°...+70°C	-15°...+70°C
Grado di protezione Protection degree	IP67	IP67	IP67
Materiale corpo Housing material	PBTP	PBTP	PBTP
Materiale faccia attiva Sensing face material	Ceramica Ceramics	Ceramica Ceramics	Ceramica Ceramics
Uscita Cavo Output Cable	---	---	---
Connettore M12 M12 plug	_•	_•	_•
Connettore volante M12 M12 pigtail plug	---	---	---
