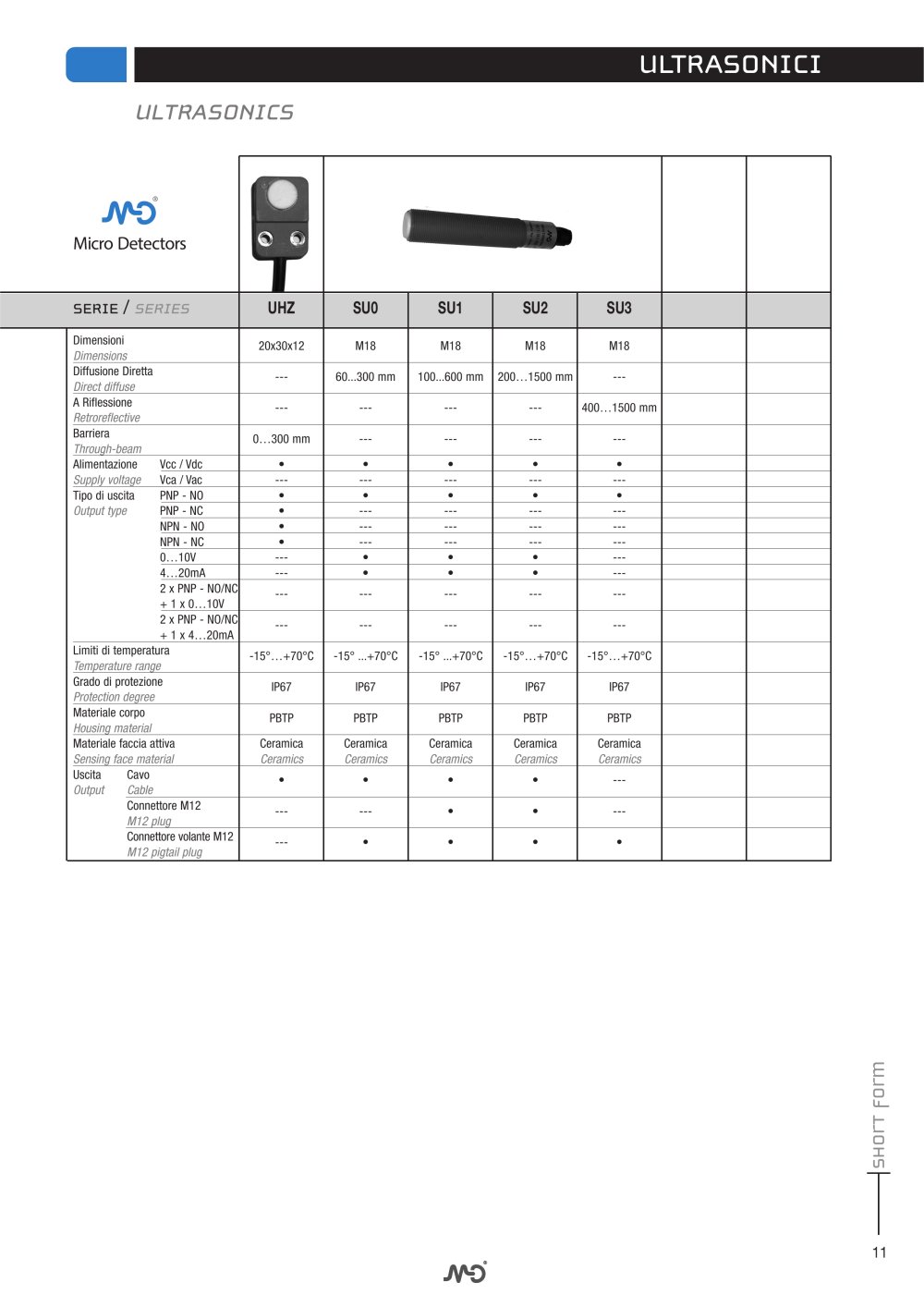

ULTRASONICI


® MO Micro Detectors	y	—-
SERIE / SERIES	UHZ	SUO	SUI	SU2	SU3
Dimensioni	20x30x12	M18	M18	M18	M18
Diffusione Diretta Direct diffuse	---	60...300 mm	100...600 mm	200.1500 mm	---
A Riflessione Retroreflective	---	---	---	---	400.1500 mm
Barriera Through-beam	0.300 mm	---	---	---	---
Alimentazione Vcc / Vdc	•	_•	_•	_•	_•
Supply voltage Vca / Vac	---	---	_---	_---	---
Tipo di uscita PNP - NO	_•	_•	_•	_•	_•
Output type PNP - NC		_---	---	_---	---
NPN - NO	_•	---	---	_---	---
NPN - NC	_•	---	---	_---	---
0...10V	---	_•	_•	_•	---
4...20mA	---	_•	•	•	_---
2 x PNP - NO/NC + 1 x 0...10V	---	---	---	---	---
2 x PNP - NO/NC + 1 x 4...20mA	---	---	---	---	---
Limiti di temperatura Temperature range	-15°...+70°C	-15° ...+70°C	-15° ...+70°C	-15°.+70°C	-15°.+70°C
Grado di protezione Protection degree	IP67	IP67	IP67	IP67	IP67
Materiale corpo Housing material	PBTP	PBTP	PBTP	PBTP	PBTP
Materiale faccia attiva Sensing face material	Ceramica Ceramics	Ceramica Ceramics	Ceramica Ceramics	Ceramica Ceramics	Ceramica Ceramics
Uscita Cavo Output Cable	_•	_•	_•	_•	---
Connettore M12 M12 plug	---	---	_•	_•	---
Connettore volante M12 M12 pigtail plug	---	_•	_•	_•	_•
