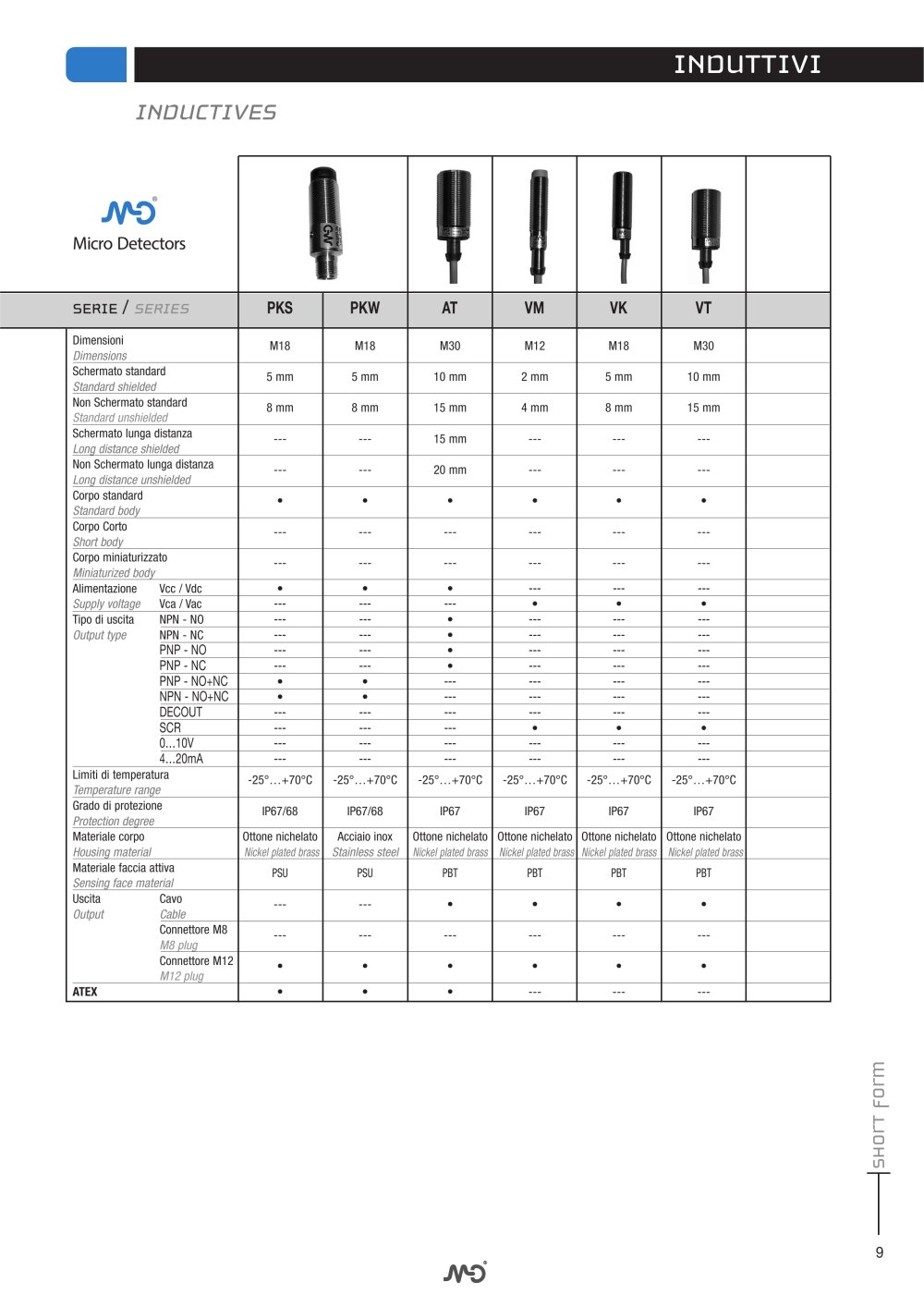

INDUTTIVI



® JVK) Micro Detectors			f	\|		f

SERIE / SERIES	PKS	PKW	AT	VM	VK VK	VT
Dimensioni	M18	M18	M30	M12	M18	M30
Schermato standard Standard shielded	5 mm	5 mm	10 mm	2 mm	5 mm	10 mm
Non Schermato standard Standard unshielded	8 mm	8 mm	15 mm	4 mm	8 mm	15 mm
Schermato lunga distanza Long distance shielded	---	---	15 mm	---	---	---
Non Schermato lunga distanza Long distance unshielded	---	---	20 mm	---	---	---
Corpo standard Standard body	•	_•	_•	_•	_•	_•
Corpo Corto Short body	---	---	---	---	---	---
Corpo miniaturizzato Miniaturized body	---	---	---	---	---	---
Alimentazione Vcc / Vdc		_•	_•	—	—	—
Supply voltage Vca / Vac	---	---	_---	_•	_•	_•
Tipo di uscita NPN - NO	---	---	_•	—	---	---
Output type NPN - NC	---	---	_•	—	---	---
PNP - NO	---	_---	_•	_---	---	---
PNP-NC	---	---	_•	—	---	---
PNP - NO+NC	_•	_•	---	—	---	---
NPN - NO+NC	_•	_•	---	_---	---	---
DECOUT	---	---	---	—	---	---
SCR	---	---	---	_•	_•	_•
0...10V	---	---	---	_---	---	---
4...20mA	---	---	---	—	---	---
Limiti di temperatura Temperature range	-25°...+70°C	-25°...+70°C	-25°...+70°C	-25°...+70°C	-25°...+70°C	-25°...+70°C
Grado di protezione Protection degree	IP67/68	IP67/68	IP67	IP67	IP67	IP67
Materiale corpo Housing material	Ottone nichelato Nickel plated brass	Acciaio inox Stainless steel	Ottone nichelato Nickel plated brass	Ottone nichelato Nickel plated brass	Ottone nichelato Nickel plated brass	Ottone nichelato Nickel plated brass
Materiale faccia attiva Sensing face material	PSU	PSU	PBT	PBT	PBT	PBT
Uscita Cavo Output Cable	---	---	_•	_•	_•	_•
Connettore M8 M8 plug	---	---	---	---	---	---
Connettore M12 M12 plug	•	_•	_•	_•	_•	_•
ATEX	_•	_•	_•	---	---	---
