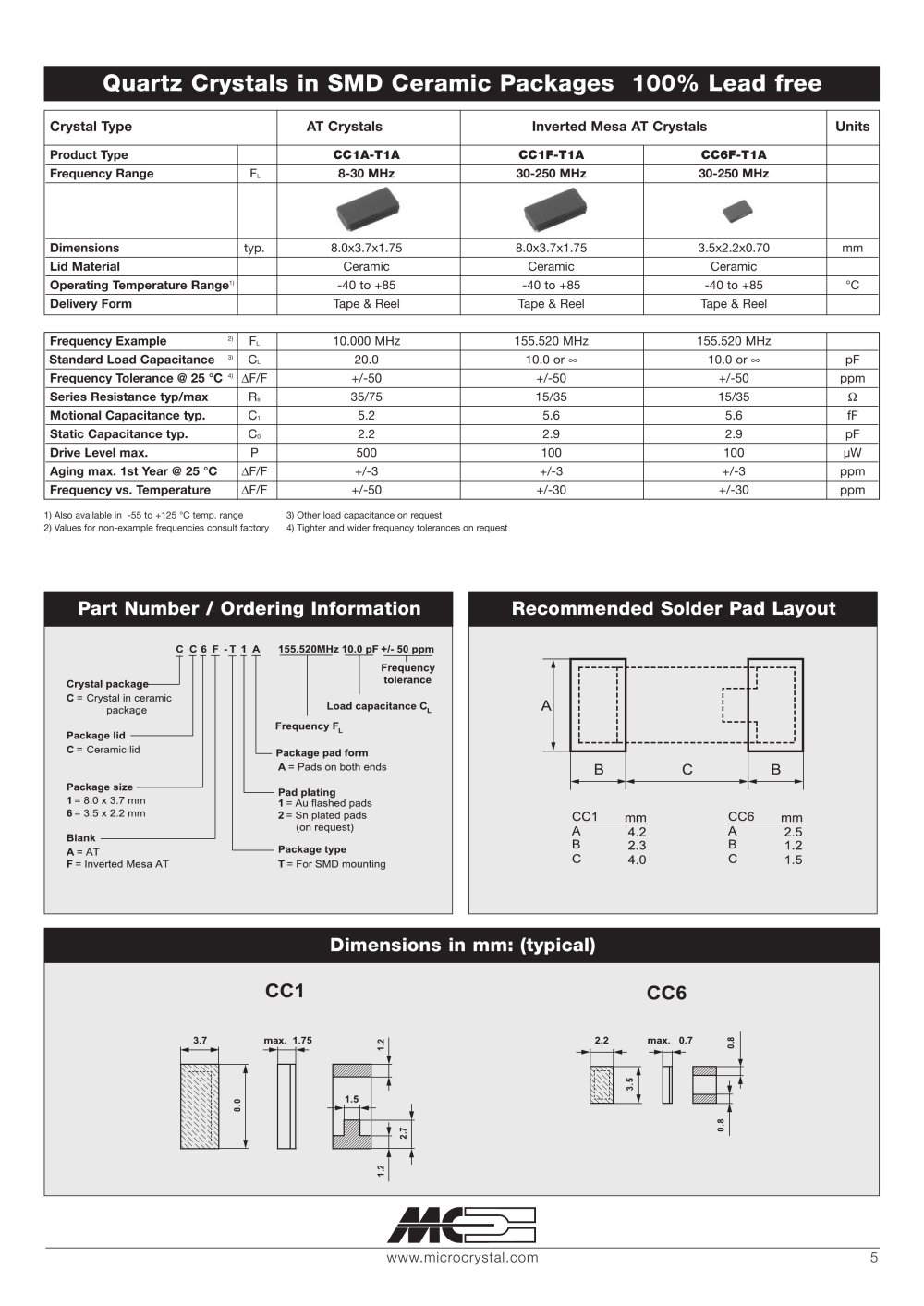

Quartz Crystals in SMD Ceramic Packages 100% Lead free

Crystal Type AT Crystals Inverted Mesa AT CrystalsUnits

Product Type CC1A-T1ACC1F-T1A CC6F-T1A Frequency Range F
L 8-30 MHz30-250 MHz30-250 MHz Dimensions typ.8.0x3.7x1.758.0x3.7x1.753.5x2.2x0.70mm Lid Material CeramicCeramicCeramic Operating Temperature Range
1) -40 to +85 -40 to +85-40 to +85°C Delivery Form Tape & ReelTape & ReelTape & Reel Frequency Example
2) F
L 10.000 MHz155.520 MHz155.520 MHz Standard Load Capacitance
3) C
L 20.010.0 or ∞ 10.0 or ∞ pF Frequency Tolerance @ 25 °C
4) ∆ F/F+/-50+/-50+/-50ppm Series Resistance typ/max R
s 35/7515/35 15/35 Ω Motional Capacitance typ. C
1 5.25.65.6fF Static Capacitance typ. C
2.22.92.9pF Drive Level max. P500100100µW Aging max. 1st Year @ 25 °C ∆ F/F+/-3+/-3+/-3ppm Frequency vs. Temperature ∆ F/F+/-50+/-30+/-30ppm
1) Also available in -55 to +125 °C temp. range3) Other load capacitance on request2)Values for non-example frequencies consult factory4) Tighter and wider frequency tolerances on request

Part Number / Ordering Information Recommended Solder Pad Layout Dimensions in mm: (typical)
