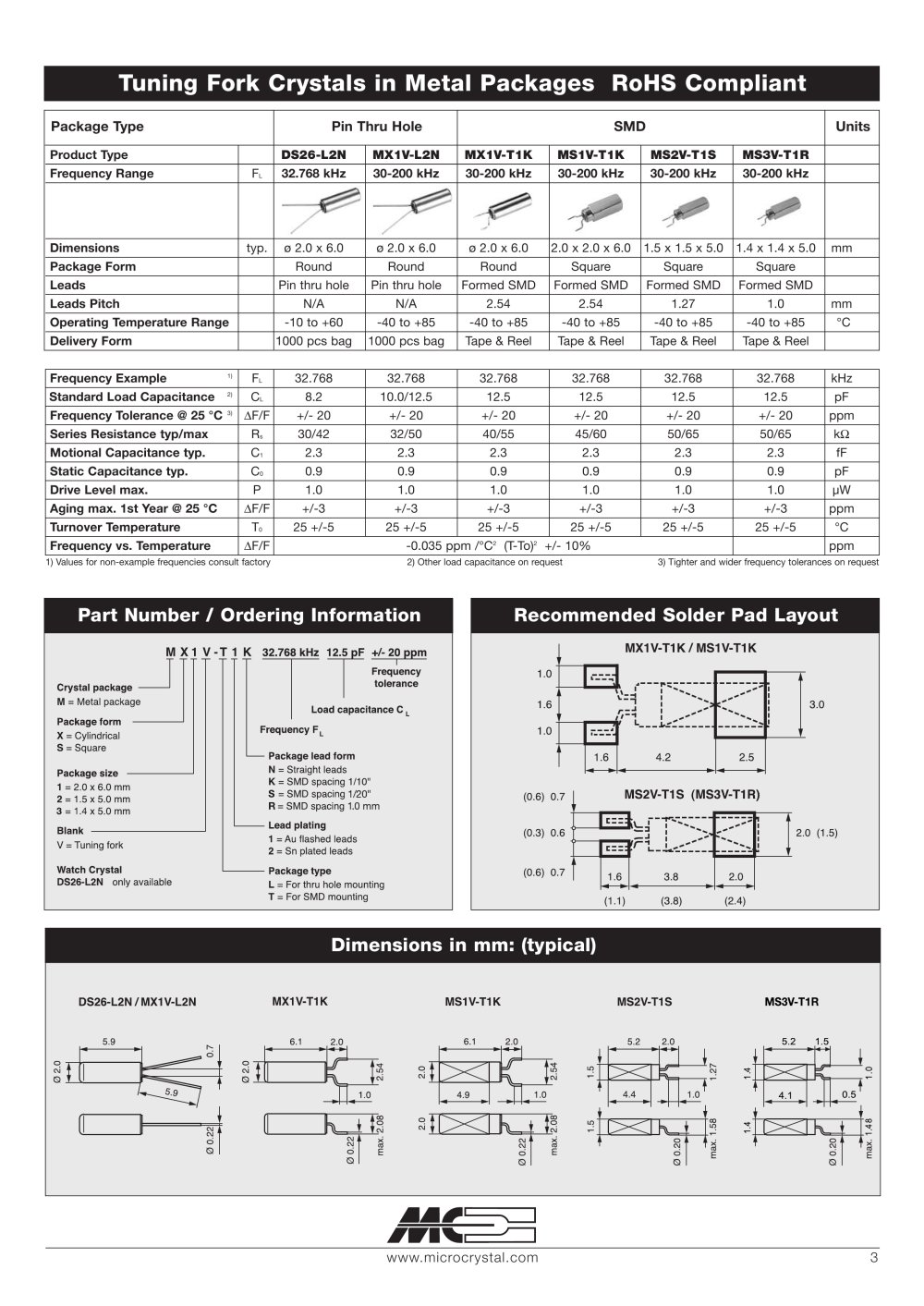

Tuning Fork Crystals in Metal Packages RoHS Compliant

Package TypePin Thru HoleSMDUnits

Product Type DS26-L2NMX1V-L2NMX1V-T1KMS1V-T1KMS2V-T1SMS3V-T1R Frequency Range F
L 32.768 kHz30-200 kHz30-200 kHz30-200 kHz30-200 kHz30-200 kHz Dimensions typ.ø 2.0 x 6.0ø 2.0 x 6.0ø 2.0 x 6.02.0 x 2.0 x 6.01.5 x 1.5 x 5.01.4 x 1.4 x 5.0mm Package Form RoundRoundRoundSquareSquareSquare Leads Pin thru hole Pin thru hole Formed SMD Formed SMD Formed SMD Formed SMD Leads Pitch N/AN/A2.542.541.271.0mm Operating Temperature Range -10 to +60-40 to +85-40 to +85-40 to +85-40 to +85-40 to +85°C Delivery Form 1000 pcs bag1000 pcs bagTape & ReelTape & ReelTape & ReelTape & Reel Frequency Example
1) F
L 32.76832.76832.76832.76832.76832.768kHz Standard Load Capacitance
2) C
L 8.210.0/12.512.512.512.512.5pF Frequency Tolerance @ 25 °C
3) ∆ F/F+/- 20+/- 20+/- 20+/- 20+/- 20+/- 20ppm Series Resistance typ/max R
s 30/4232/5040/5545/6050/6550/65k Ω Motional Capacitance typ. C
1 2.32.32.32.32.32.3fF Static Capacitance typ. C
0.90.90.90.90.90.9pF Drive Level max. P1.01.01.01.01.01.0µW Aging max. 1st Year @ 25 °C ∆ F/F+/-3+/-3+/-3+/-3+/-3+/-3ppm Turnover Temperature T
25 +/-525 +/-525 +/-525 +/-525 +/-525 +/-5°C Frequency vs. Temperature ∆ F/F-0.035 ppm /°C
2 (T-To)
2 +/- 10%ppm
1) Values for non-example frequencies consult factory2) Other load capacitance on request 3) Tighter and wider frequency tolerances on request

Part Number / Ordering Information Recommended Solder Pad Layout Dimensions in mm: (typical)
