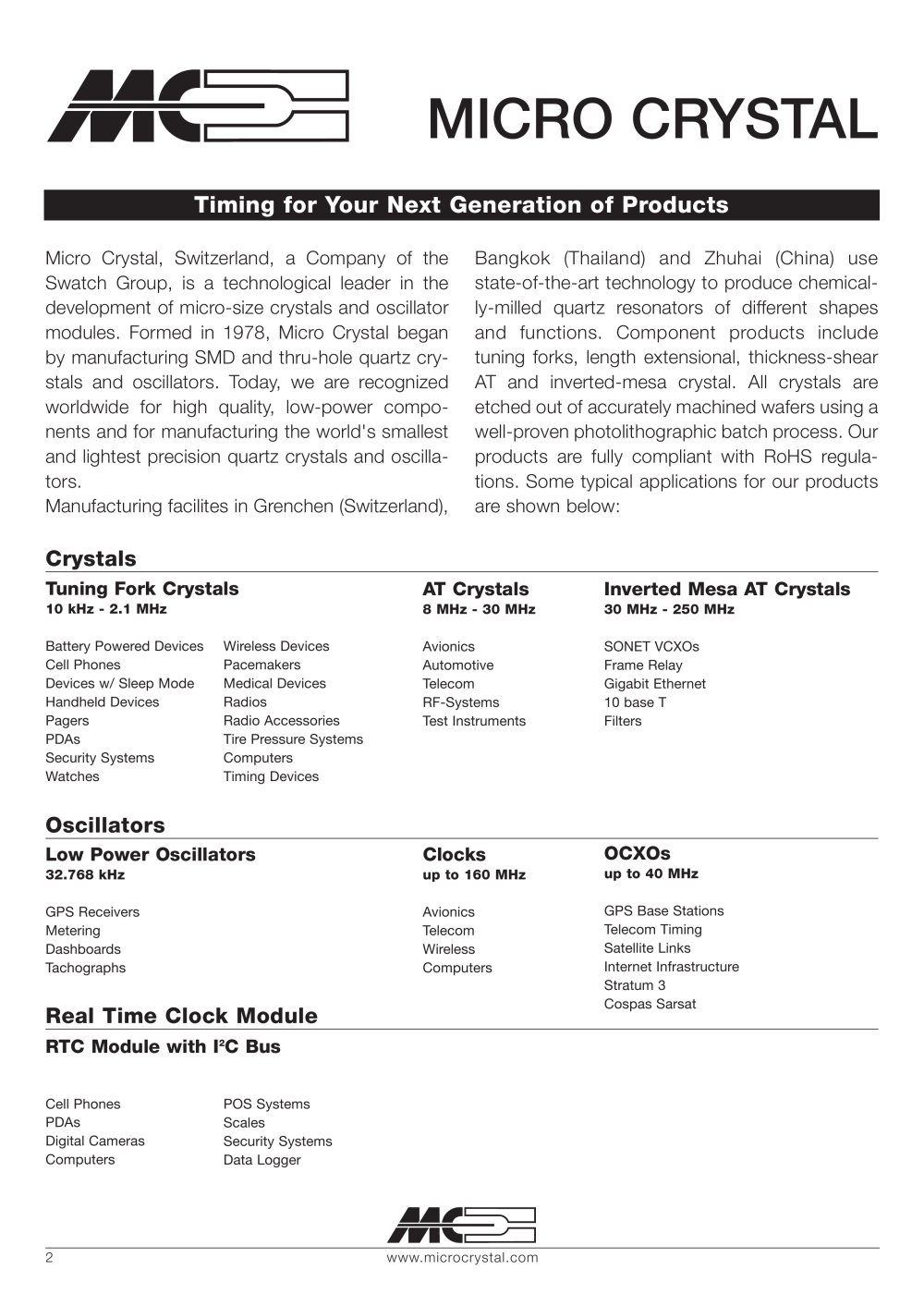

| | | AKX>H MICRO CRYSTAL
| | |
| | | |
| | | Timing for Your Next Generation of Products | | |
| | | |
| | | Micro Crystal, Switzerland, a Company of the Swatch Group, is a technological leader in the development of micro-size crystals and oscillator modules. Formed in 1978, Micro Crystal began by manufacturing SMD and thru-hole quartz crystals and oscillators. Today, we are recognized worldwide for high quality, low-power components and for manufacturing the world's smallest and lightest precision quartz crystals and oscillators. Manufacturing facilites in Grenchen (Switzerland), | | Bangkok (Thailand) and Zhuhai (China) use state-of-the-art technology to produce chemically-milled quartz resonators of different shapes and functions. Component products include tuning forks, length extensional, thickness-shear AT and inverted-mesa crystal. All crystals are etched out of accurately machined wafers using a well-proven photolithographic batch process. Our products are fully compliant with RoHS regulations. Some typical applications for our products are shown below: | | |
| | | |
| | | |
| | | Crystals_ Tuning Fork Crystals AT Crystals Inverted Mesa AT Crystals 10 kHz - 2.1 MHz 8 MHz - 30 MHz 30 MHz - 250 MHz | | |
| | | |
| | | Wireless Devices Pacemakers Medical Devices Radios Radio Accessories Industrial tire Pressure Systems Computers Timing Devices | | |
| | | Battery Powered Devices Cell Phones Devices w/ Sleep Mode Handheld Devices Pagers PDAs Security Systems Watches | | |
| | | Avionics Automotive Telecom RF-Systems Test Instruments | | SONET VCXOs Frame Relay Gigabit Ethernet 10 base T Filters | | |
| | | |
| | | |
| | | |
| | | Oscillators | | |
| | | |
| | | OCXOs up to 40 MHz GPS Base Stations Telecom Timing Satellite Links Internet Infrastructure Stratum 3 Cospas Sarsat | | |
| | | Low Power Oscillators 32.768 kHz GPS Receivers Metering Dashboards Tachographs Real Time Clock Module | | Clocks up to 160 MHz Avionics Telecom Wireless Computers | | |
| | | |
| | | |
| | | |
| | | RTC Module with I2C Bus | | |
| | | |
| | | Cell Phones PDAs | | POS Systems Scales | | |
| | | |
| | | |
| | | 2 www.microcrystal.com | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
