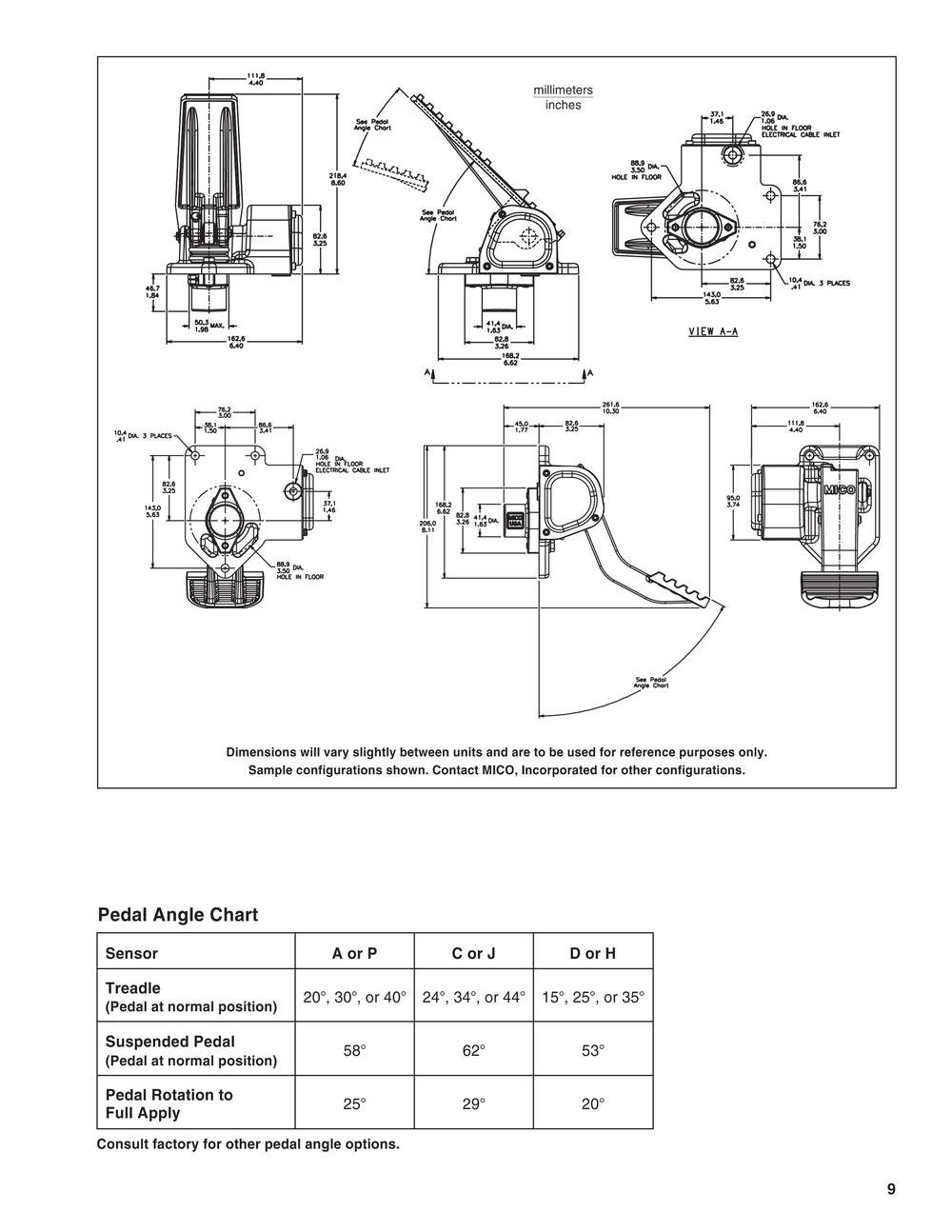

Pedal Angle Chart


Sensor	A or P	C or J	D or H
Treadle {Pedal at normal position)	20°, 30", or 40"	24°, 34°, or 44"	15^s, 25°, or 35°
Suspended Pedal (Pedal at normal position}	58°	62^s	53^s
Pedal Rotation to Full Apply	25"	29^s	20°

Consult factory for other pedal angle options.
