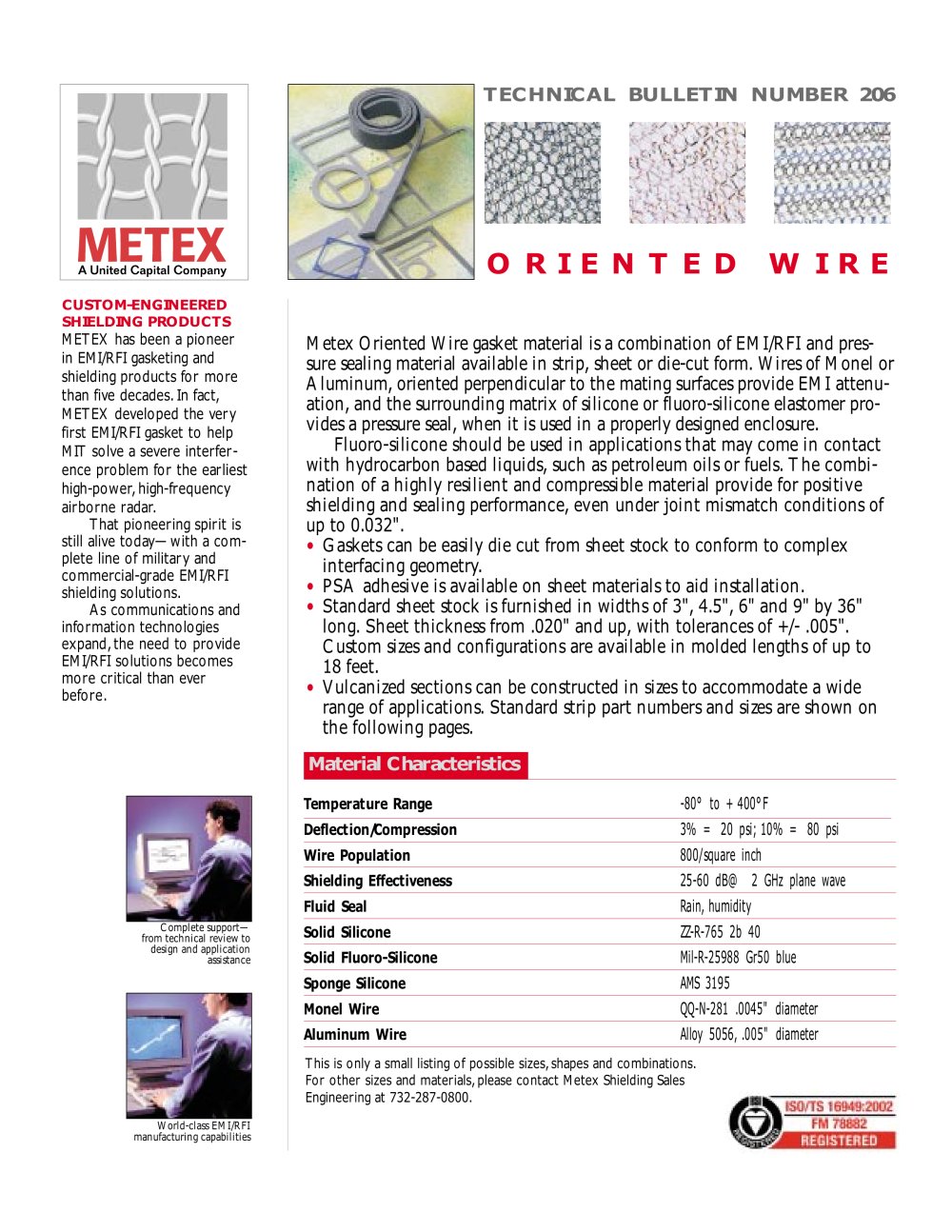

| TECHNICAL BULLETIN NUMBER 206 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| METEX A United Capital Company | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ORIENTED WIRE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CUSTOM-ENGINEERED SHIELDING PRODUCTS METEX has been a pioneer in EMI/RFI gasketing and shielding products for more than five decades. In fact, METEX developed the very first EMI/RFI gasket to help MIT solve a severe interference problem for the earliest high-power, high-frequency airborne radar. That pioneering spirit is still alive today—with a complete line of military and commercial-grade EMI/RFI shielding solutions. As communications and information technologies expand, the need to provide EMI/RFI solutions becomes more critical than ever before. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Metex Oriented Wire gasket material is a combination of EMI/RFI and pressure sealing material available in strip, sheet or die-cut form. Wires of Monel or Aluminum, oriented perpendicular to the mating surfaces provide EMI attenuation, and the surrounding matrix of silicone or fluoro-silicone elastomer provides a pressure seal, when it is used in a properly deagned enclosure. Fluoro-silicone should be used in applications that may come in contact with hydrocarbon based liquids, such as petroleum oils or fuels. The combination of a highly resilient and compressible material provide for positive shielding and sealing performance, even under joint mismatch conditions of up to 0.032". • Gaskets can be easily die cut from sheet stock to conform to complex interfacing geometry. • PSA adheave is available on sheet materials to aid installation. • Standard sheet stock is furnished in widths of 3", 4.5", 6" and 9" by 36" long. Sheet thickness from .020" and up, with tolerances of +/ .005". Custom azes and configurations are available in molded lengths of up to 18 feet. • Vulcanized sections can be constructed in azes to accommodate a wide range of applications. Standard strip part numbers and azes are shown on the following pages. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material Characteristics | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Complete support— from technical review to design and application assistance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| This is only a small listing of possible sizes, shapes and combinations. For other sizes and materials, please contact Metex Shielding Sales Engineering at 732-287-0800. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| World-class EMI/RFI manufacturing capabilities | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
