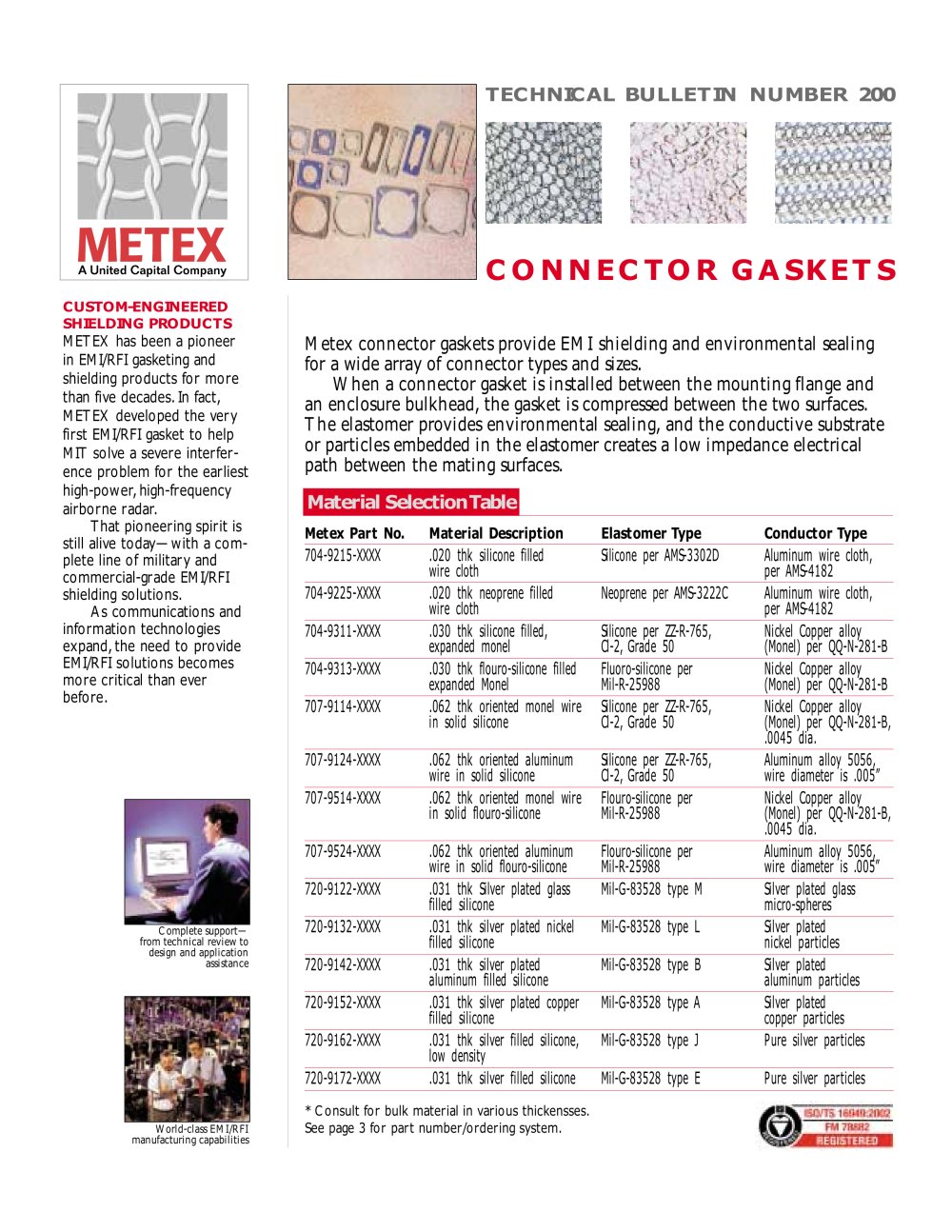

TECHNICAL BULLETIN NUMBER 200

METEX

A United Capital Company

CONNECTOR GASKETS

CUSTOM-ENGINEERED SHIELDING PRODUCTS METEX has been a pioneer in EMI/RFI çasketing and shielding products for more than five decades. In fact, METEX developed the very first EMI/RFI gasket to help MIT solve a severe interference problem for the earliest high-power, high-frequency airborne radar.

That pioneering spirit is still alive today—with a complete line of military and commercial-grade EMI/RFI shielding solutions.

As communications and information technologies expand, the need to provide EMI/RFI solutions becomes more critical than ever before.

Metex connector gaskets provide EMI shielding and environmental sealing for a wide array of connector types and sias.

When a connector gasket is installed between the mounting flange and an enclosure bulkhead, the gasket is compressed between the two surfaces. The elastomer provides environmental sealing, and the conductive substrate or particles embedded in the elastomer creates a low impedance electrical path between the mating surfaces.

Material Selection Table


Metex Part No.	Material Description	Elastomer Type	Conductor Type
704-9215-XXXX	.020 thk silicone filled wire doth	Allane pr AMS3302D	AurinuTi wire doth, pr AMS4182
704-9225XXXX	.020 thk neoprene filled wire doth	Necpenepr AMS3222C	Alurinuri wire doth, pr AMS4182
704-9311-XXXX	.030 thk silicone filled expanded mone	Sllcone per ZR765, 0-2, G-ade 50	Ncke Copper alloy (Monel) per QQ-N281-B
704-9313-XXXX	.030 thk fkoro-slicone filled expanded Mone	Fluoro-slllccne per Ml-R-25988	Ncke Copper alloy (Monel) per QQ-N281-B
707-9114-XXXX	.062 thk oriented mone wire in solid silicone	Slicone per ZR765, Cl-2, Grade 50	Ncke Copper alloy (MreOjPer QQ-N-281-B
707-9124-XXXX	.062 thk oriented aluminum wire in solid silicone	Sllcone per Z-R765, 0-2, Grade 50	Alurinuri alloy 5056, wire dareter is .005"
707-9514-XXXX	.062 thk oriented monel wire in solid fkoroslicone	Haro-Sllcone per Mll-R-25988	Ncke Copper alloy (Monel) pr QQ-N281-B .0045 dia.
707-9524-XXXX	.062 thk oriented airrimm wire in solid flouro-silicone	FFouro-slllcone per Ml-R-25988	£1^111™ alloy 5056, wire darneter is .005"
720-9122-XXXX	.031 thk Slver plated gass filled silicone	Mll-G-83528 type M	Silver plated gass rricospheres
720-9132-XXXX	.031 thk silver plated ncke filled silicone	Ml-G-83528 type L	Slver plated ncke particles
720-9142-XXXX	.031 thk silver plated aluminum filled silicone	Mll-G-83528 type B	Slver plated aluтinum particles
720-9152-XXXX	.031 thk silver plated copper filled silicone	Mll-G-83528 type A	Silver plated copper particles
720-9162-XXXX	.031 thk silver filled silicone, lowdensty	Mll-G-83528 type J	Rre silver particles
720-9172-XXXX	.031 thk silver filled silicone	Mll-G-83528 type E	Rre silver particles

Complete support— from technical review to design and application assistance

* Consult for bulk material in various thickensses See page 3 for part number/ordering system.

World-class EMI/RFI manufacturing capabilities
