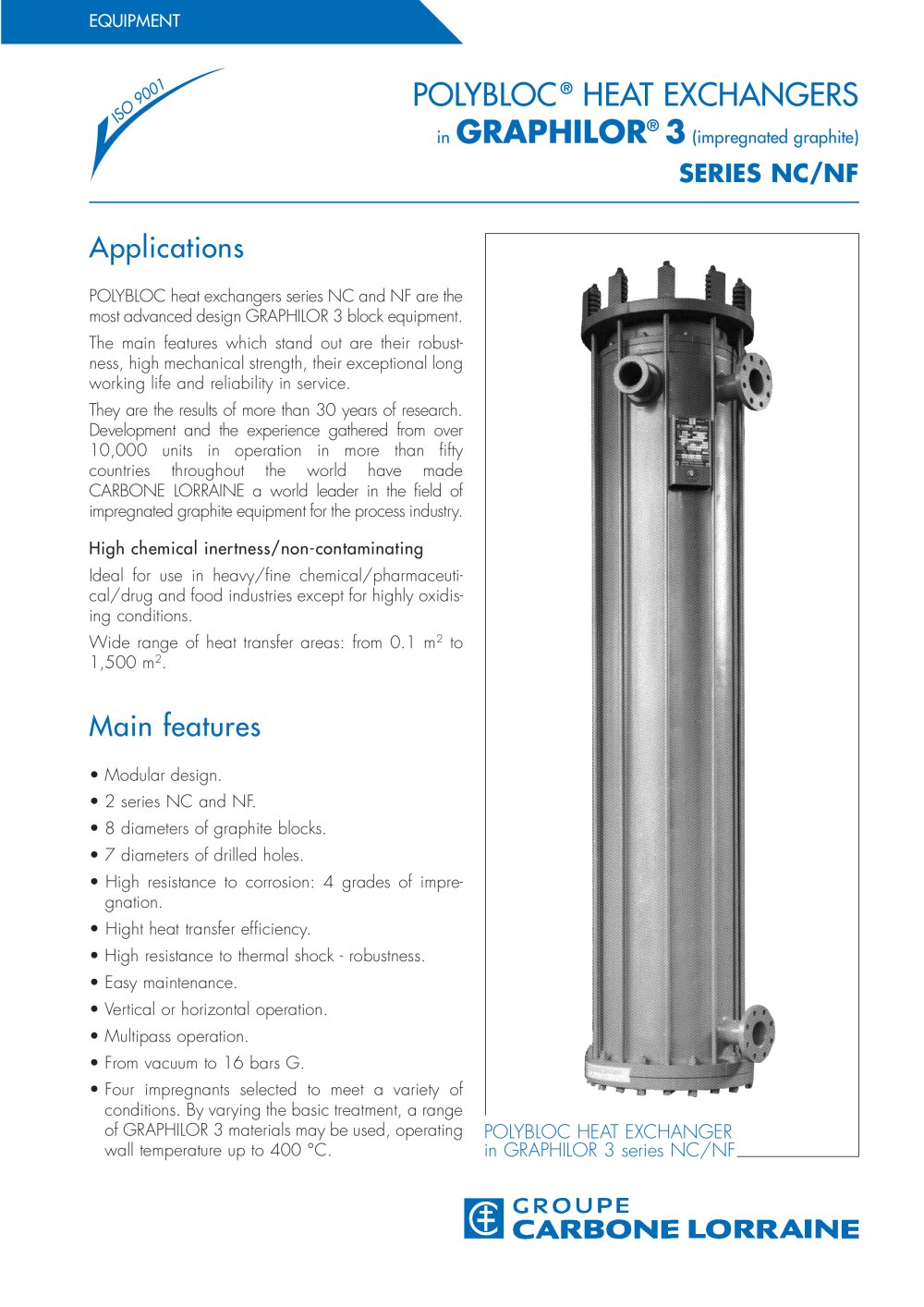

POLYBLOC heat exchangers series NC and NF are themost advanced design GRAPHILOR3 block equipment.The main features which stand out are their robust-ness, high mechanical strength, their exceptional long working life and reliability in service.They are the results of more than 30years ofresearch.Development and the experience gathered from over 10,000 units in operation in more than fifty countries throughout the world have made CARBONELORRAINE a world leader in the field of impregnated graphite equipment for the process industry. High chemical inertness/non-contaminating Ideal for use in heavy/fine chemical/pharmaceuti-cal/drug and food industries except for highly oxidis- ing conditions.Wide range of heat transfer areas: from 0.1m > 2 to1,500m > 2 . > Modular design.Օ2 series NC and NF. 8 diameters of graphite blocks. Օ7 diameters of drilled holes. High resistance to corrosion: 4grades of impre-gnation.Օ Hight heat transfer efficiency. High resistance to thermal shock - robustness. ՕEasy maintenance. Vertical or horizontal operation. ՕMultipass operation. From vacuum to 16bars G. ՕFour impregnants selected to meet a variety ofconditions.By varying the basic treatment, a range of GRAPHILOR3 materials may be used, operating wall temperature up to 400C. >

Steel assemblyplateConnectionprocess sideSpringFlange forsliding gasketHeaderBlock Gasket Tie rod Heat exchange block Connectionsshell side (service) >

Possible areas (m > 2 )fromto TYPES NC or NF 100 0.810.2 NC or NF 200 1.2430.4 NC or NF 300 3.3470.8 NC or NF 400 6.3132.6 NC or NF 500 16.5268.4 NC or NF 600 14.3310.2 NC or NF 800 17.3473 >
