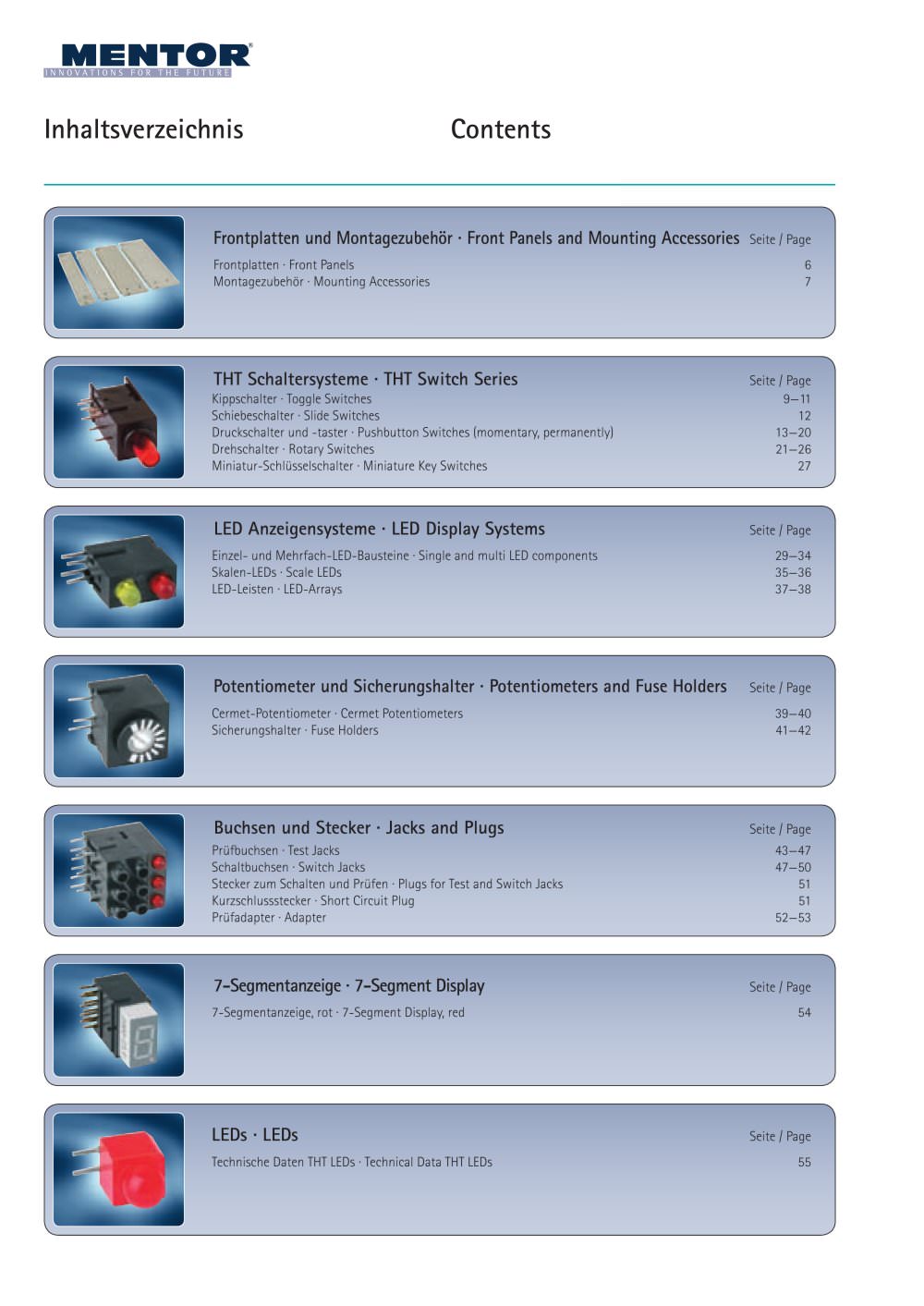

MENTOR ii;i,'i.v#ii».i'Mj.i»ii;i«iiinniT3 Inhaltsverzeichnis Contents Frontplatten und Montagezubehôr • Front Panels and Mounting Accessories Seite / Page Frontplatten • Front Panels Montagezubehôr • Mounting Accessories THT Schaltersysteme • THT Switch Series Kippschalter • Toggle Switches Schiebeschalter • Slide Switches Druckschalter und -taster • Pushbutton Switches (momentary, permanently) Drehschalter • Rotary Switches Miniatur-Schlusselschalter • Miniature Key Switches Seite / Page 9-11 12 13-20 21-26 27 LED Anzeigensysteme • LED Display Systems Einzel- und Mehrfach-LED-Bausteine • Single and multi LED components Skalen-LEDs • Scale LEDs LED-Leisten • LED-Arrays Seite / Page 29-34 35-36 37-38 Potentiometer und Sicherungshalter • Potentiometers and Fuse Holders Seite / Page Cermet-Potentiometer • Cermet Potentiometers Sicherungshalter • Fuse Holders 39-40 41-42 Buchsen und Stecker • Jacks and Plugs Prufbuchsen • Test Jacks Schaltbuchsen • Switch Jacks Stecker zum Schalten und Prufen • Plugs for Test and Switch Jacks Kurzschlussstecker • Short Circuit Plug Prufadapter • Adapter Seite / Page 43-47 47-50 51 51 52-53 7-Segmentanzeige • 7-Segment Display 7-Segmentanzeige, rot • 7-Segment Display, red Seite / Page 54 LEDs • LEDs Technische Daten THT LEDs • Technical Data THT LEDs Seite / Page 55 mi
