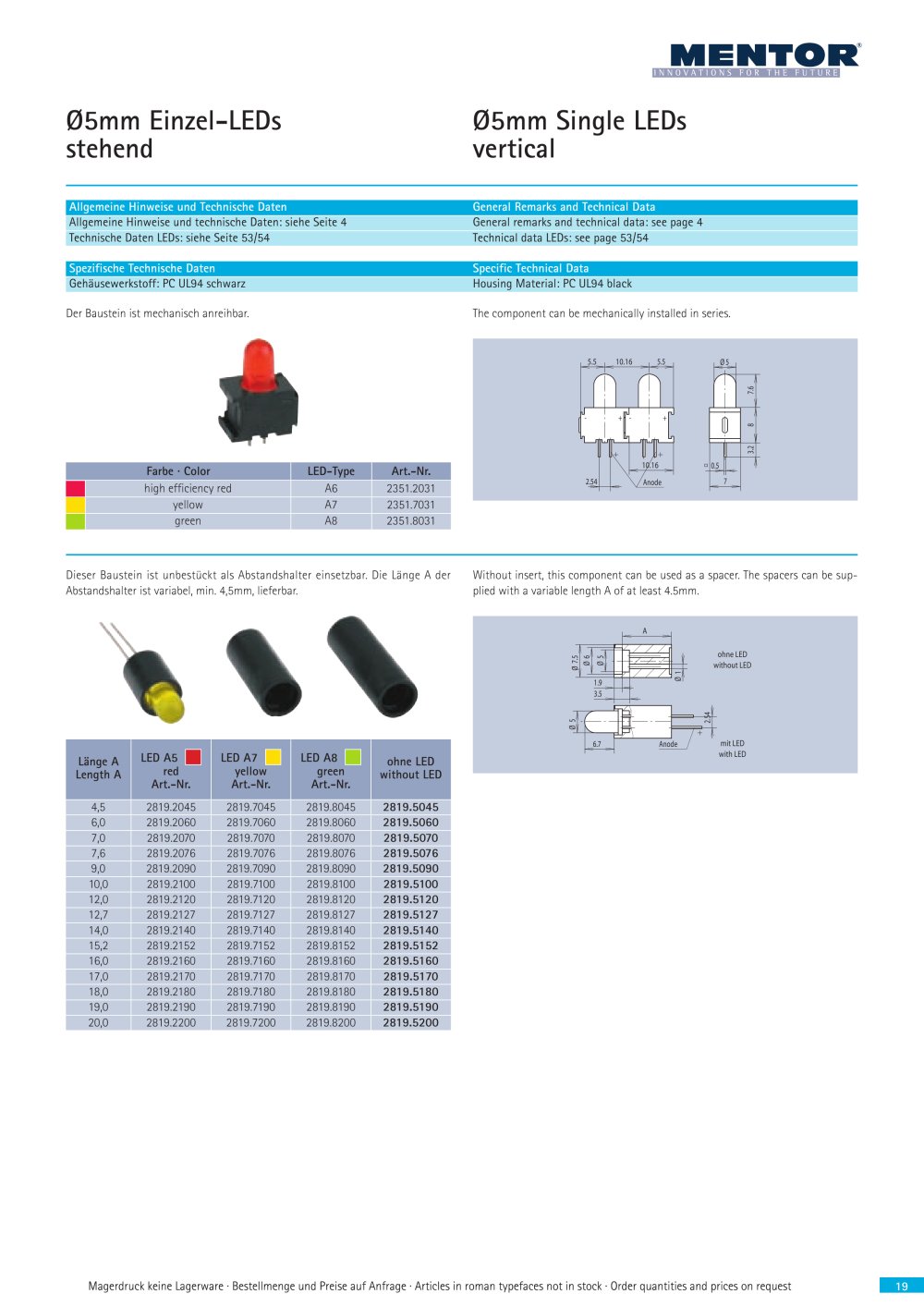

MENTOR 05mm Einzel-LEDs stehend 05mm Single LEDs vertical Allgemeine Hinweise und Technische Daten General Remarks and Technical Data Allgemeine Hinweise und technische Daten: siehe Seite 4 Technische Daten LEDs: siehe Seite 53/54 General remarks and technical data: see page 4 Technical data LEDs: see page 53/54 Spezifische Technische Daten Specific Technical Data Gehŕ'usewerkstoff: PC UL94 schwarz Der Baustein ist mechanisch anreihbar. Housing Material: PC UL94 black The component can be mechanically installed in séries. 5 . 5 i 10.16 i 5 . 5 Farbe • Color Art.-Nr. ■ high efficiency red A6 2351.2031 yellow A7 2351.7031 green A8 2351.8031 r 1 L - Dieser Baustein ist unbestůckt als Abstandshalter einsetzbar. Die Lange A der Abstandshalter ist variabel, min. 4,5mm, lieferbar. Without insert, this component can be used as a spacer. The spacers can be sup-plied with a variable length A of at least 4.5mm. Lange A Length A LED A5 ■ red Art.-Nr. LED A7 yellow Art.-Nr. LED A8 green Art.-Nr. ohne LED without LED 4,5 2819.2045 2819.7045 2819.8045 2819.5045 6,0 2819.2060 2819.7060 2819.8060 2819.5060 7,0 2819.2070 2819.7070 2819.8070 2819.5070 7,6 2819.2076 2819.7076 2819.8076 2819.5076 9,0 2819.2090 2819.7090 2819.8090 2819.5090 10,0 2819.2100 2819.7100 2819.8100 2819.5100 12,0 2819.2120 2819.7120 2819.8120 2819.5120 12,7 2819.2127 2819.7127 2819.8127 2819.5127 14,0 2819.2140 2819.7140 2819.8140 2819.5140 15,2 2819.2152 2819.7152 2819.8152 2819.5152 16,0 2819.2160 2819.7160 2819.8160 2819.5160 17,0 2819.2170 2819.7170 2819.8170 2819.5170 18,0 2819.2180 2819.7180 2819.8180 2819.5180 19,0 2819.2190 2819.7190 2819.8190 2819.5190 20,0 2819.2200 2819.7200 2819.8200 2819.5200 Magerdruck keine Lagerware • Bestellmenge und Preise auf Anfrage • Articles in roman typefaces not in stock • Order quantities and prices on request
