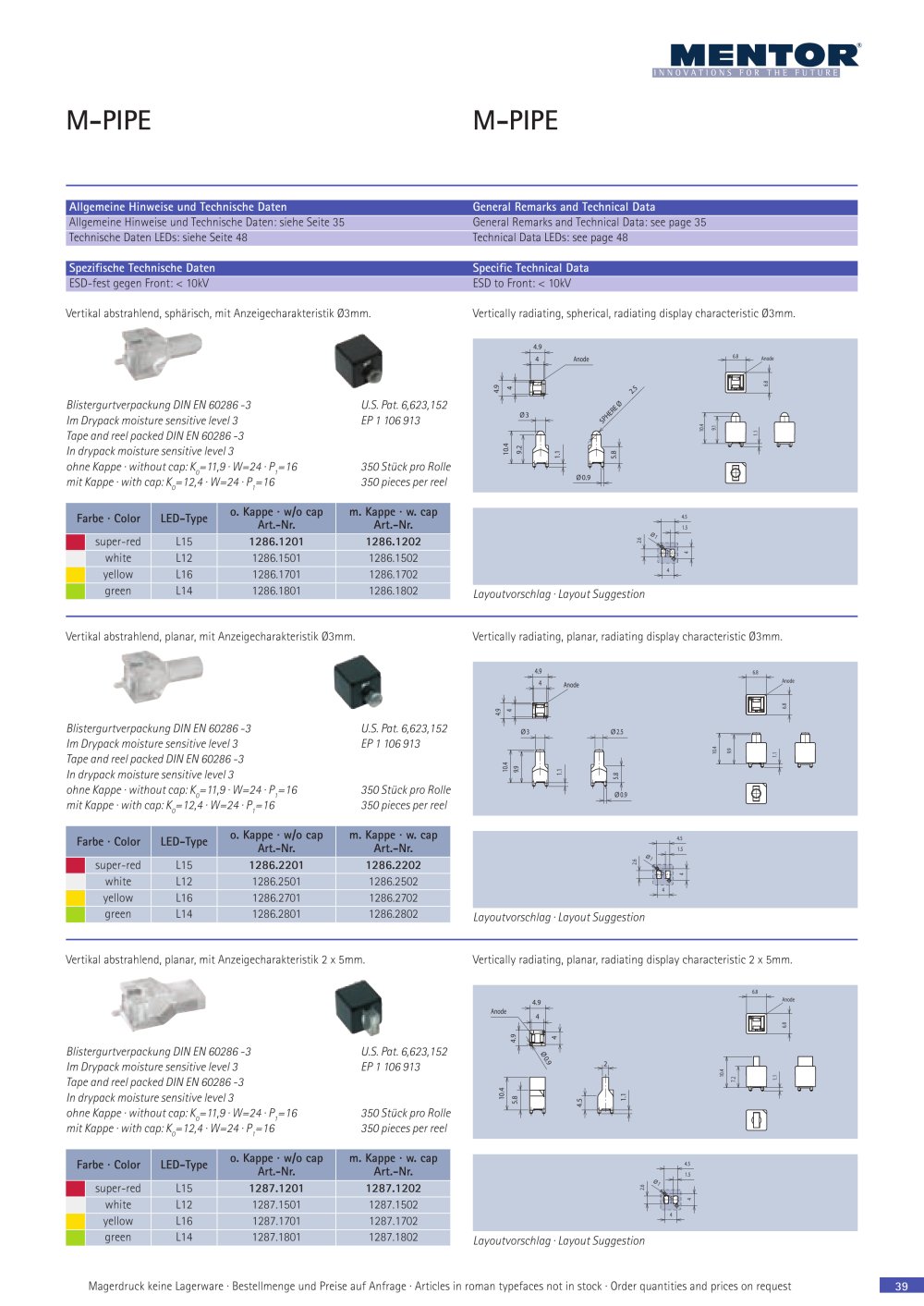

SMD11_Index_1_Cover_v1_cs5.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:2.65pt "Arial", sans-serif; } .font1 { font:4.00pt "Arial", sans-serif; } .font2 { font:5.00pt "Arial", sans-serif; } .font3 { font:6.00pt "Arial", sans-serif; } .font4 { font:7.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:22.00pt "Arial", sans-serif; } .font7 { font:26.00pt "Georgia", serif; } .font8 { font:4.00pt "Lucida Sans Unicode", sans-serif; } mentor M-PIPE M-PIPE Allgemeine Hinweise und Technische Daten General Remarks and Technical Data Allgemeine Hinweise und Technische Daten: siehe Seite 35 Technische Daten LEDs: siehe Seite 48 General Remarks and Technical Data: see page 35 Technical Data LEDs: see page 48 Spezifische Technische Daten Specific Technical Data ESD-fest gegen Front: < 10kV ESD to Front: < 10kV Vertikal abstrahlend, sphârisch, mit Anzeigecharakteristik 03mm. Vertically radiating, spherical, radiating display characteristic 03mm. 4.9 4 H Anode 68 Blistergurtverpackung DIN EN 60286 -3 Im Drypack moisture sensitive level 3 Tape and reel packed DIN EN 60286 -3 In drypack moisture sensitive level 3 ohne Kappe • without cap: K0=11,9 • W=24 • P = 16 mit Kappe • with cap: K0=12,4 • W=24 • P = 16 U.S. Pat. 6,623,152 EP 1 106 913 -m =1 350 Stűck pro Rolle 350 pieces per reel | super-red white LED-Type o. Kappe • w/o cap Art.-Nr. m. Kappe • w. cap Art.-Nr. L15 1286.1201 1286.1202 L12 1286.1501 1286.1502 L16 1286.1701 1286.1702 L14 1286.1801 1286.1802 yellow green Layoutvorschlag • Layout Suggestion Vertikal abstrahlend, planar, mit Anzeigecharakteristik 03mm. Vertically radiating, planar, radiating display characteristic 03mm. 4.9 Anode Anode Blistergurtverpackung DIN EN 60286 -3 Im Drypack moisture sensitive level 3 Tape and reel packed DIN EN 60286 -3 In drypack moisture sensitive level 3 ohne Kappe • without cap: K0=11,9 • W=24 • P = 16 mit Kappe • with cap: K0=12,4 • W=24 • P = 16 U.S. Pat. 6,623,152 EP 1 106 913 03 02.5 m 350 Stűck pro Rolle 350 pieces per reel 54 00.9 Farbe • Color LED-Type o. Kappe • w/o cap Art.-Nr. m. Kappe • w. cap Art.-Nr. ■ super-red L15 1286.2201 1286.2202 white L12 1286.2501 1286.2502 yellow L16 1286.2701 1286.2702 green L14 1286.2801 1286.2802 1.5 m ET Layoutvorschlag • Layout Suggestion Vertikal abstrahlend, planar, mit Anzeigecharakteristik 2 x 5mm. Vertically radiating, planar, radiating display characteristic 2 x 5mm. Anode 4.9 6.8 4 Blistergurtverpackung DIN EN 60286 -3 Im Drypack moisture sensitive level 3 Tape and reel packed DIN EN 60286 -3 In drypack moisture sensitive level 3 ohne Kappe • without cap: K0=11,9 • W=24 • P = 16 mit Kappe • with cap: K0=12,4 • W=24 • P = 16 U.S. Pat. 6,623,152 EP 1 106 913 —il 350 Stűck pro Rolle 350 pieces per reel Farbe • Color LED-Type o. Kappe • w/o cap Art.-Nr. m. Kappe • w.cap Art.-Nr. ■ super-red L15 1287.1201 1287.1202 white L12 1287.1501 1287.1502 yeHow L16 1287.1701 1287.1702 green L14 1287.1801 1287.1802 4.5 15 Ŕ -, t - ď H - 4^ Layoutvorschlag • Layout Suggestion Magerdruck keine Lagerware • Bestellmenge und Preise auf Anfrage • Articles in roman typefaces not in stock • Order quantities and prices on request 39
