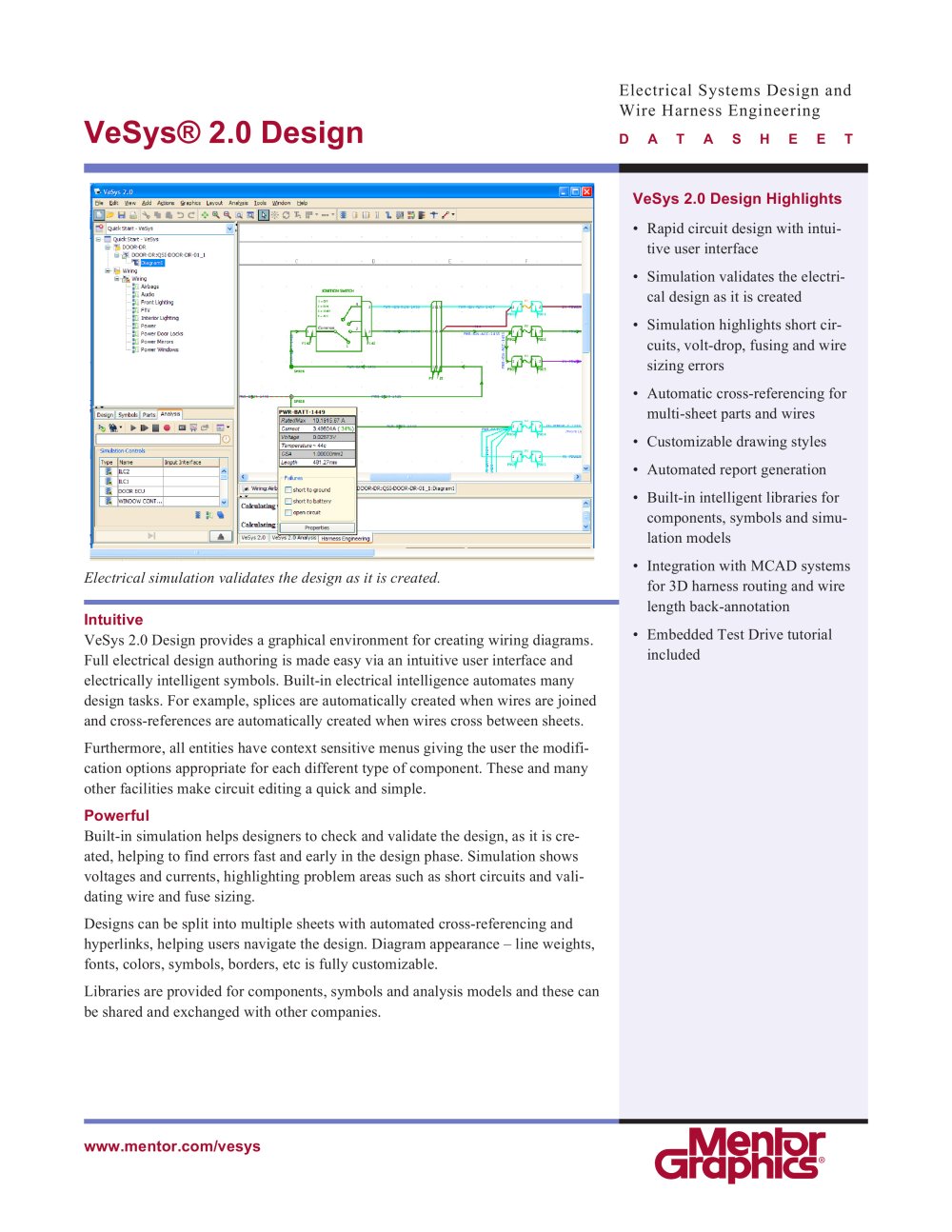

Electrical Systems Design and Wire Harness Engineering D A T A S H E E T www.mentor.com/vesys VeSys 2.0 Design Highlights • Rapid circuit design with intuitive user interface • Simulation validates the electrical design as it is created • Simulation highlights short circuits, volt-drop, fusing and wire sizing errors • Automatic cross-referencing for multi-sheet parts and wires • Customizable drawing styles • Automated report generation • Built-in intelligent libraries for components, symbols and simulation models • Integration with MCAD systems for 3D harness routing and wire length back-annotation • Embedded Test Drive tutorial included VeSys® 2.0 Design Intuitive VeSys 2.0 Design provides a graphical environment for creating wiring diagrams. Full electrical design authoring is made easy via an intuitive user interface and electrically intelligent symbols. Built-in electrical intelligence automates many design tasks. For example, splices are automatically created when wires are joined and cross-references are automatically created when wires cross between sheets. Furthermore, all entities have context sensitive menus giving the user the modification options appropriate for each different type of component. These and many other facilities make circuit editing a quick and simple. Powerful Built-in simulation helps designers to check and validate the design, as it is created, helping to find errors fast and early in the design phase. Simulation shows voltages and currents, highlighting problem areas such as short circuits and validating wire and fuse sizing. Designs can be split into multiple sheets with automated cross-referencing and hyperlinks, helping users navigate the design. Diagram appearance – line weights, fonts, colors, symbols, borders, etc is fully customizable. Libraries are provided for components, symbols and analysis models and these can be shared and exchanged with other companies. Electrical simulation validates the design as it is created.
