PCB Layout

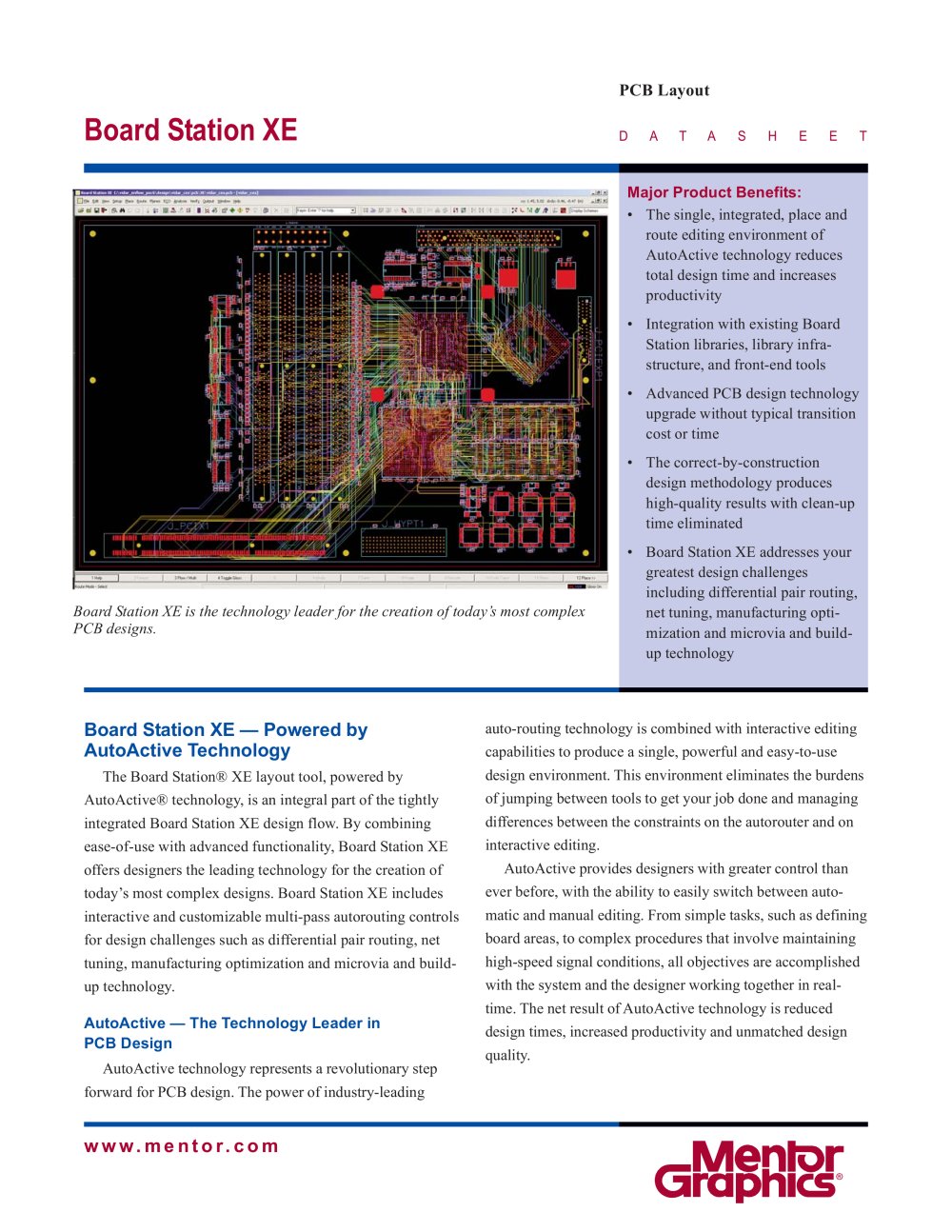

DATASHEET

^ star* s^nr

• Advanced PCB design technology upgrade without typical transition cost or time

^ xiss:.⁵^ ^your

^zln^m^ af/build-

auto-routing technology is combined with interactive editing capabilities to produce a single, powerful and easy-to-use design environment. This environment eliminates the burdens ofjumping between tools to get your job done and managing differences between the constraints on the autorouter and on interactive editing.

AutoActive provides designers with greater control than ever before, with the ability to easily switch between auto­matic and manual editing. From simple tasks, such as defining board areas, to complex procedures that involve maintaining high-speed signal conditions, all objectives are accomplished with the system and the designer working together in real­time. The net result of AutoActive technology is reduced design times, increased productivity and unmatched design quality.

The Board Station® XE layout tool, powered by AutoActive® technology, is an integral part of the tightly integrated Board Station XE design flow. By combining ease-of-use with advanced functionality, Board Station XE offers designers the leading technology for the creation of today's most complex designs. Board Station XE includes interactive and customizable multi-pass autorouting controls for design challenges such as differential pair routing, net tuning, manufacturing optimization and microvia and build­up technology.

AutoActive technology represents a revolutionary step forward for PCB design. The power of industry-leading
