MAJIC JTAG Probe
3Pages

{{requestButtons}}

Catalog excerpts

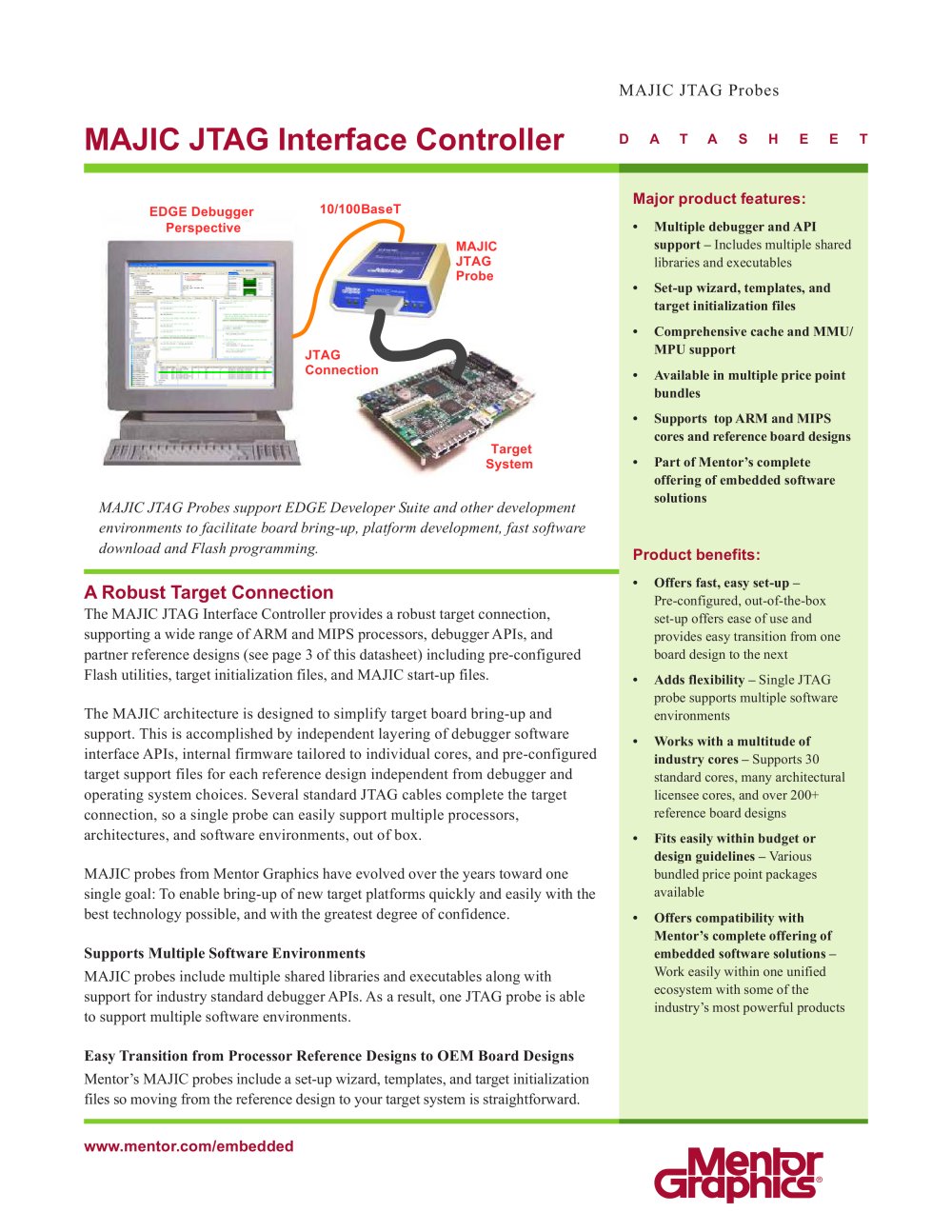

MAJIC JTAG Probe - 1

MAJIC JTAG Probes DATASHEET www.mentor.com/embedded Major product features: • Multiple debugger and API support – Includes multiple shared libraries and executables • Set-up wizard, templates, and target initialization files • Comprehensive cache and MMU/MPU support • Available in multiple price point bundles • Supports top ARM and MIPS cores and reference board designs • Part of Mentor’s complete offering of embedded software solutions Product benefits: • Offers fast, easy set-up – Pre-configured, out-of-the-box set-up offers ease of use and provides easy transition from one board design to the next • Adds flexibility – Single JTAG probe supports multiple software environments • Works with a multitude of industry cores – Supports 30 standard cores, many architectural licensee cores, and over 200+ reference board designs • Fits easily within budget or design guidelines – Various bundled price point packages available • Offers compatibility with Mentor’s complete offering of embedded software solutions – Work easily within one unified ecosystem with some of the industry’s most powerful products MAJIC JTAG Interface Controller A Robust Target Connection The MAJIC JTAG Interface Controller provides a robust target connection, supporting a wide range of ARM and MIPS processors, debugger APIs, and partner reference designs (see page 3 of this datasheet) including pre-configured Flash utilities, target initialization files, and MAJIC start-up files. The MAJIC architecture is designed to simplify target board bring-up and support. This is accomplished by independent layering of debugger software interface APIs, internal firmware tailored to individual cores, and pre-configured target support files for each reference design independent from debugger and operating system choices. Several standard JTAG cables complete the target connection, so a single probe can easily support multiple processors, architectures, and software environments, out of box. MAJIC probes from Mentor Graphics have evolved over the years toward one single goal: To enable bring-up of new target platforms quickly and easily with the best technology possible, and with the greatest degree of confidence. Supports Multiple Software Environments MAJIC probes include multiple shared libraries and executables along with support for industry standard debugger APIs. As a result, one JTAG probe is able to support multiple software environments. Easy Transition from Processor Reference Designs to OEM Board Designs Mentor’s MAJIC probes include a set-up wizard, templates, and target initialization files so moving from the reference design to your target system is straightforward. MAJIC JTAG Probes support EDGE Developer Suite and other development environments to facilitate board bring-up, platform development, fast software download and Flash programming. EDGE Debugger Perspective 10/100BaseT JTAG Connection Target System MAJIC JTAG Probe

Open the catalog to page 1
MAJIC JTAG Probe - 2

Dev SuiteOperating SystemDevelopment & Deployment TargetsOn-Host SimulationReference Hardware SupportCustom Hardware SupportDevice DriversUSBReal-TimeKernelStorage &DatabaseNetworking &ConnectivityMultimediaUserInterfaceDriver Porting KitIDECompilerDebuggerProfilerUI DesignerSimulatorJTAG Mentor's complete embedded solution line-up Corporate Headquarters Mentor Graphics Corporation8005 SW Boeckman RoadWilsonville, OR 97070-7777Phone: 503.685.7000Fax: 503.685.1204Sales and Product InformationPhone: 800.547.3000Silicon ValleyMentor Graphics Corporation1001 Ridder Park DriveSan Jose,...

Open the catalog to page 2
MAJIC JTAG Probe - 3

MAJIC Standard JTAG Cables: ARM CA-ARM14 14-pin CA-ARM20 20-pin CA-FPJ12 12-pin small CA-TX14 TI 14-pin CA-TX20 TI DaVinci MIPS CA -EJ12 12-pin CA -EJ20 20-pin CA -EJ52 52-pin CA -J10 10-pin CA -J12 12-pin CA -MIPS14 14-pin www.mentor.com/embedded MAJIC SOLUTIONS FOR: ARM® Core/Processor Support ARM cores 7TDMI, 7TDMI-S, 7EJ-S, 720T, 9TDMI, 9E-S, 920T, 922T, 926EJ-S, 940T, 946E-S, 966E-S, 968E- 1136JF-S, 1156T2, 1176JZF-S, MPcore Atmel AT7x, AT91x Conexant CN/CXxxxxx Freescale i.MX family GlobespanVirata Helium 100, 210-80, 500 Marvell Feroceon, PXA3xx NetSilicon NET+ARM, NS7520, NS9360,...

Open the catalog to page 3
