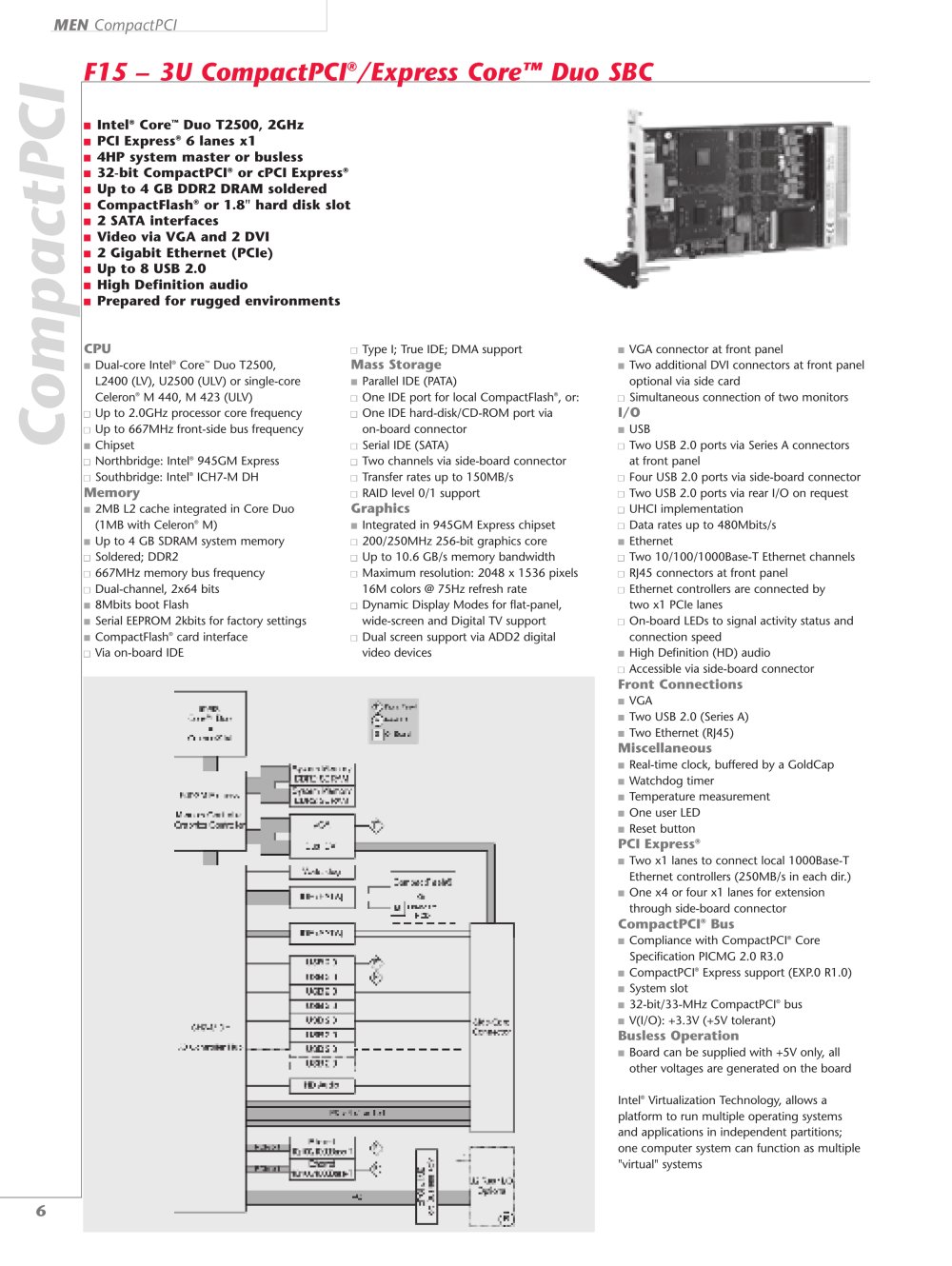

MEN CompactPCI
F15 – 3U CompactPCI
®
/Express Core
™
N Intel
® Core
™ Duo T2500, 2GHz
N PCI Express
® 6 lanes x1
N 4HP system master or busless
N 32-bit CompactPCI
® or cPCI Express
® N Up to 4 GB DDR2 DRAM soldered
N CompactFlash
® or 1.8" hard disk slot
N 2 SATA interfaces
N Video via VGA and 2 DVI
N 2 Gigabit Ethernet (PCIe)
N Up to 8 USB 2.0
N High Definition audio
N Prepared for rugged environments CPU
N Type I; True IDE; DMA support
N VGA connector at front panel
N Dual-core Intel
® Core
™ Duo T2500, L2400 (LV), U2500 (ULV) or single-core Celeron
Mass Storage
N Two additional DVI
connectors manufacturer at front panel optional via side card
N Parallel IDE (PATA)
® M 440, M 423 (ULV)
N One IDE port for local CompactFlash
® , or:
N Simultaneous connection of two
industrial monitors N Up to 2.0GHz processor core frequency
N One IDE hard-disk/CD-ROM port via on-board connector
I/O
N Up to 667MHz front-side bus frequency
N USB
CompactPCI N Chipset
N Serial IDE (SATA)
N Two USB 2.0 ports via Series A connectors at front panel
N Northbridge: Intel
® 945GM Express
N Two channels via side-board connector
N Southbridge: Intel
® ICH7-M DH
N Transfer rates up to 150MB/s
N Four USB 2.0 ports via side-board connector
Memory
N RAID level 0/1 support
N Two USB 2.0 ports via rear I/O on request
N 2MB L2 cache integrated in Core Duo (1MB with Celeron
Graphics
N UHCI implementation
® M)
N Integrated in 945GM Express chipset
N Data rates up to 480Mbits/s
N Up to 4 GB SDRAM system memory
N 200/250MHz 256-bit graphics core
N Ethernet
N Soldered; DDR2
N Up to 10.6 GB/s memory bandwidth
N Two 10/100/1000Base-T Ethernet channels
N 667MHz memory bus frequency
N Maximum resolution: 2048 x 1536 pixels
N RJ45 connectors at front panel
N Dual-channel, 2x64 bits 16M colors @ 75Hz refresh rate
N Industrial ethernet controllers are connected by two x1 PCIe lanes
N 8Mbits boot Flash
N Dynamic Display Modes for flat-panel, wide-screen and Digital TV support
N Serial EEPROM 2kbits for factory settings
N On-board LEDs to signal activity status and connection speed
N CompactFlash
® card interface
N Dual screen support via ADD2 digital video devices
N Via on-board IDE
N High Definition (HD) audio
N Accessible via side-board connector
Front Connections
N VGA
N Two USB 2.0 (Series A)
N Two Ethernet (RJ45)
Miscellaneous
N Real-time clock, buffered by a GoldCap
N Watchdog timer
N Temperature measurement N One user LED
N Reset button
PCI Express
® N Two x1 lanes to connect local 1000Base-T Ethernet controllers (250MB/s in each dir.)
N One x4 or four x1 lanes for extension through side-board connector
CompactPCI
® Bus
N Compliance with CompactPCI
® Core Specification PICMG 2.0 R3.0
N CompactPCI
® Express support (EXP.0 R1.0)
N System slot
N 32-bit/33-MHz CompactPCI
® bus
N V(I/O): +3.3V (+5V tolerant)
Busless Operation
N Board can be supplied with +5V only, all other voltages are generated on the board Intel
® Virtualization Technology, allows a platform to run multiple operating systems and applications in independent
industrial partitions; one computer system can function as multiple "virtual" systems
6
