MEN System-on-Module ESM

III) ® EM3A – ESM™ with MPC8560 (PowerQUICC EK2 – with EM4N

ESM

™

Starter Kits

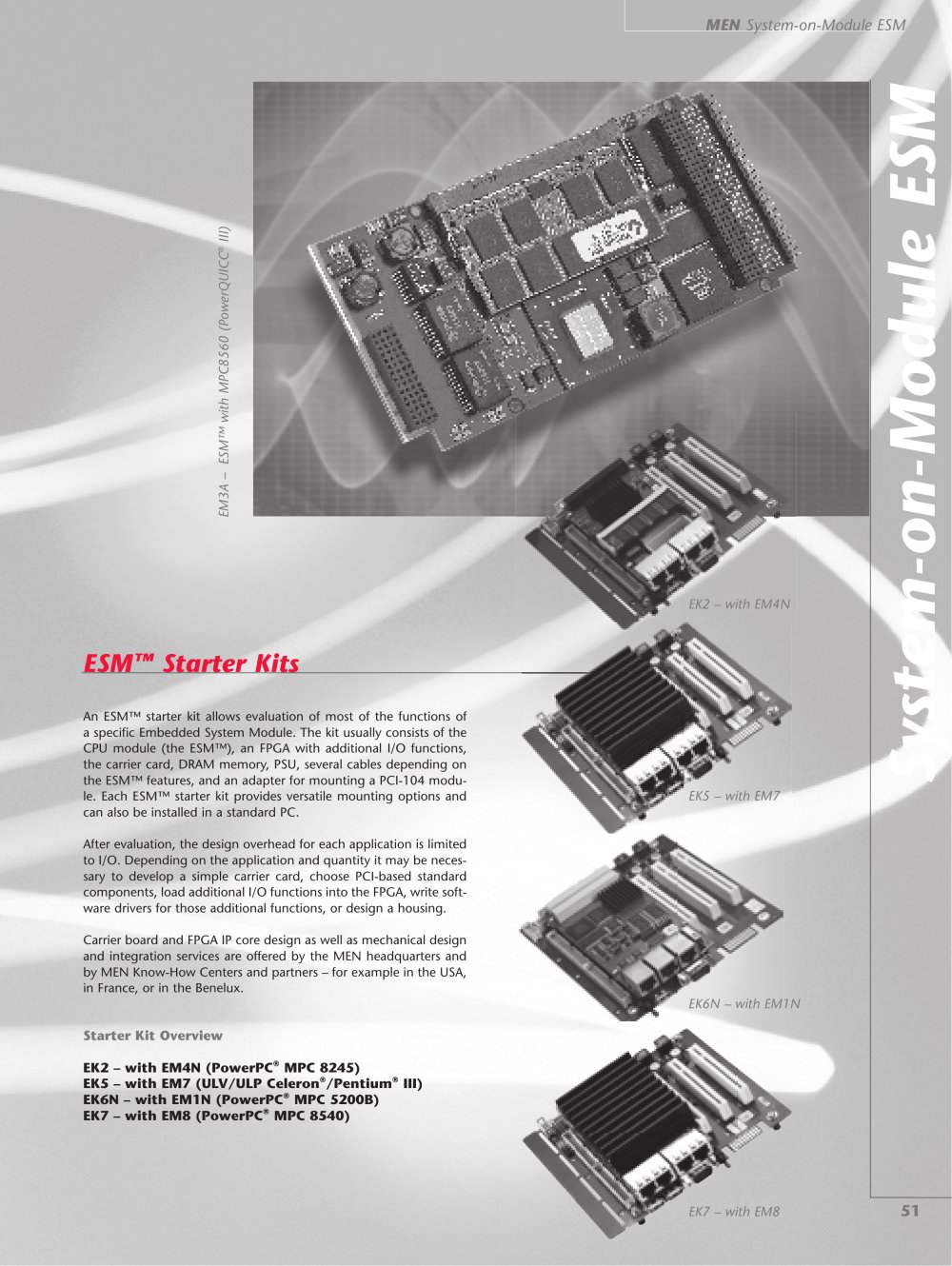

An ESM™ starter kit allows evaluation of most of the functions of a specific Embedded system module. The kit usually consists of the CPU module (the ESM™), an FPGA with additional I/O functions, the carrier card, DRAM memory, PSU, several cables depending on the ESM™ features, and an adapter for mounting a PCI-104 modu- le. Each ESM™ starter kit provides versatile mounting options and can also be installed in a standard PC.After evaluation, the design overhead for each application is limited to I/O. Depending on the application and quantity it may be neces- sary to develop a simple carrier card, choose PCI-based standard components, load additional I/O functions into the FPGA, write soft- ware drivers for those additional functions, or design a housing.Carrier board and FPGA IP core design as well as mechanical design and integration services are offered by the MEN headquarters and by MEN Know-How Centers and partners – for example in the USA, in France, or in the Benelux. System-on-Module ESM EK5 – with EM7 EK6N – with EM1N EK7 – with EM8 Starter Kit OverviewEK2 – with EM4N (PowerPC
® MPC 8245)EK5 – with EM7 (ULV/ULP Celeron
® ® /Pentium
® III)EK6N – with EM1N (PowerPC
® MPC 5200B)EK7 – with EM8 (PowerPC MPC 8540)
