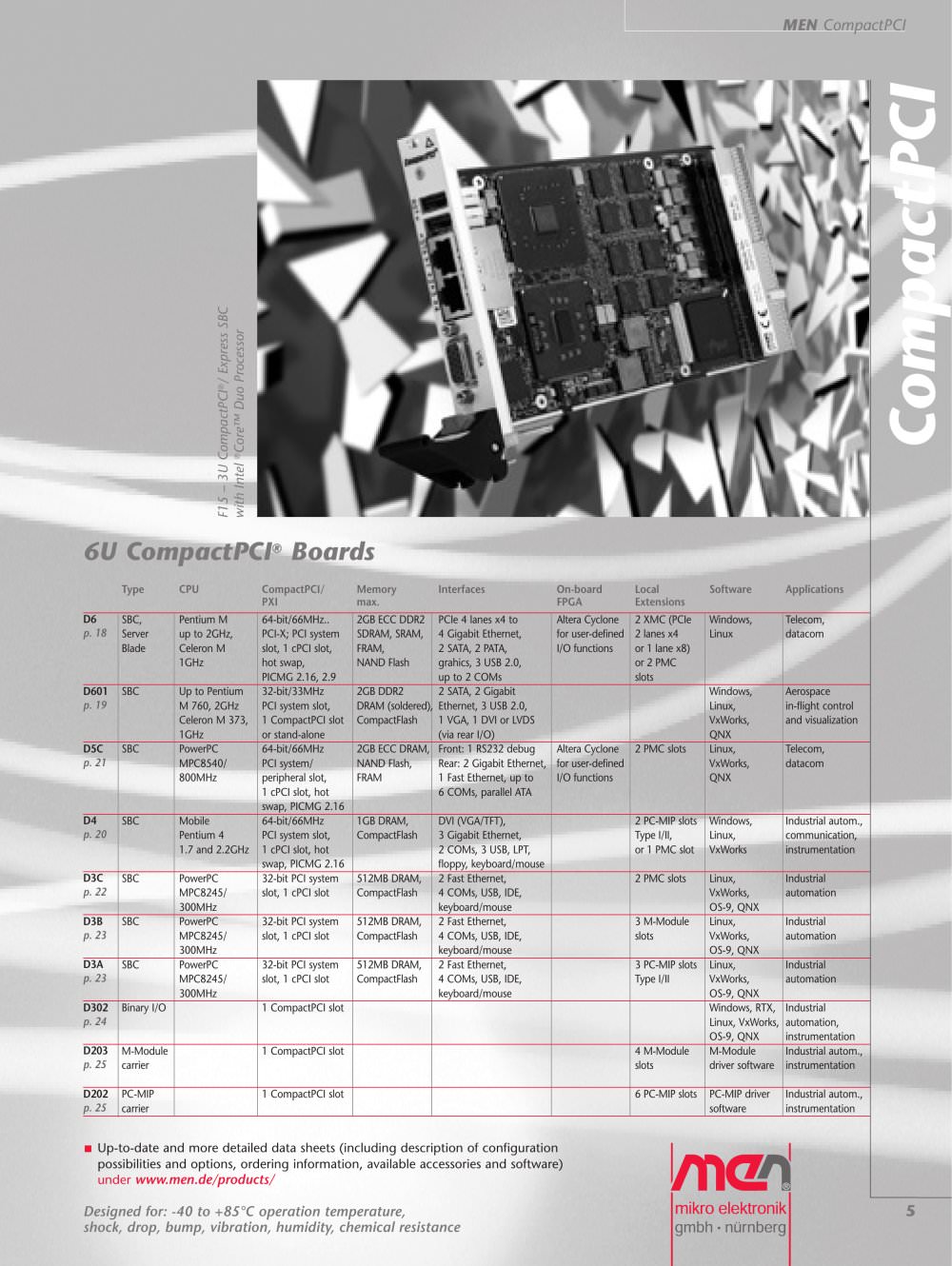

| | | | | | | | | | | | | | | | | | | | | | MEN CompactPCI | | | | | | | | | | 6U CompactPCI® Boards | | | | | | | | | | | | | | | | | | | | | | | | | | Type | CPU | CompactPCI/ PXI | Memory max. | Interfaces | On-board FPGA | Local Extensions | Software | Applications | | | | D6 p. 18 | Server Blade | Pentium M up to 2GHz, Celeron M 1GHz | 64-bit/66MHz.. PCI-X; PCI system slot, 1 cPCI slot, hot swap, PICMG 2.16, 2.9 | 2GB ECC DDR2 SDRAM, SRAM, FRAM, NAND Flash | PCIe 4 lanes x4 to 4 Gigabit Ethernet, 2 SATA, 2 PATA, grahics, 3 USB 2.0, up to 2 COMs | for user-defined I/O functions | 2 XMC (PCIe 2 lanes x4 or 1 lane x8) or 2 PMC slots | Windows, Linux | Telecom, datacom | | | | D601 p. 19 | SBC | Up to Pentium M 760, 2GHz Celeron M 373, 1GHz | 32-bit/33MHz PCI system slot, 1 CompactPCI slot or stand-alone | 2GB DDR2 DRAM (soldered) CompactFlash | 2 SATA, 2 Gigabit Ethernet, 3 USB 2.0, 1 VGA, 1 DVI or LVDS (via rear I/O) | | | Windows, Linux, VxWorks, QNX | Aerospace in-flight control and visualization | | | | D5C p. 21 | SBC | PowerPC MPC8540/ | 64-bit/66MHz PCI system/ | 2GB ECC DRAM, NAND Flash, | Front: 1 RS232 debug Rear: 2 Gigabit Ethernet, | Altera Cyclone for user-defined | 2 PMC slots | Linux, VxWorks, | Telecom, datacom | | | | | | | | | | | 800MHz | peripheral slot, 1 cPCI slot, hot swap, PICMG 2.16 | FRAM | 1 Fast Ethernet, up to 6 COMs, parallel ATA | I/O functions | | QNX | | | | | D4 p. 20 | SBC | Mobile Pentium 4 | 64-bit/66MHz PCI system slot, | 1GB DRAM, CompactFlash | DVI (VGA/TFT), 3 Gigabit Ethernet, | | 2 PC-MIP slots Type I/II, | Windows, Linux, | Industrial autom., communication, | | | | | | 1.7 and 2.2GHz | 1 cPCI slot, hot swap, PICMG 2.16 | | 2 COMs, 3 USB, LPT, floppy, keyboard/mouse | | or 1 PMC slot | VxWorks | | | | | D3C p. 22 | SBC | PowerPC MPC8245/ | 32-bit PCI system slot, 1 cPCI slot | 512MB DRAM, CompactFlash | 2 Fast Ethernet, 4 COMs, USB, IDE, | | 2 PMC slots | Linux, VxWorks, | | | | | | | 300MHz | | | keyboard/mouse | | | OS-9, QNX | | | | | D3B p. 23 | SBC | PowerPC MPC8245/ 300MHz | 32-bit PCI system slot, 1 cPCI slot | 512MB DRAM, CompactFlash | 2 Fast Ethernet, 4 COMs, USB, IDE, keyboard/mouse | | 3 M-Module slots | Linux, VxWorks, OS-9, QNX | Industrial automation | | | | D3A p. 23 | SBC | PowerPC MPC8245/ 300MHz | 32-bit PCI system slot, 1 cPCI slot | 512MB DRAM, CompactFlash | 2 Fast Ethernet, 4 COMs, USB, IDE, keyboard/mouse | | 3 PC-MIP slots Type I/II | Linux, VxWorks, OS-9, QNX | Industrial automation | | | | D302 p. 24 | Binary I/O | | 1 CompactPCI slot | | | | | Windows, RTX, Linux, VxWorks, | Industrial automation, | | | | | | | | | | | | OS-9, QNX | instrumentation | | | | D203 p. 25 | M-Module carrier | | 1 CompactPCI slot | | | | 4 M-Module slots | M-Module driver software | Industrial autom., instrumentation | | | | D202 p. 25 | PC-MIP carrier | | 1 CompactPCI slot | | | | 6 PC-MIP slots | PC-MIP driver software | Industrial autom., instrumentation | | | | | | | | | | | | | | | | | | | | | | | | | ■ Up-to-date and more detailed data sheets (including description of configuration possibilities and options, ordering information, available accessories and software) under www.men.de/products/ Designed for: -40 to +85°C operation temperature, shock, drop, bump, vibration, humidity, chemical resistance | | | | | | I/nari mikro elektronik gmbh • niirnberg | | | | | | 5 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
