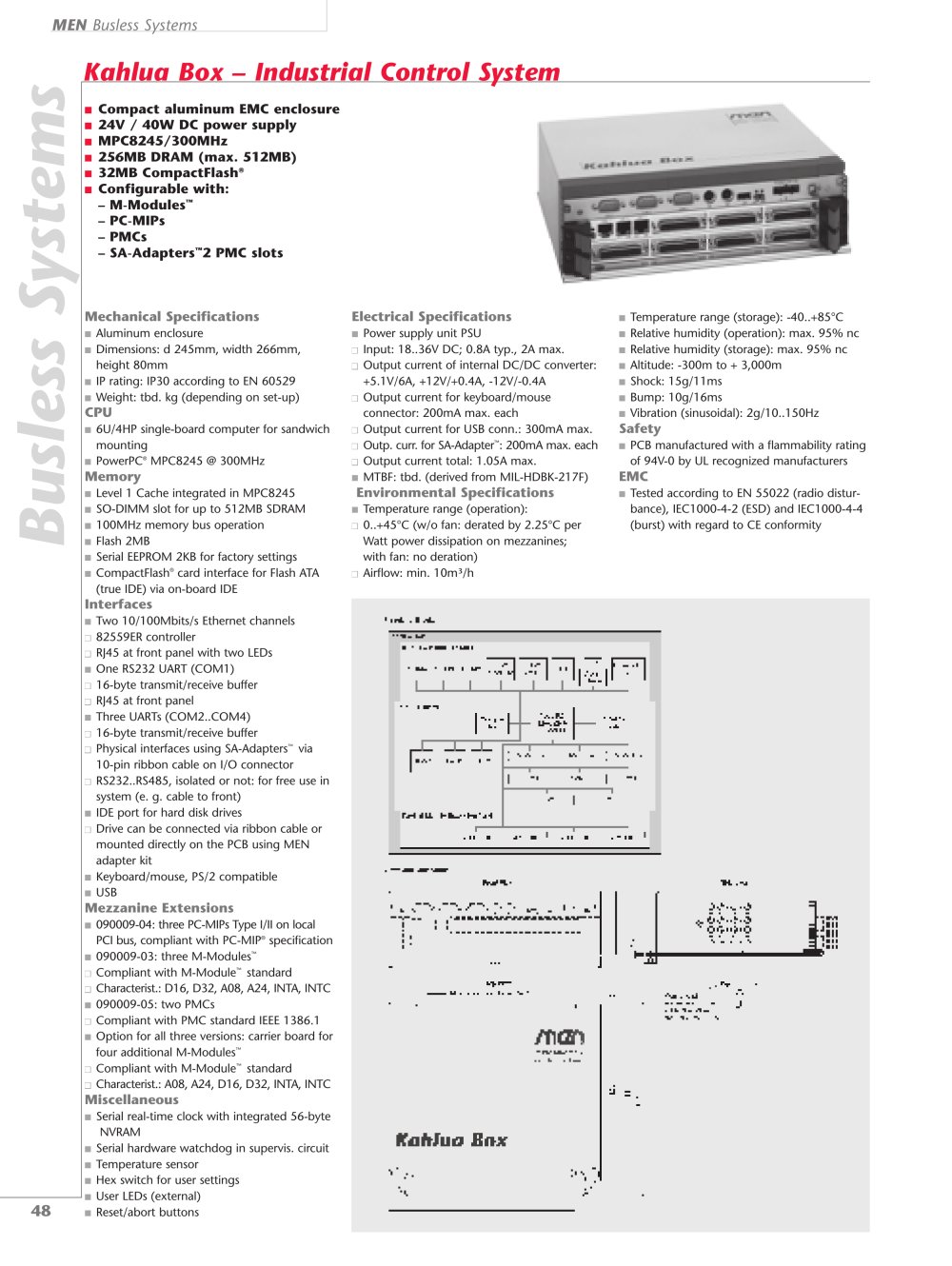

MEN Busless Systems
N Compact aluminum EMC enclosure
N N MPC8245/300MHz
N 256MB DRAM (max. 512MB)
N 32MB CompactFlash
® N Configurable with: – M-Modules
™ – PC-MIPs – PMCs – SA-Adapters
™ 2 PMC slots Mechanical Specifications Electrical Specifications
N Temperature range (storage): -40..+85°C
N Aluminum enclosure
N Power supply unit PSU
N Relative humidity (operation): max. 95% nc
N Dimensions: d 245mm, width 266mm, height 80mm
N Input: 18..36V DC; 0.8A typ., 2A max.
N Relative humidity (storage): max. 95% nc
N Output current of internal DC/DC
industrial converter: +5.1V/6A, +12V/+0.4A, -12V/-0.4A
N Altitude: -300m to + 3,000m
N IP rating: IP30 according to EN 60529
N Shock: 15g/11ms
N Weight: tbd. kg (depending on set-up)
N Output current for keyboard/mouse connector: 200mA max. each
N Bump: 10g/16ms
CPU
N Vibration (sinusoidal): 2g/10..150Hz
N 6U/4HP single-board computer for sandwich mounting
N Output current for USB conn.: 300mA max.
Safety
N Outp. curr. for SA-Adapter
™ : 200mA max. each
N PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
N PowerPC
® MPC8245 @ 300MHz
N Output current total: 1.05A max.
Memory
N MTBF: tbd. (derived from MIL-HDBK-217F)
EMC
N Level 1 Cache integrated in MPC8245
Environmental Specifications
N Tested according to EN 55022 (radio distur- bance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) with regard to CE conformity
N SO-DIMM slot for up to 512MB SDRAM
N Temperature range (operation):
N 100MHz memory bus operation
N 0..+45°C (w/o fan: derated by 2.25°C per Watt power dissipation on
industrial mezzanines; with fan: no deration)
Busless Systems N Flash 2MB
N Serial EEPROM 2KB for factory settings
N CompactFlash
® card interface for Flash ATA (true IDE) via on-board IDE
N Airflow: min. 10m³/h
Interfaces
N Two 10/100Mbits/s Ethernet channels
N 82559ER controller
N RJ45 at front panel with two LEDs
N One RS232 UART (COM1)
N 16-byte transmit/receive buffer
N RJ45 at front panel
N Three UARTs (COM2..COM4)
N 16-byte transmit/receive buffer
N Physical interfaces using SA-Adapters
™ via 10-pin ribbon cable on I/O connector
N RS232..RS485, isolated or not: for free use in system (e. g. cable to front)
N IDE port for hard disk drives
N Drive can be connected via ribbon cable or mounted directly on the PCB using MEN adapter kit
N Keyboard/mouse, PS/2 compatible
N USB
Mezzanine Extensions
N 090009-04: three PC-MIPs Type I/II on local PCI bus, compliant with PC-MIP
® specification
N 090009-03: three M-Modules
™ N Compliant with M-Module
™ standard
N Characterist.: D16, D32, A08, A24, INTA, INTC
N 090009-05: two PMCs
N Compliant with PMC standard IEEE 1386.1
N Option for all three versions: carrier board for four additional M-Modules
™ N Compliant with M-Module
™ standard
N Characterist.: A08, A24, D16, D32, INTA, INTC
Miscellaneous
N Serial real-time clock with integrated 56-byte
NVRAM N Serial hardware watchdog in supervis. circuit
N Temperature sensor N Hex switch for user settings
N User LEDs (external)
48
N Reset/abort buttons
