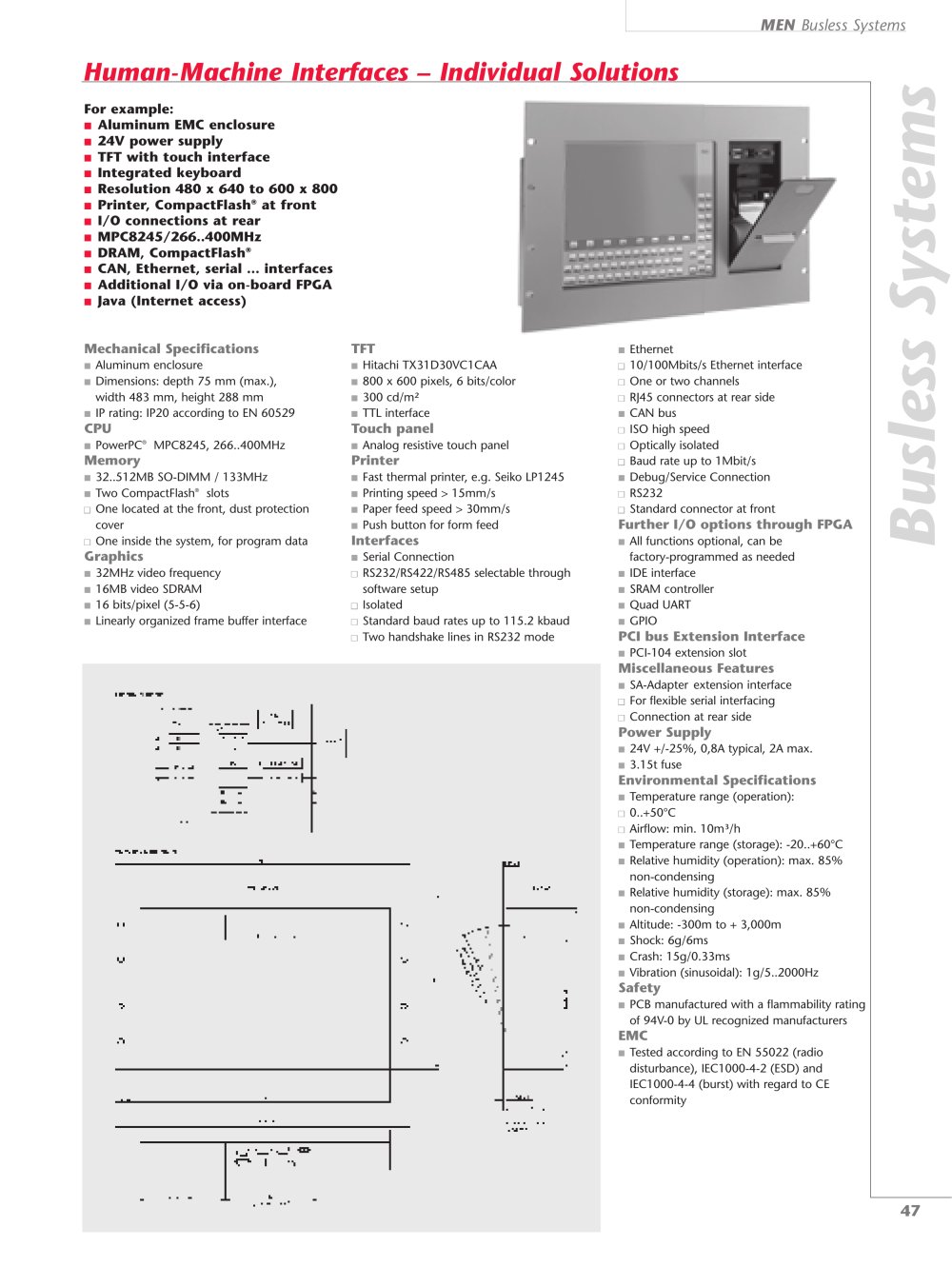

MEN Busless Systems

Human-Machine Interfaces – Individual Solutions

For example:

Aluminum EMC enclosure

24V power supply

TFT with touch interface

Integrated keyboard

Resolution 480 x 640 to 600 x 800

Printer, CompactFlash

at front

I/O connections at rear

MPC8245/266..400MHz

DRAM, CompactFlash

® N

CAN, Ethernet, serial ... interfaces

Additional I/O via on-board FPGA

Java (Internet access) Mechanical Specifications TFT

N Ethernet
N Aluminum enclosure
N Hitachi TX31D30VC1CAA
N 10/100Mbits/s Ethernet interface
N Dimensions: depth 75 mm (max.), width 483 mm, height 288 mm
N 800 x 600 pixels, 6 bits/color
N One or two channels
N 300 cd/m²
N RJ45 connectors at rear side
N IP rating: IP20 according to EN 60529
N TTL interface
N CAN bus

CPU Touch panel

N ISO high speed
N PowerPC
® MPC8245, 266..400MHz
N Analog resistive touch panel
N Optically isolated

Memory Printer

N Baud rate up to 1Mbit/s
N 32..512MB SO-DIMM / 133MHz
N Fast thermal printer, e.g. Seiko LP1245
N Debug/Service Connection
N Two CompactFlash
® slots
N Printing speed > 15mm/s
N RS232
N One located at the front, dust protection cover
N Paper feed speed > 30mm/s
N Standard connector at front
N Push button for form feed

Further I/O options through FPGA

N One inside the system, for program data

Interfaces

N All functions optional, can be factory-programmed as needed
Busless Systems

Graphics

N Serial Connection
N 32MHz video frequency
N RS232/RS422/RS485 selectable through software setup
N IDE interface
N 16MB video SDRAM
N SRAM controller
N 16 bits/pixel (5-5-6)
N Isolated
N Quad UART
N Linearly organized frame buffer interface
N Standard baud rates up to 115.2 kbaud
N GPIO
N Two handshake lines in RS232 mode

PCI bus Extension Interface

N PCI-104 extension slot

Miscellaneous Features

N SA-Adapter extension interface
N For flexible serial interfacing
N Connection at rear side

Power Supply

N 24V +/-25%, 0,8A typical, 2A max.
N 3.15t fuse

Environmental Specifications

N Temperature range (operation):
N 0..+50°C
N Airflow: min. 10m³/h
N Temperature range (storage): -20..+60°C
N Relative humidity (operation): max. 85% non-condensing
N Relative humidity (storage): max. 85% non-condensing
N Altitude: -300m to + 3,000m
N Shock: 6g/6ms
N Crash: 15g/0.33ms
N Vibration (sinusoidal): 1g/5..2000Hz

Safety

N PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers

EMC

N Tested according to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) with regard to CE conformity
