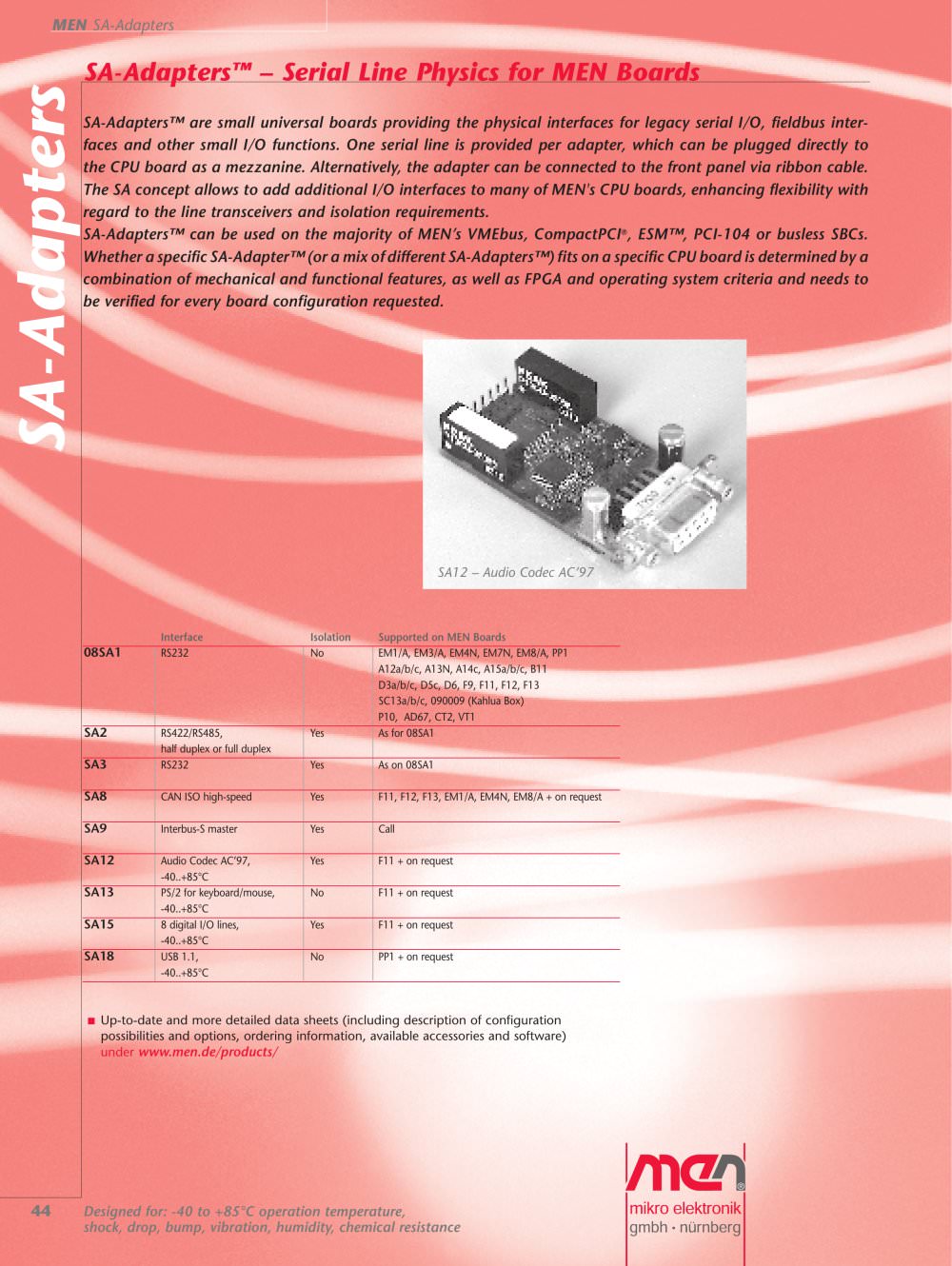

MEN SA-Adapters

SA-Adapters ™ – Serial Line Physics for MEN Boards

SA-Adapters™ are small universal boards providing the physical interfaces for legacy serial I/O, fieldbus inter-faces and other small I/O functions. One serial line is provided per adapter, which can be plugged directly to the CPU board as a mezzanine. Alternatively, the adapter can be connected to the front panel via ribbon cable. The SA concept allows to add additional I/O interfaces to many of MEN's Industrial cpu boards, enhancing flexibility with regard to the line transceivers and isolation requirements. SA-Adapters™ can be used on the majority of MEN’s VMEbus, CompactPCI

®

, ESM™, PCI-104 or busless Sbcs. Whether a specific SA-Adapter™ (or a mix of different SA-Adapters™) fits on a specific CPU board is determined by a combination of mechanical and functional features, as well as FPGA and operating system criteria and needs to be verified for every board configuration requested.

SA-Adapters

SA12 – Audio Codec AC’97

08SA1

Interface Isolation Supported on MEN Boards RS232 No EM1/A, EM3/A, EM4N, EM7N, EM8/A, PP1 A12a/b/c, A13N, A14c, A15a/b/c, B11 D3a/b/c, D5c, D6, F9, F11, F12, F13 SC13a/b/c, 090009 (Kahlua Box) P10, AD67, CT2, VT1

SA2

RS422/RS485, Yes As for 08SA1 half duplex or full duplex

SA3

RS232 Yes As on 08SA1

SA8

CAN ISO high-speed Yes F11, F12, F13, EM1/A, EM4N, EM8/A + on request

SA9

Interbus-S master Yes Call

SA12

Audio Codec AC’97, Yes F11 + on request -40..+85°C

SA13

PS/2 for keyboard/mouse, No F11 + on request -40..+85°C

SA15

8 digital I/O lines, Yes F11 + on request -40..+85°C

SA18

USB 1.1, No PP1 + on request -40..+85°C
N

Up-to-date and more detailed data sheets (including description of configuration possibilities and options, ordering information, available accessories and software) under

www.men.de/products/

44

Designed for: -40 to +85°C operation temperature, shock, drop, bump, vibration, humidity, chemical resistance
