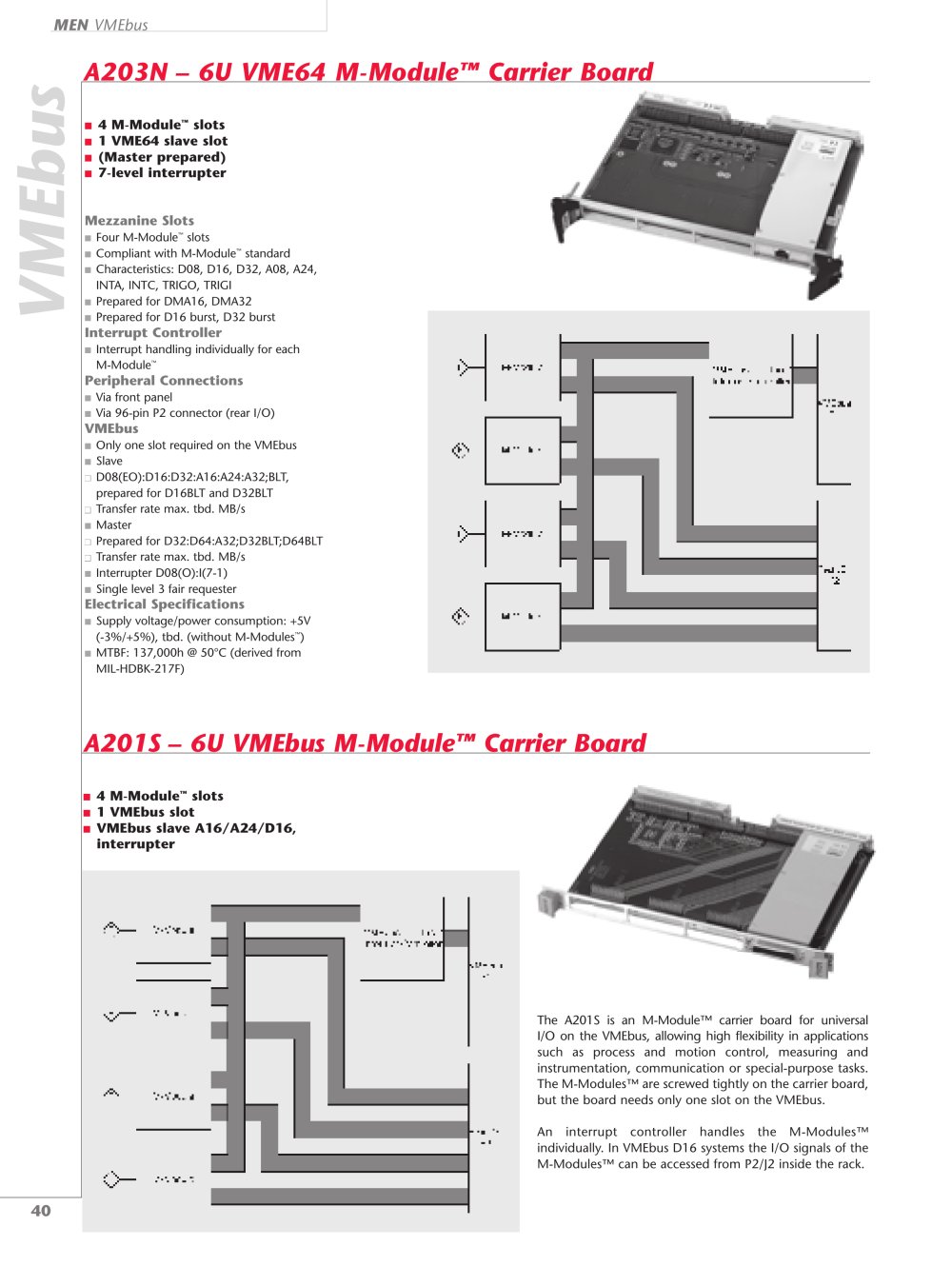

A203N – 6U VME64 M-Module

™

Carrier Board A201S – 6U VMEbus M-Module

4 M-Module

™

slots

1 VME64 slave slot

(Master prepared)

7-level interrupter Mezzanine Slots

N Four M-Module
™ slots
N Compliant with M-Module
™ standard
N Characteristics: D08, D16, D32, A08, A24, INTA, INTC, TRIGO, TRIGI
N Prepared for DMA16, DMA32
VMEbus N Prepared for D16 burst, D32 burst

Interrupt Controller

N Interrupt handling individually for each M-Module
™

Peripheral Connections

N Via front panel
N Via 96-pin P2 connector (rear I/O)

VMEbus

N Only one slot required on the VMEbus
N Slave
N D08(EO):D16:D32:A16:A24:A32;BLT, prepared for D16BLT and D32BLT
N Transfer rate max. tbd. MB/s
N Master
N Prepared for D32:D64:A32;D32BLT;D64BLT
N Transfer rate max. tbd. MB/s
N Interrupter D08(O):I(7-1)
N Single level 3 fair requester

Electrical Specifications

N Supply voltage/power consumption: +5V (-3%/+5%), tbd. (without M-Modules
™ )
N MTBF: 137,000h @ 50°C (derived from MIL-HDBK-217F)

™

Carrier Board

4 M-Module

™

slots

1 VMEbus slot

VMEbus slave A16/A24/D16, interrupter

The A201S is an M-Module™ carrier board for universal I/O on the VMEbus, allowing high flexibility in applications such as process and motion control, measuring and industrial instrumentation, communication or special-purpose tasks. The M-Modules™ are screwed tightly on the carrier board, but the board needs only one slot on the VMEbus.An interrupt controller handles the M-Modules™ individually. In VMEbus D16 systems the I/O signals of the M-Modules™ can be accessed from P2/J2 inside the rack.
