MEN CompactPCI

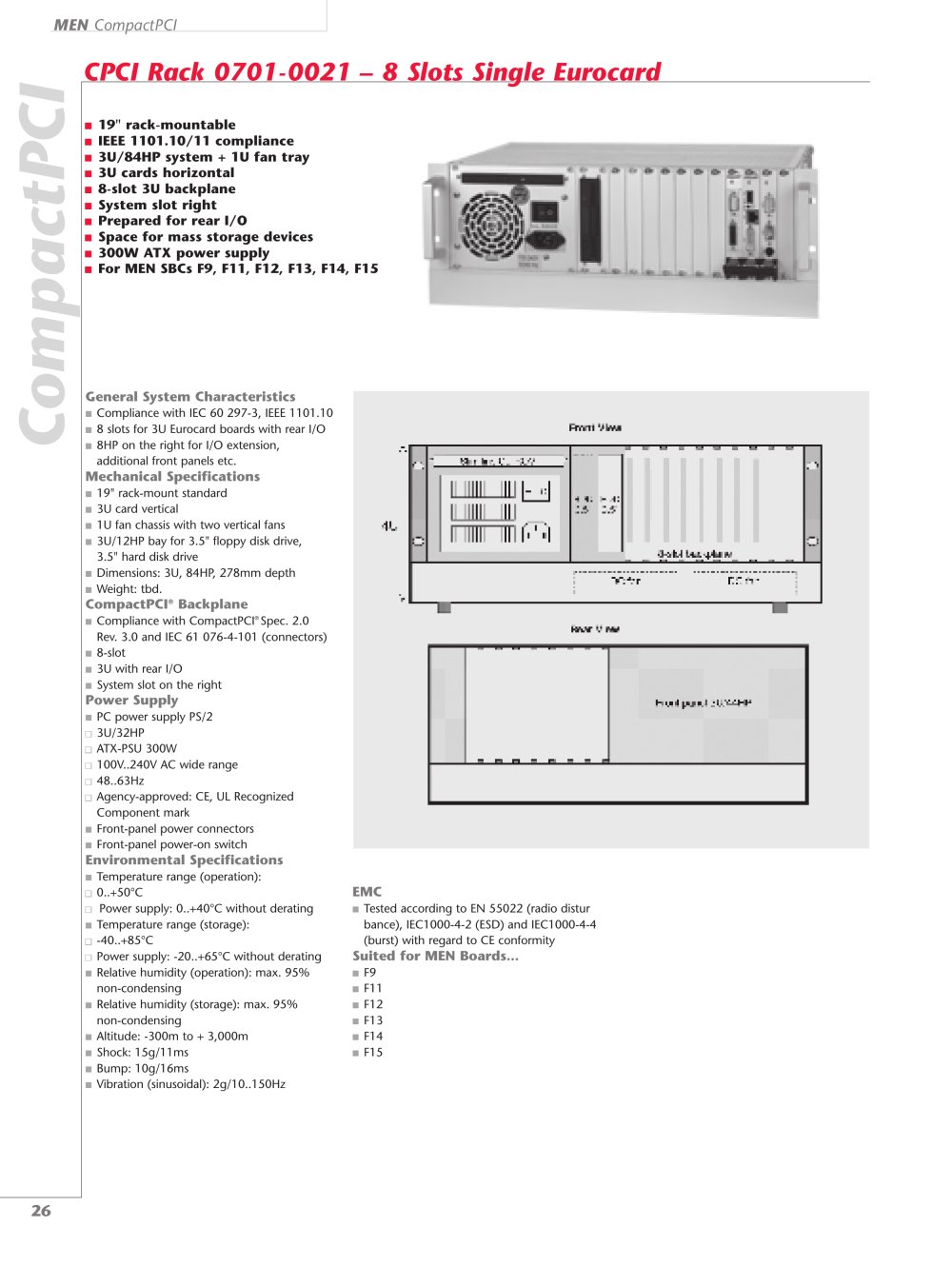

CPCI Rack 0701-0021 – 8 Slots Single Eurocard

19" rack-mountable

IEEE 1101.10/11 compliance

3U/84HP system + 1U fan tray

3U cards horizontal

8-slot 3U backplane

System slot right

Prepared for rear I/O

Space for mass storage devices

300W ATX power supply

For MEN Sbcs F9, F11, F12, F13, F14, F15 General System Characteristics

N Compliance with IEC 60 297-3, IEEE 1101.10
N 8 slots for 3U Eurocard boards with rear I/O
CompactPCI N 8HP on the right for I/O extension, additional front panels etc.

Mechanical Specifications

N 19" rack-mount standard
N 3U card vertical
N 1U fan chassis with two vertical industrial fans
N 3U/12HP bay for 3.5" floppy disk drive, 3.5" hard disk drive
N Dimensions: 3U, 84HP, 278mm depth
N Weight: tbd.

CompactPCI

Backplane

N Compliance with CompactPCI
® Spec. 2.0 Rev. 3.0 and IEC 61 076-4-101 (connectors)
N 8-slot
N 3U with rear I/O
N System slot on the right

Power Supply

N PC power supply PS/2
N 3U/32HP
N ATX-PSU 300W
N 100V..240V AC wide range
N 48..63Hz
N Agency-approved: CE, UL Recognized Component mark
N Front-panel power connectors
N Front-panel power-on switch

Environmental Specifications

N Temperature range (operation):
N 0..+50°C

EMC

N Power supply: 0..+40°C without derating
N Tested according to EN 55022 (radio distur bance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) with regard to CE conformity
N Temperature range (storage):
N -40..+85°C
N Power supply: -20..+65°C without derating

Suited for MEN Boards...

N Relative humidity (operation): max. 95% non-condensing
N F9
N F11
N Relative humidity (storage): max. 95% non-condensing
N F12
N F13
N Altitude: -300m to + 3,000m
N F14
N Shock: 15g/11ms
N F15
N Bump: 10g/16ms
N Vibration (sinusoidal): 2g/10..150Hz

26
