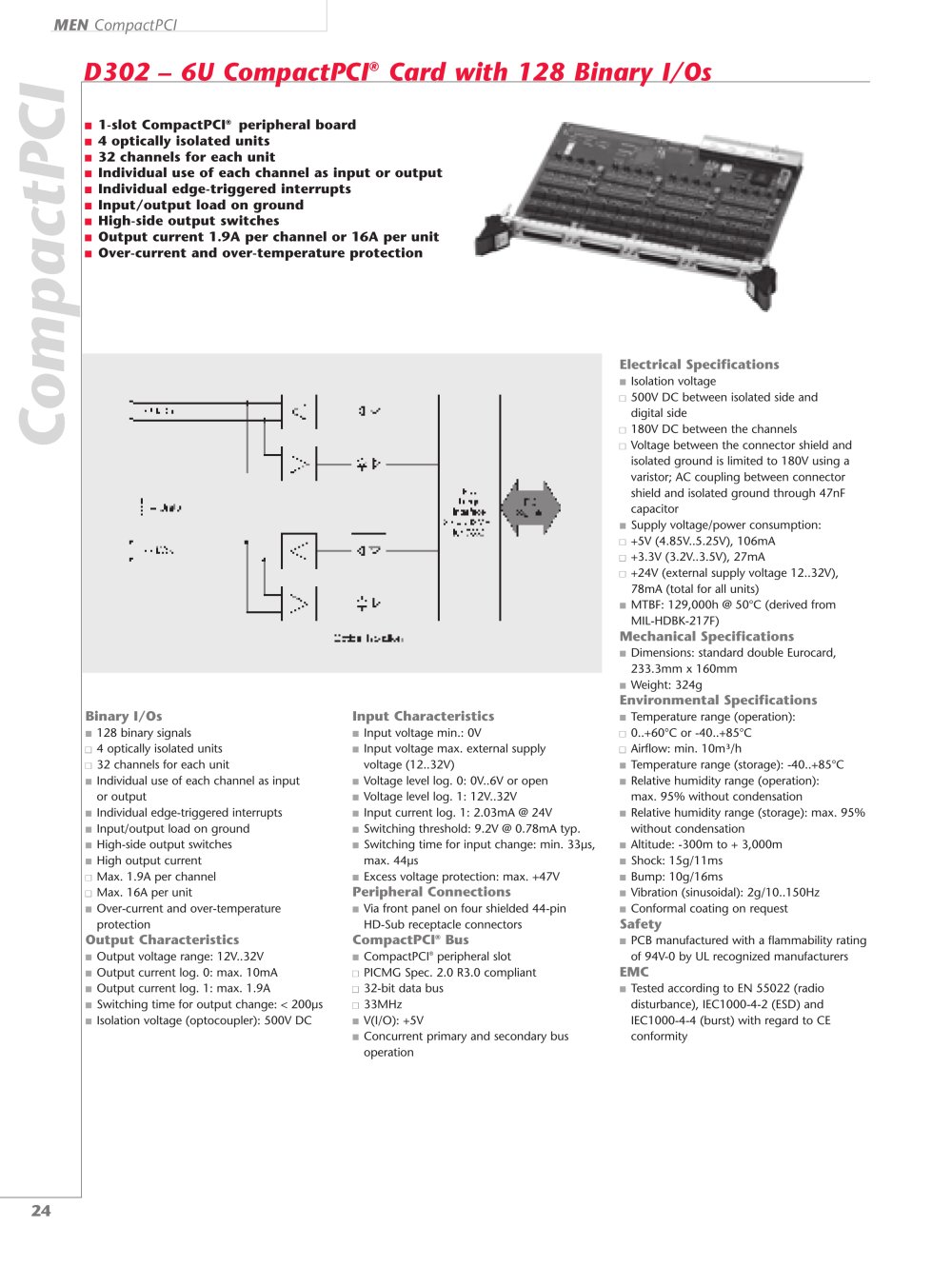

MEN CompactPCI

D302 – 6U CompactPCI

®

Card with 128 Binary I/Os

1-slot CompactPCI

peripheral board

4 optically isolated units

32 channels for each unit

Individual use of each channel as input or output

Individual edge-triggered interrupts

Input/output load on ground

High-side output switches

Output current 1.9A per channel or 16A per unit

Over-current and over-temperature protection Electrical Specifications

N Isolation voltage
N 500V DC between isolated side and digital side
N 180V DC between the channels
CompactPCI N Voltage between the connector shield and isolated ground is limited to 180V using a varistor; AC coupling between connector shield and isolated ground through 47nF capacitor manufacturer
N Supply voltage/power consumption:
N +5V (4.85V..5.25V), 106mA
N +3.3V (3.2V..3.5V), 27mA
N +24V (external supply voltage 12..32V), 78mA (total for all units)
N MTBF: 129,000h @ 50°C (derived from MIL-HDBK-217F)

Mechanical Specifications

N Dimensions: standard double Eurocard, 233.3mm x 160mm
N Weight: 324g

Environmental Specifications Binary I/Os Input Characteristics

N Temperature range (operation):
N 128 binary signals
N Input voltage min.: 0V
N 0..+60°C or -40..+85°C
N 4 optically isolated units
N Input voltage max. external supply voltage (12..32V)
N Airflow: min. 10m³/h
N 32 channels for each unit
N Temperature range (storage): -40..+85°C
N Individual use of each channel as input or output
N Voltage level log. 0: 0V..6V or open
N Relative humidity range (operation): max. 95% without condensation
N Voltage level log. 1: 12V..32V
N Individual edge-triggered interrupts
N Input current log. 1: 2.03mA @ 24V
N Relative humidity range (storage): max. 95% without condensation
N Input/output load on ground
N Switching threshold: 9.2V @ 0.78mA typ.
N High-side output switches
N Switching time for input change: min. 33µs, max. 44µs
N Altitude: -300m to + 3,000m
N High output current
N Shock: 15g/11ms
N Max. 1.9A per channel
N Excess voltage protection: max. +47V
N Bump: 10g/16ms
N Max. 16A per unit

Peripheral Connections

N Vibration (sinusoidal): 2g/10..150Hz
N Over-current and over-temperature protection
N Via front panel on four shielded 44-pin HD-Sub receptacle industrial connectors
N Conformal coating on request

Safety Output Characteristics CompactPCI

Bus

N PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
N Output voltage range: 12V..32V
N CompactPCI
® peripheral slot
N Output current log. 0: max. 10mA
N PICMG Spec. 2.0 R3.0 compliant

EMC

N Output current log. 1: max. 1.9A
N 32-bit data bus
N Tested according to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) with regard to CE conformity
N Switching time for output change: < 200µs
N 33MHz
N Isolation voltage (optocoupler): 500V DC
N V(I/O): +5V
N Concurrent primary and secondary bus operation
