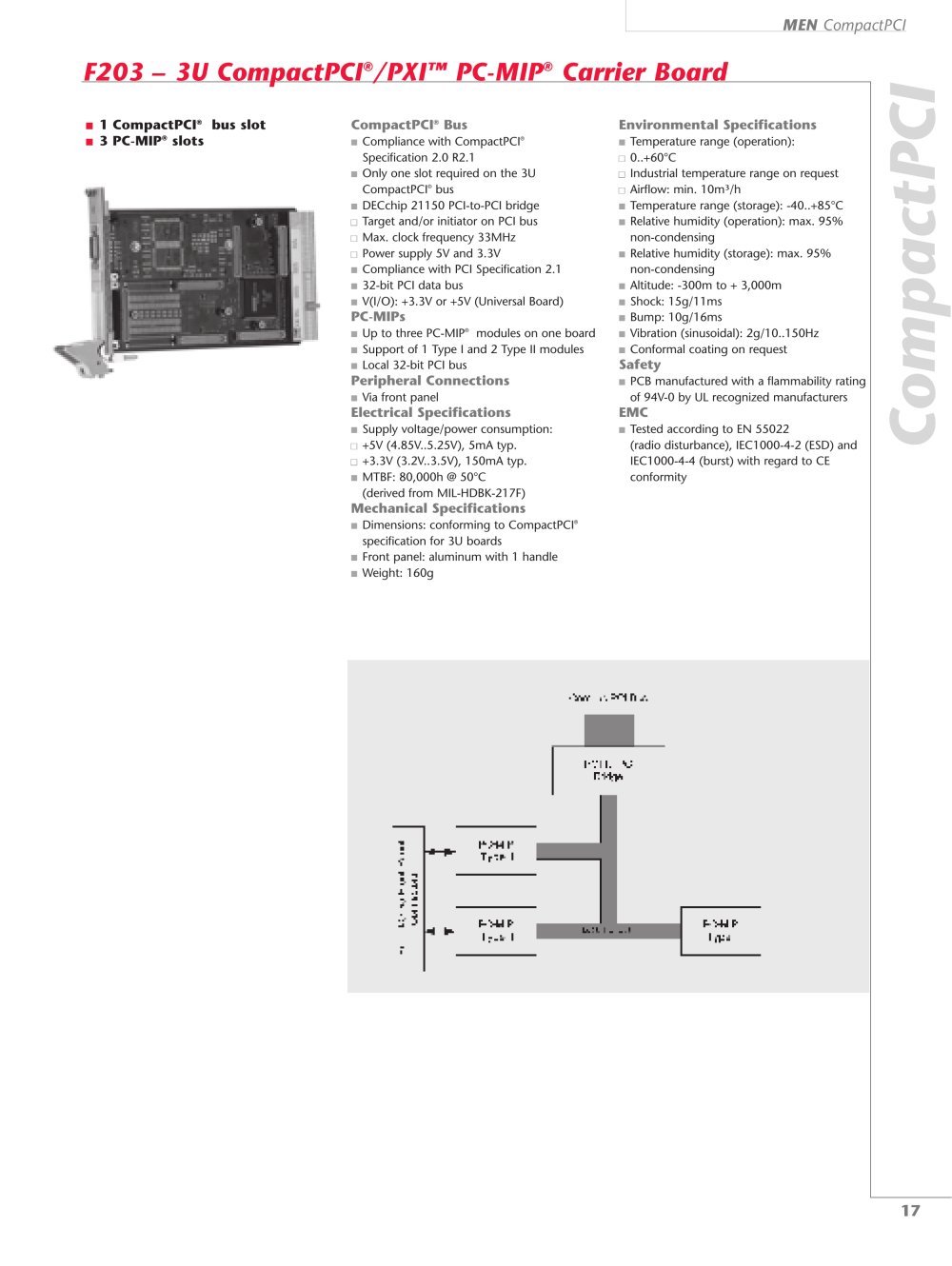

F203 – 3U CompactPCI

®

/PXI

™

PC-MIP

®

Carrier Board

1 CompactPCI

bus slot CompactPCI

Bus Environmental Specifications

3 PC-MIP

slots

N Compliance with CompactPCI
® Specification 2.0 R2.1
N Temperature range (operation):
N 0..+60°C
N Only one slot required on the 3U CompactPCI
N Industrial temperature range on request
® bus
N Airflow: min. 10m³/h
N DECchip 21150 PCI-to-PCI bridge
N Temperature range (storage): -40..+85°C
N Target and/or initiator on PCI bus
N Relative humidity (operation): max. 95% non-condensing
N Max. clock frequency 33MHz
N Power supply 5V and 3.3V
N Relative humidity (storage): max. 95% non-condensing
N Compliance with PCI Specification 2.1
N 32-bit PCI data bus
N Altitude: -300m to + 3,000m
N V(I/O): +3.3V or +5V (Universal Board)
N Shock: 15g/11ms

PC-MIPs

N Bump: 10g/16ms
N Up to three PC-MIP
® modules on one board
N Vibration (sinusoidal): 2g/10..150Hz
N Support of 1 Type I and 2 Type II modules
N Conformal coating on request
N Local 32-bit PCI bus

Safety Peripheral Connections

N PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
N Via front panel

Electrical Specifications EMC

N Supply voltage/power consumption:
N Tested according to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) with regard to CE conformity
N +5V (4.85V..5.25V), 5mA typ.
CompactPCI N +3.3V (3.2V..3.5V), 150mA typ.
N MTBF: 80,000h @ 50°C (derived from MIL-HDBK-217F)

Mechanical Specifications

N Dimensions: conforming to CompactPCI
® specification for 3U boards
N Front panel: aluminum with 1 handle
N Weight: 160g

17
