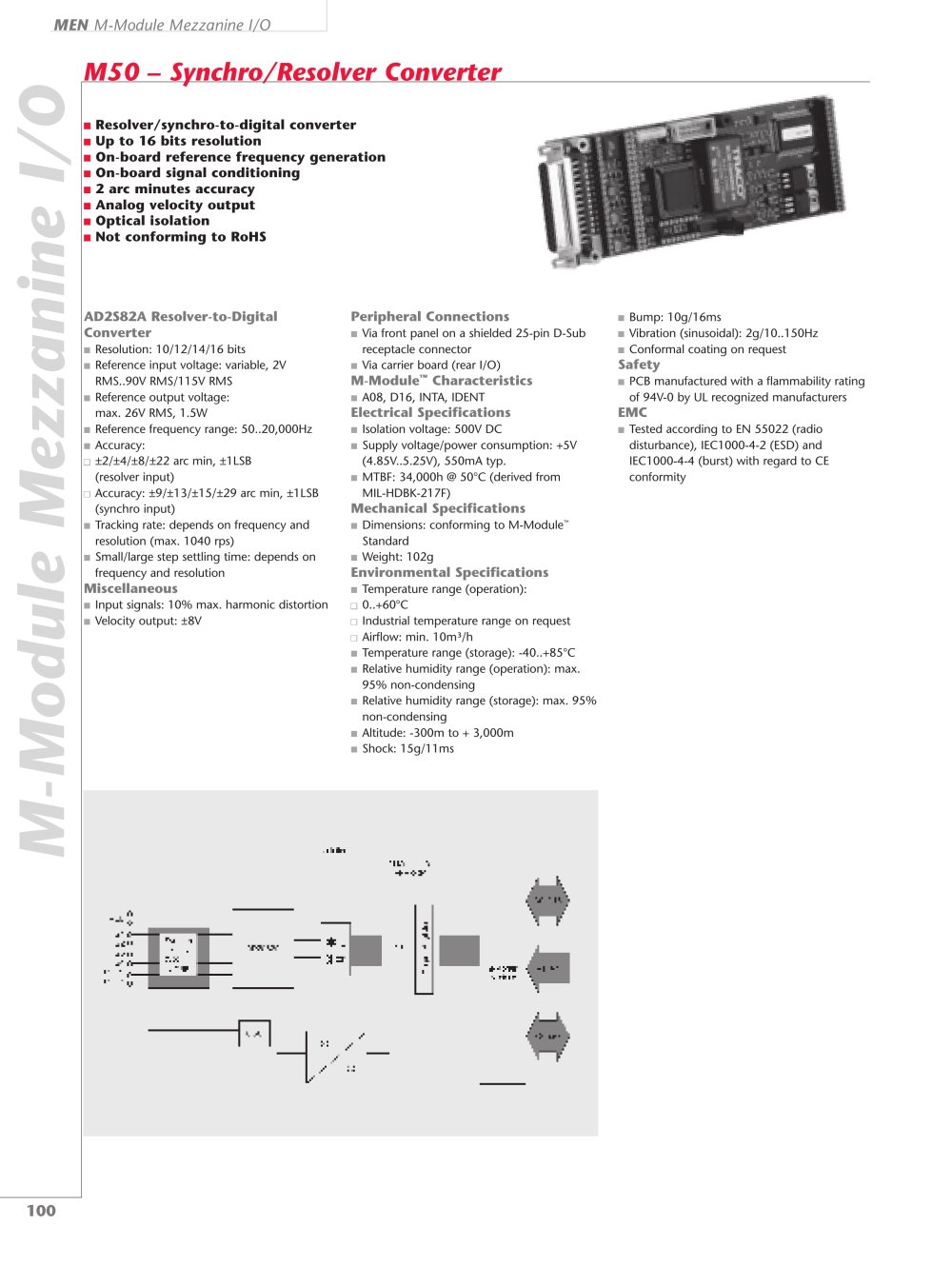

MEN M-Module Mezzanine I/O
N Resolver/synchro-to-digital converter
N Up to 16 bits resolution
N On-board reference frequency generation
N On-board signal conditioning
N 2 arc minutes accuracy
N Analog velocity output
N Optical isolation
N Not conforming to RoHSAD2S82A Resolver-to-Digital Converter Peripheral Connections
N Bump: 10g/16ms
N Via front panel on a shielded 25-pin D-Sub receptacle connector
N Vibration (sinusoidal): 2g/10..150Hz
N Resolution: 10/12/14/16 bits
N Conformal coating on request
N Reference input voltage: variable, 2V RMS..90V RMS/115V RMS
N Via carrier board (rear I/O)
Safety M-Module
™ Characteristics
N PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
N Reference output voltage: max. 26V RMS, 1.5W
N A08, D16, INTA, IDENT
Electrical Specifications EMC
N Reference frequency range: 50..20,000Hz
N Isolation voltage: 500V DC
N Tested according to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) with regard to CE conformity
N Accuracy:
N Supply voltage/power consumption: +5V (4.85V..5.25V), 550mA typ.
N ±2/±4/±8/±22 arc min, ±1LSB (resolver input)
N MTBF: 34,000h @ 50°C (derived from MIL-HDBK-217F)
N Accuracy: ±9/±13/±15/±29 arc min, ±1LSB (synchro input)
Mechanical Specifications
N Tracking rate: depends on frequency and resolution (max. 1040 rps)
N Dimensions: conforming to M-Module
™ Standard
N Small/large step settling time: depends on frequency and resolution
N Weight: 102g
Environmental Specifications Miscellaneous
N Temperature range (operation):
N Input signals: 10% max. harmonic distortion
N 0..+60°C
N Velocity output: ±8V
N Industrial temperature range on request
N Airflow: min. 10m³/h
N Temperature range (storage): -40..+85°C
N Relative humidity range (operation): max. 95% non-condensing
N Relative humidity range (storage): max. 95% non-condensing
N Altitude: -300m to + 3,000m
N Shock: 15g/11ms
M-Module Mezzanine I/O 100
