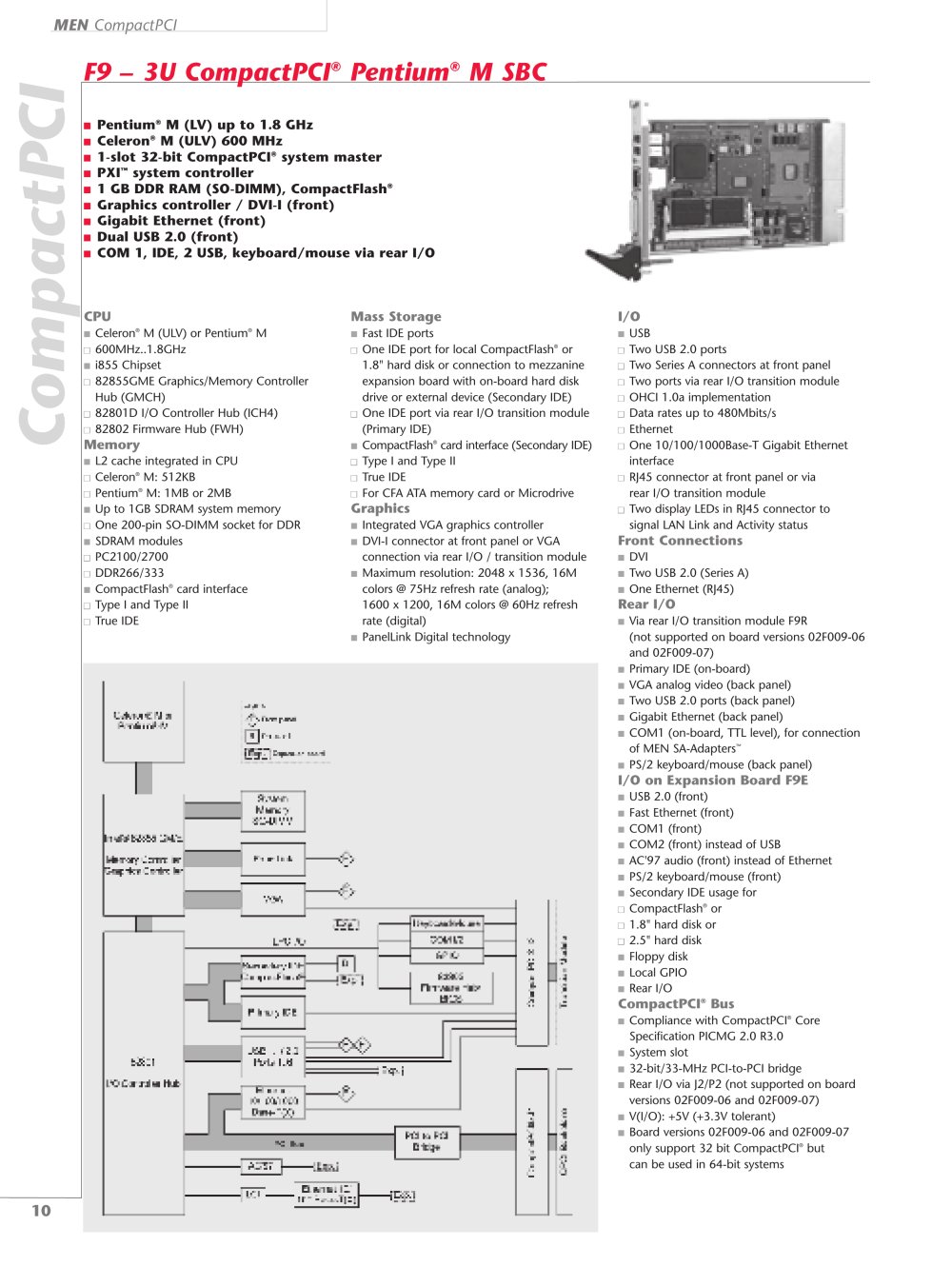

F9 – 3U CompactPCI

®

Pentium

®

M SBC

Pentium

M (LV) up to 1.8 GHz

Celeron

M (ULV) 600 MHz

1-slot 32-bit CompactPCI

system master

PXI

™

system controller

1 GB DDR RAM (SO-DIMM), CompactFlash

® N

Graphics controller / DVI-I (front)

Gigabit Ethernet (front)

Dual USB 2.0 (front)

COM 1, IDE, 2 USB, keyboard/mouse via rear I/O CPU Mass Storage I/O

N Celeron
® M (ULV) or Pentium
® M
N Fast IDE ports
N USB
N 600MHz..1.8GHz
N One IDE port for local CompactFlash
® or 1.8" hard disk or connection to mezzanine expansion board with on-board hard disk drive or external device (Secondary IDE)
N Two USB 2.0 ports
N i855 Chipset
N Two Series A connectors at front panel
N 82855GME Graphics/Memory Controller Hub (GMCH)
N Two ports via rear I/O transition module
N OHCI 1.0a implementation
N 82801D I/O Controller Hub (ICH4)
N One IDE port via rear I/O transition module (Primary IDE)
N Data rates up to 480Mbits/s
N 82802 Firmware Hub (FWH)
N Ethernet
® CompactPCI

Memory

N CompactFlash card interface (Secondary IDE)
N One 10/100/1000Base-T Gigabit Ethernet interface
N L2 cache integrated in CPU
N Type I and Type II
N Celeron
® M: 512KB
N True IDE
N RJ45 connector at front panel or via rear I/O transition module
N Pentium
® M: 1MB or 2MB
N For CFA ATA memory card or Microdrive
N Up to 1GB SDRAM system memory

Graphics

N Two display LEDs in RJ45 connector to signal LAN Link and Activity status
N One 200-pin SO-DIMM socket for DDR
N Integrated VGA graphics controller
N SDRAM modules
N DVI-I connector at front panel or VGA connection via rear I/O / transition module

Front Connections

N PC2100/2700
N DVI
N DDR266/333
N Maximum resolution: 2048 x 1536, 16M colors @ 75Hz refresh rate (analog); 1600 x 1200, 16M colors @ 60Hz refresh rate (digital)
N Two USB 2.0 (Series A)
N CompactFlash
® card interface
N One Ethernet (RJ45)
N Type I and Type II

Rear I/O

N True IDE
N Via rear I/O transition module F9R (not supported on board versions 02F009-06 and 02F009-07)
N PanelLink Digital technology
N Primary IDE (on-board)
N VGA analog video (back panel)
N Two USB 2.0 ports (back panel)
N Gigabit Ethernet (back panel)
N COM1 (on-board, TTL level), for connection of MEN SA-Adapters
™ N PS/2 keyboard/mouse (back panel)

I/O on Expansion Board F9E

N USB 2.0 (front)
N Fast Ethernet (front)
N COM1 (front)
N COM2 (front) instead of USB
N AC'97 audio (front) instead of Ethernet
N PS/2 keyboard/mouse (front)
N Secondary IDE usage for
N CompactFlash
® or
N 1.8" hard disk or
N 2.5" hard disk
N Floppy disk
N Local GPIO
N Rear I/O

CompactPCI

Bus

N Compliance with CompactPCI
® Core Specification PICMG 2.0 R3.0
N System slot
N 32-bit/33-MHz PCI-to-PCI industrial bridge
N Rear I/O via J2/P2 (not supported on board versions 02F009-06 and 02F009-07)
N V(I/O): +5V (+3.3V tolerant)
N Board versions 02F009-06 and 02F009-07 only support 32 bit CompactPCI
® but can be used in 64-bit systems
