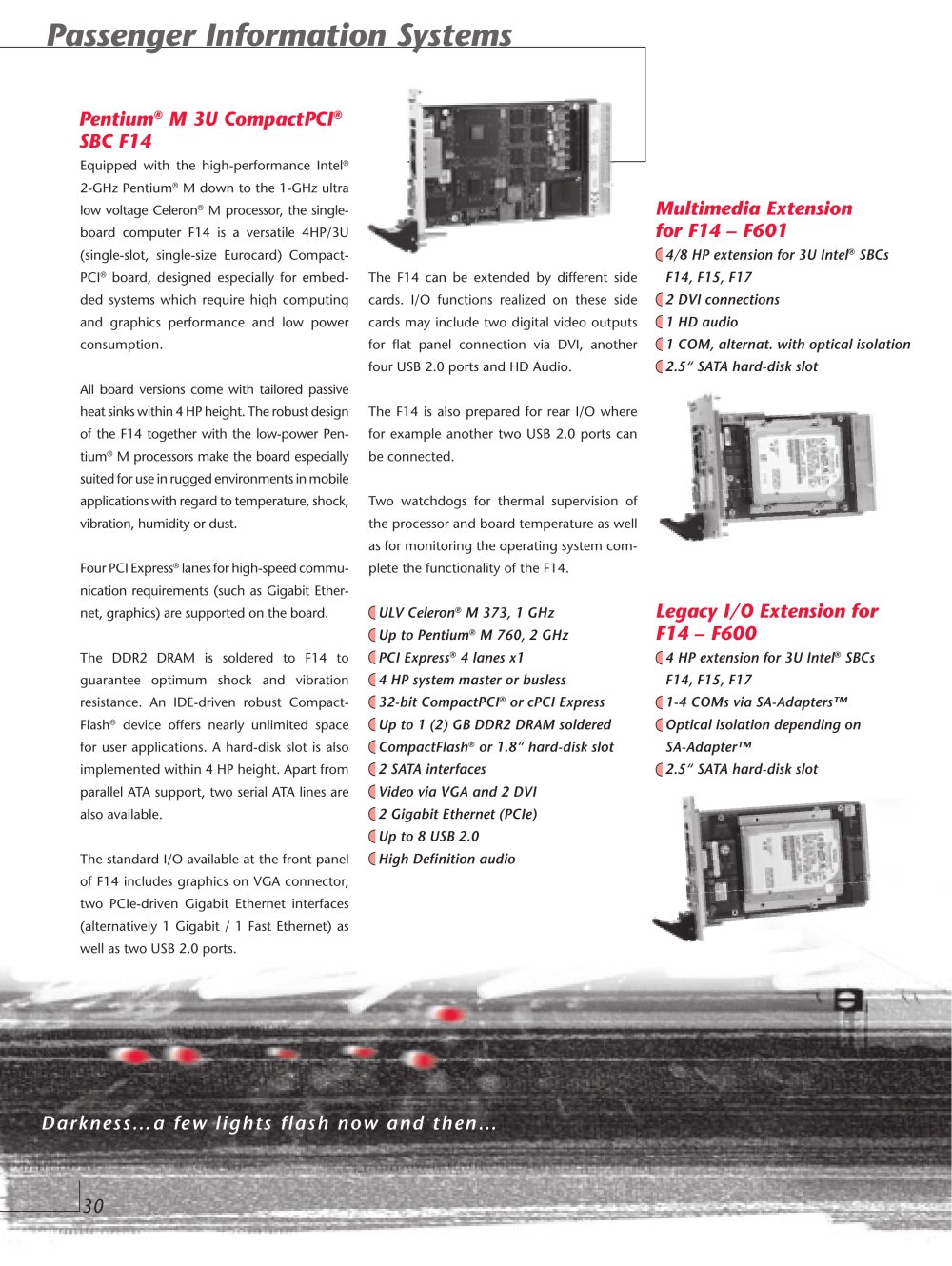

Passenger Information Systems

Pentium

®

M 3U CompactPCI

®

SBC F14

Equipped with the high-performance Intel ® 2-GHz Pentium ® M down to the 1-GHz ultra low voltage Celeron ® M processor, the single-board computer F14 is a versatile 4HP/3U (single-slot, single-size Eurocard) Compact- PCI

Multimedia Extension for F14 – F601

4/8 HP extension for 3U Intel
® Sbcs F14, F15, F17 2 DVI connections 1 HD audio 1 COM, alternat. with optical isolation 2.5“ SATA hard-disk slot
® board, designed especially for embed-ded systems which require high computing and graphics performance and low power consumption. All board versions come with tailored passive heat sinks within 4 HP height. The robust design of the F14 together with the low- power Pen-tium The F14 can be extended by different side cards. I/O functions realized on these side cards may include two digital video outputs for fl at panel connection via DVI, another four USB 2.0 ports and HD Audio.The F14 is also prepared for rear I/O where for example another two USB 2.0 ports can be connected.Two watchdogs for thermal supervision of the processor and board temperature as well as for monitoring the operating system com- plete the functionality of the F14. ® M processors make the board es pecially suited for use in rugged environments in mobile applications with regard to temperature, shock, vibration, humidity or dust. Four PCI Express ® lanes for high-speed commu-nication requirements (such as Gigabit Ether- net, graphics) are supported on the board.The DDR2 DRAM is soldered to F14 to guarantee optimum shock and vibration resistance. An IDE-driven robust Compact- Flash ULV Celeron
® M 373, 1 GHz Up to Pentium

Legacy I/O Extension for F14 – F600

® M 760, 2 GHz PCI Express
® 4 lanes x1 4 HP system master or busless 32-bit CompactPCI 4 HP extension for 3U Intel
® SBCs F14, F15, F17 1-4 COMs via SA-Adapters™ Optical isolation depending on SA-Adapter™ 2.5“ SATA hard-disk slot
® or cpci Express Up to 1 (2) GB DDR2 DRAM soldered CompactFlash
® device offers nearly unlimited space for user applications. A hard-disk slot is also implemented within 4 HP height. Apart from parallel ATA support, two serial ATA lines are also available.The standard I/O available at the front panel of F14 includes graphics on VGA connector, two PCIe-driven Gigabit Ethernet interfaces (alternatively 1 Gigabit / 1 Fast Ethernet) as well as two USB 2.0 ports. ® or 1.8“ hard-disk slot 2 SATA interfaces Video via VGA and 2 DVI 2 Gigabit Ethernet (PCIe) Up to 8 USB 2.0 High Defi nition audio

Darkness…a few lights flash now and then… 30
