Metallurgical Microscopes
2Pages

{{requestButtons}}

Catalog excerpts

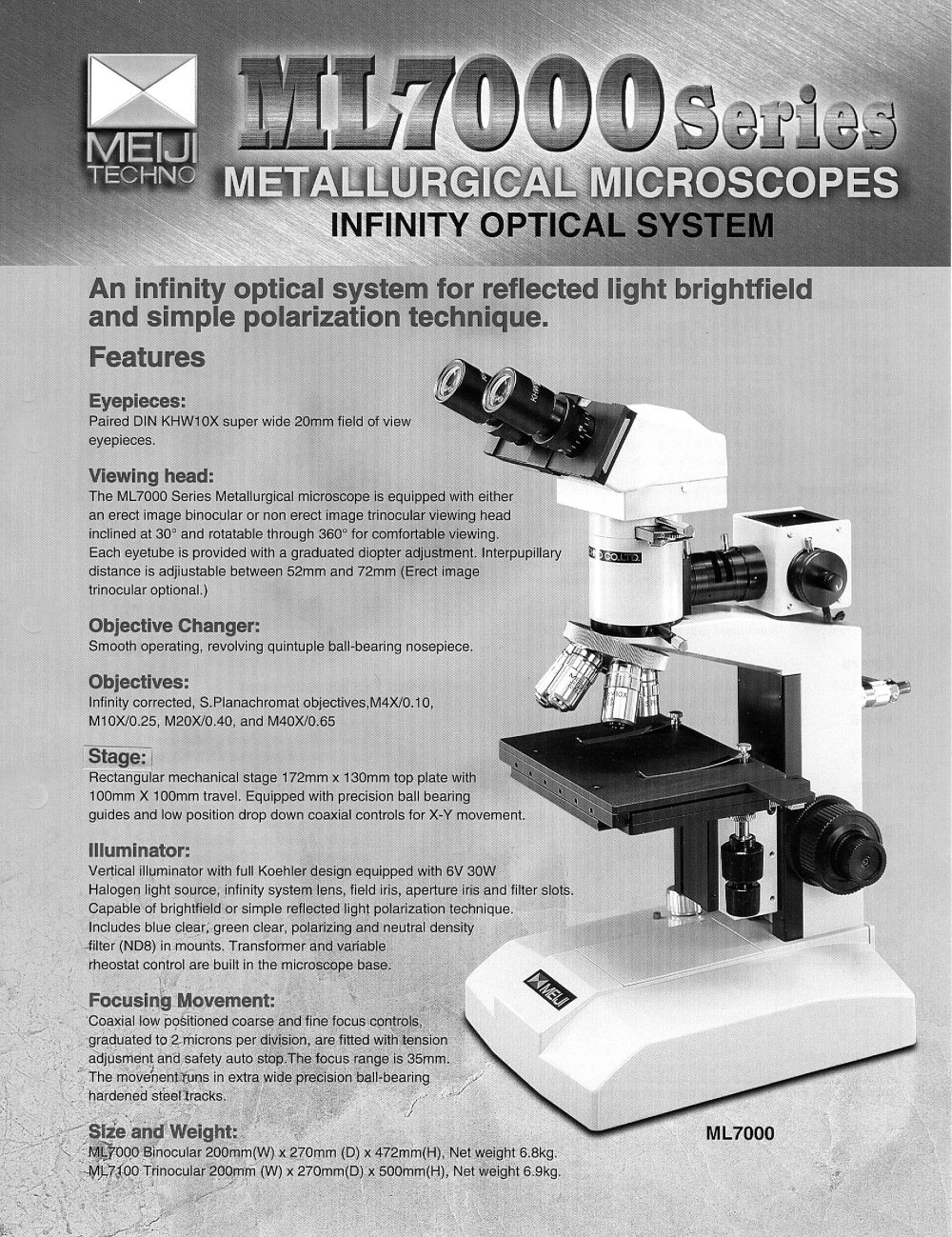

Metallurgical Microscopes - 1

Lumires d'architectures 2008 tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:12.00pt "Arial", sans-serif; } .font1 { font:18.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:10.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:8.00pt "Microsoft Sans Serif", sans-serif; } .font5 { font:21.00pt "Microsoft Sans Serif", sans-serif; } INFINITY OPTICAL SYSTEM An infinity optical System for reflected and simple polarization technique. Features brightfield Eyepieces: Paired DIN KHW10X super wide 20mm field of view eyepieces. Viewing head: The ML7000 Sries Metallurgical microscope is equipped with either an erect image binocular or non erect image trinocular viewing head inclined at 30° and rotatable through 360° for comfortable viewing. Each eyetube is provided with a graduated diopter adjustment. Interpupillary distance is adjiustable between 52mm and 72mm (Erect image trinocular optional.) Objective Changer: Smooth operating, revolving quintuple ball-bearing nosepiece. Objectives: Infinity corrected, S.PIanachromat objectives,M4X70.10, M10X/0.25, M20X/0.40, and M40X/0.65 Stage: Rectangular mechanical stage 172mm x 130mm top plate with 100mm X 100mm travel. Equipped with pr詩cision bail bearing guides and low position drop down coaxial controls for X-Y movement. Illuminator: Vertical illuminator with full Koehler design equipped with 6V 30W Halogen light source, infinity System lens, field iris, aperture iris and filter slots Capable of brightfield or simple reflected light polarization technique. Includes blue clear, green clear, polarizing and neutral density filter (ND8) in mounts. Transformer and variable rhostat control are built in the microscope base. Focusing Movement: Coaxial low positioned coarse and fine focus controls, graduated to 2.microns per division, are fitted with tension adjusment and safety auto stop.The focus range is 35mm. The movbent runs in extra wide pr驩cision ball-bearing hardened st'eeliracks. Size and Weight: ML7000 Binocular 200mm(W) x 270mm (D) x 472mm(H), Net weight 6.8kg. -Mj-71'00 Trinocular 200mm (W) x 270mm(D) x 500mm(H), Net weight 6.9kg. ML7000

Open the catalog to page 1
Metallurgical Microscopes - 2

Lumires d'architectures 2008 tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:12.00pt "Arial", sans-serif; } .font2 { font:22.00pt "Arial", sans-serif; } .font3 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:10.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:14.00pt "Microsoft Sans Serif", sans-serif; } .font8 { font:8.00pt "Times New Roman", serif; } Components G Accessories Viewing Heads...

Open the catalog to page 2
