Wilcoxon Research full product catalog
208Pages

{{requestButtons}}

Catalog excerpts

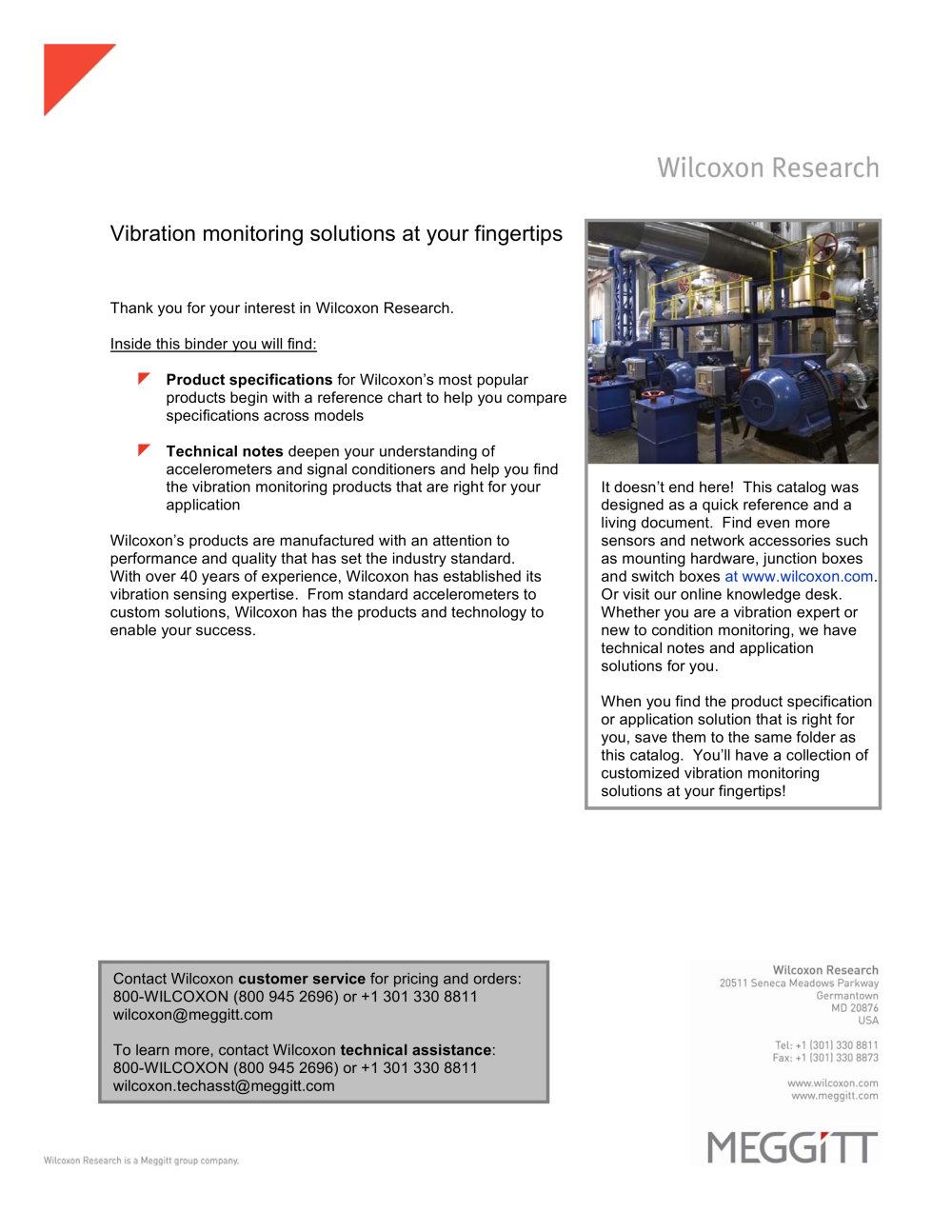

Wilcoxon Research full product catalog - 1

Vibration monitoring solutions at your fingertips Thank you for your interest in Wilcoxon Research. Inside this binder you will find: V Product spcifications for Wilcoxon's most popular products begin with a reference chart to help you compare specifications across models V Technical notes deepen your understanding of accelerometers and signal conditioners and help you find the vibration monitoring products that are right for your application Wilcoxon's products are manufactured with an attention to performance and quality that has set the industry standard. With over 40 years of experience, Wilcoxon has established its vibration sensing expertise. From standard accelerometers to custom solutions, Wilcoxon has the products and technology to enable your success. It doesn't end here! This catalog was designed as a quick reference and a living document. Find even more sensors and network accessories such as mounting hardware, junction boxes and switch boxes at www.wilcoxon.com. Or visit our online knowledge desk. Whether you are a vibration expert or new to condition monitoring, we have technical notes and application solutions for you. When you find the product specification or application solution that is right for you, save them to the same folder as this catalog. You'll have a collection of customized vibration monitoring solutions at your fingertips! Contact Wilcoxon customer service for pricing and orders: 800-WILCOXON (800 945 2696) or +1 301 330 8811 wilcoxon@meggitt.com To learn more, contact Wilcoxon technical assistance: 800-WILCOXON (800 945 2696) or +1 301 330 8811 wilcoxon.techasst@meggitt.com

Open the catalog to page 1
Wilcoxon Research full product catalog - 2

Wilcoxon Research Contents V Product overview V Product spcification sheets - Sensor selection guide - compare specifications to select the right sensor - General purpose accelerometers - Low frequency accelerometers - High frequency accelerometers - Piezovelocity transducers - Triaxial accelerometers - High temperature accelerometers - 4-20 mA loop powered sensors - Dual output vibration and temperature sensors - Specialty sensors - Leak detection sensors - Test and measurement sensors - Seismic sensors - Underwater accelerometers - Hydrophones - Helicopter sensors - Intelligent...

Open the catalog to page 2
Wilcoxon Research full product catalog - 3

Wilcoxon Research Full size performance in a compact sensor! Lightweight and less than 2 inches tall! The new 780A compact vibration sensor from Wilcoxon Research is a general purpose accelerometer with a sensitivity of 100 mV/g and a tight ±5% tolerance Lightweight is ideal for walk around routes Small design for applications with low or narrow clearance Rugged, hermetically sealed, ESD protection, and EMI / RFI shielded Temperature range from -50 degrees to 120 degrees C Class I Division 1 and Class I Division 2 hazardous area certified versions available soon Standard 2-pin connector...

Open the catalog to page 3
Wilcoxon Research full product catalog - 4

Wilcoxon Research New side exit accelerometer with integral cable The 787F is Wilcoxon's new side exit, low profile accelerometer with an intgral cable. The 787F has a permanent Viton® boot and Teflon® jacketed cable to provide protection in the harshest environments. Benefits of the low profile and integral cable design: V The permanently mounted cable keeps out contaminants such as dirt, oil, grease, water, and dust, which could otherwise get into the connector and cause an electrical short, erratic or erroneous readings, and corrosion V The connection integrity is critical for...

Open the catalog to page 4
Wilcoxon Research full product catalog - 5

vviicoxon Kesearcn Get continuous monitoring with displacement sensors! Displacement sensors output 4-20 mA vibration data that works with a PLC, DCS or SCADA system for simplified, real-time machinery health monitoring. Displacement can unmask hidden problems with easy to understand measurements 4-20 mA displacement sensors integrate at the measurement point for the cleanest vibration data Displacement measurements are ideal for pumps, fans, and balance of plant equipment 4-20 mA monitoring is simple and cost effective Wilcoxon Research Inc 2051 1 Seneca Meadows Parkway Germantown, MD...

Open the catalog to page 5
Wilcoxon Research full product catalog - 6

r Wilcoxon Research Magnet bases for accelerometers: High pull strength in a small package Wilcoxon Research's new magnet bases have a narrow diameter for easy handling in the field and high pull strength for reliable vibration data measurements Model B12 is a two-pole magnet base with a 7/8 inch (22mm) diameter and 20 pounds of force, suitable for the 786A and 780A Model B13 is a two-pole magnet base with a 1 inch (25mm) diameter and 35 pounds of force, suitable for the 793 and 787A Magnet bases are convenient and quick for walk-around data collection V Easily move the vibration sensor...

Open the catalog to page 6
Wilcoxon Research full product catalog - 7

r Wilcoxon Research New and improved, ultra-durable cable assembly from Wilcoxon Research Outstanding protection and reliability is now even better The stainless steel braided jacket of the J9T2AS cable is molded to the 6W connector, ensuring a rugged connection. Configure this cable assembly for your application with the following model number: R6W-xx-J9T2AS-yy 6W screw on connector 2-pin, MIL-C-5015 style connector compatible with most industrial accelerometers Օ IP64-rated to withstand dust and splashed water xx - Custom second connector Order any connector compatible with J9T2AS cable...

Open the catalog to page 7
Wilcoxon Research full product catalog - 8

Product overview, 2008 Wilcoxon Research Wilcoxon Research Product overview © Wilcoxon Research. This document and the information in it is confidential and is the property of Wilcoxon Research. It may not be copied or disclosed to a third party or used for any purpose other than that for which it is supplied without the express written consent of Wilcoxon Research. Information contained in this document may be subject to Export Control Regulations of the European Union, USA or other countries. Each recipient of this document is responsible for ensuring that transfer or use of any...

Open the catalog to page 8
Wilcoxon Research full product catalog - 9

Product overview, 2008 Wilcoxon Research Wilcoxon's history Wilcoxon Research is a leading manufacturer of vibration sensors and sensor Systems. Over 40 years experience in the accelerometer industry and a reputation for unparalleled product quality make Wilcoxon's products the standard by which all other vibration sensors are measured. V Founded in 1960 by engineers from the David Taylor Naval Research Lab. Initial market focus was the US Navy. Began manufacturing sensors for condition based monitoring in the 1980's. v Established our own advanced technology R&D group, Wilcoxon Labs, in...

Open the catalog to page 9
