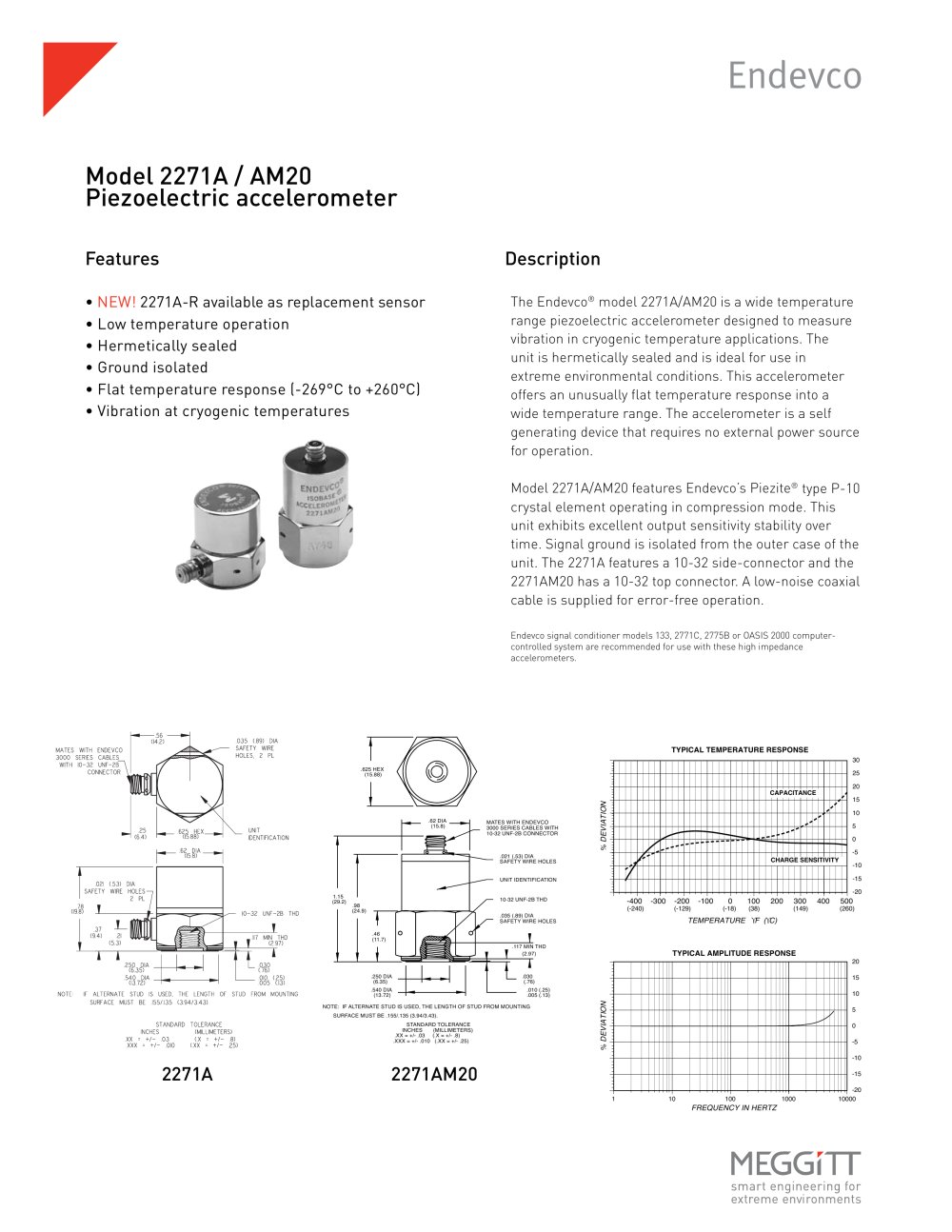

Endevco Model 2271A/AM20 Piezoelectric accelerometer Features • NEW! 2271A-R available as replacement sensor • Low température opération • Hermetically sealed • Ground Isolated • Fiat température response l-269°C to +260°C) • Vibration at cryogénie températures Description The Endevco* mode! 2271A/AM20 is a wide température range piezoolectnc accelerometer designed to measure vibration in cryogénie température applications. The unit is hermetically sealed and is idéal (or use in exlreme environ m entai conditions This accelerometer offers an unusually Hat température response into a wide température range. The accelerometer is a self generatmg device that requires no external power source for opération. Model 227WAM20 features Endevcos Piezite* type P-10 crystal élément operating in compression mode Thrs unit exhibits excellent output sensitrvity stability over time Signal ground is isolated from the outercase of the unit. The 2271A features a 10-32 side connector and the 2271AM20 has a 10-32 top connector A low noise coaxial cable is supplied for error-free opération Endtwco «190*1 conditioner rr>od»i» 133. Î771C, ÎTÏM or OASIS KtC cornçuttr-controLied 3ysttm*r*r»co*nm«nded for uh *ÀCh tht«* fcgb impvdanc* *>Ttl #tm pttVCO urir* «m mm r * f- W ?CO IM 0 »CO KO MO W t-**tl m» (M ■<•! 1 \r^A± Ml^lWJt Hts>^_^iA M'a HT/ OVUfi :J>■ L*P m>ti mu. ju • fef in . — 2271A 2271AM20 MEGGiTT Smart engineering for extrême environments
