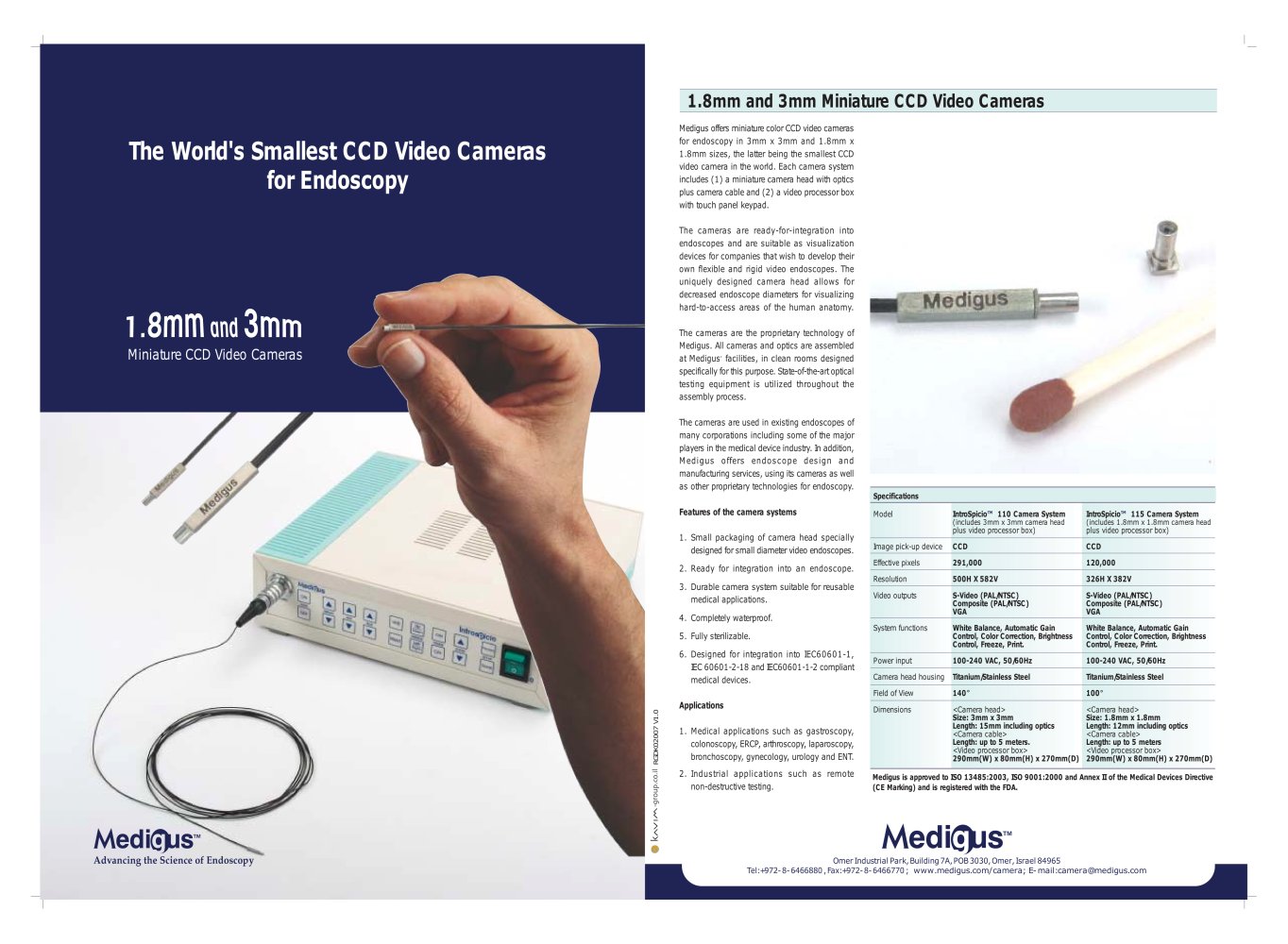

Medigus offers miniature color CCD video camerasfor endoscopy in 3mm x 3mm and 1.8mm x
1.8mm sizes, the latter being the smallest CCDvideo camera in the world. Each camera systemincludes (1) a miniature camera head with opticsplus camera cable and (2) a video processor box
with touch panel keypad.The cameras are ready-for-integration intoendoscopes and are suitable as visualization
devices for companies that wish to develop theirown flexible and rigid video endoscopes. Theuniquely designed camera head allows for
decreased endoscope diameters for visualizinghard-to-access areas of the human anatomy.The cameras are the proprietary technology ofMedigus. All cameras and optics are assembledat Medigus The World's Smallest CCD Video Camerasfor Endoscopy ’ facilities, in clean rooms designedspecifically for this purpose. State-of-the-art opticaltesting equipment is utilized throughout theassembly process.The cameras are used in existing endoscopes ofmany corporations including some of the majorplayers in the medical device industry. In addition,Medigus offers endoscope design and
manufacturing services, using its cameras as wellas other proprietary technologies for endoscopy. Miniature CCD Video Cameras Features of the camera systems 1.Small packaging of camera head speciallydesigned for small diameter video endoscopes.2.Ready for integration into an endoscope.
3.Durable camera system suitable for reusablemedical applications.4.Completely waterproof.5.Fully sterilizable.6.Designed for integration into IEC60601-1,IEC 60601-2-18 and IEC60601-1-2 compliantmedical devices. Specifications Model IntroSpicio ™ 110 Camera SystemIntroSpicio ™ 115 Camera System (includes 3mm x 3mm camera head(includes 1.8mm x 1.8mm camera head plus video processor box)plus video processor box) Applications Image pick-up device CCDCCD 1.Medical applications such as gastroscopy,colonoscopy, ERCP, arthroscopy, laparoscopy,bronchoscopy, gynecology, urology and ENT.2.Industrial applications such as remotenon-destructive testing. Effective pixels 291,000120,000 Resolution 500H X 582V326H X 382V Video outputs S-Video (PAL/NTSC)S-Video (PAL/NTSC)Composite (PAL/NTSC)Composite (PAL/NTSC)
VGAVGA System functions White Balance, Automatic Gain White Balance, Automatic GainControl, Color Correction, Brightness Control, Color Correction, BrightnessControl, Freeze, Print.Control, Freeze, Print. Power input 100-240 VAC, 50/60Hz100-240 VAC, 50/60Hz Camera head housing Titanium/Stainless SteelTitanium/Stainless Steel Field of View 140100 Length: up to 5 meters.Length: up to 5 meters Dimensions Size: 3mm x 3mmSize: 1.8mm x 1.8mm
Length: 15mm including opticsLength: 12mm including optics
RGDK02007 V1.0 290mm(W) x 80mm(H) x 270mm(D)290mm(W) x 80mm(H) x 270mm(D)
Medigus is approved to ISO 13485:2003, ISO 9001:2000 and Annex II of the Medical Devices Directive(CE Marking) and is registered with the FDA. Advancing the Science of Endoscopy Omer Industrial Park, Building 7A, POB 3030, Omer, Israel 84965 Tel: +972-8-6466880 , Fax: +972-8-6466770 ; www.medigus.com/camera; E-mail: camera@medigus.com
|
