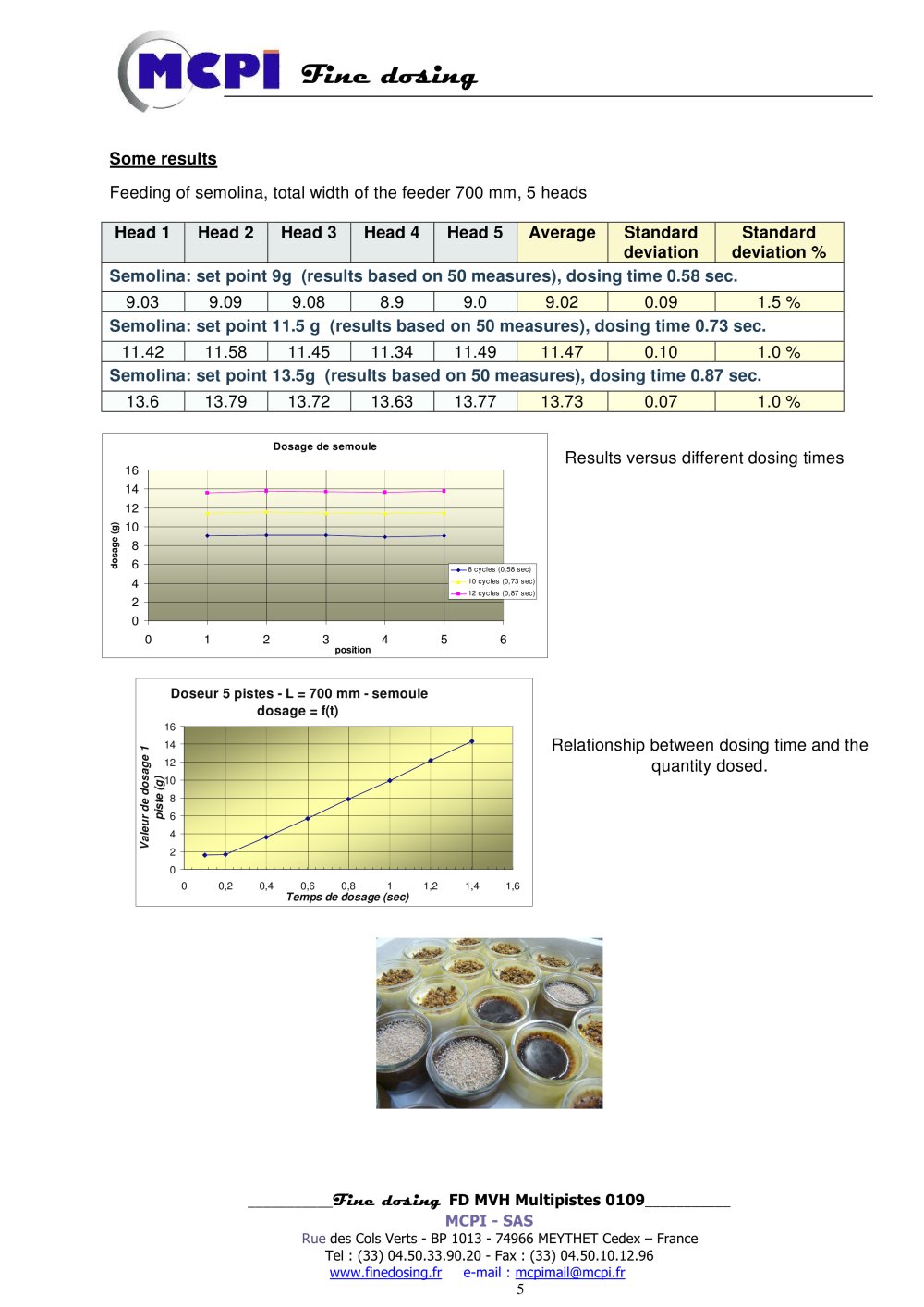

Some results Feeding of semolina, total width of the feeder 700 mm, 5 heads Head 1 Head 2 Head 3 Head 4 Head 5 Average Standard Standard deviation deviation % Semolina: set point 9g (results based on 50 measures), dosing time 0.58 sec. 9.03 9.09 9.08 8.9 9.0 9.02 0.09 1.5 % Semolina: set point 11.5 g (results based on 50 measures), dosing time 0.73 sec. 11.42 11.58 11.45 11.34 11.49 11.47 0.10 1.0 % Semolina: set point 13.5g (results based on 50 measures), dosing time 0.87 sec. 13.6 13.79 13.72 13.63 13.77 13.73 0.07 1.0 %
Dosage de semoule Results versus different dosing times Relationship between dosing time and the quantity dosed
dosage (g) 8 cycles (0,58 sec) 10 cycles (0,73 sec) 12 cycles (0,87 sec) 0246810121416 0123456 position Doseur 5 pistes - L = 700 mm - semoule dosage = f(t)

Multi head feeder - 26610 .

Valeur de dosage 1 piste (g) 02 4 6 81012 14 16 00,20,40,60,811,21,41,6 Temps de dosage (sec) ___________ ___________ 5
