PROCESS AUTOMATION & MECHATRONICS

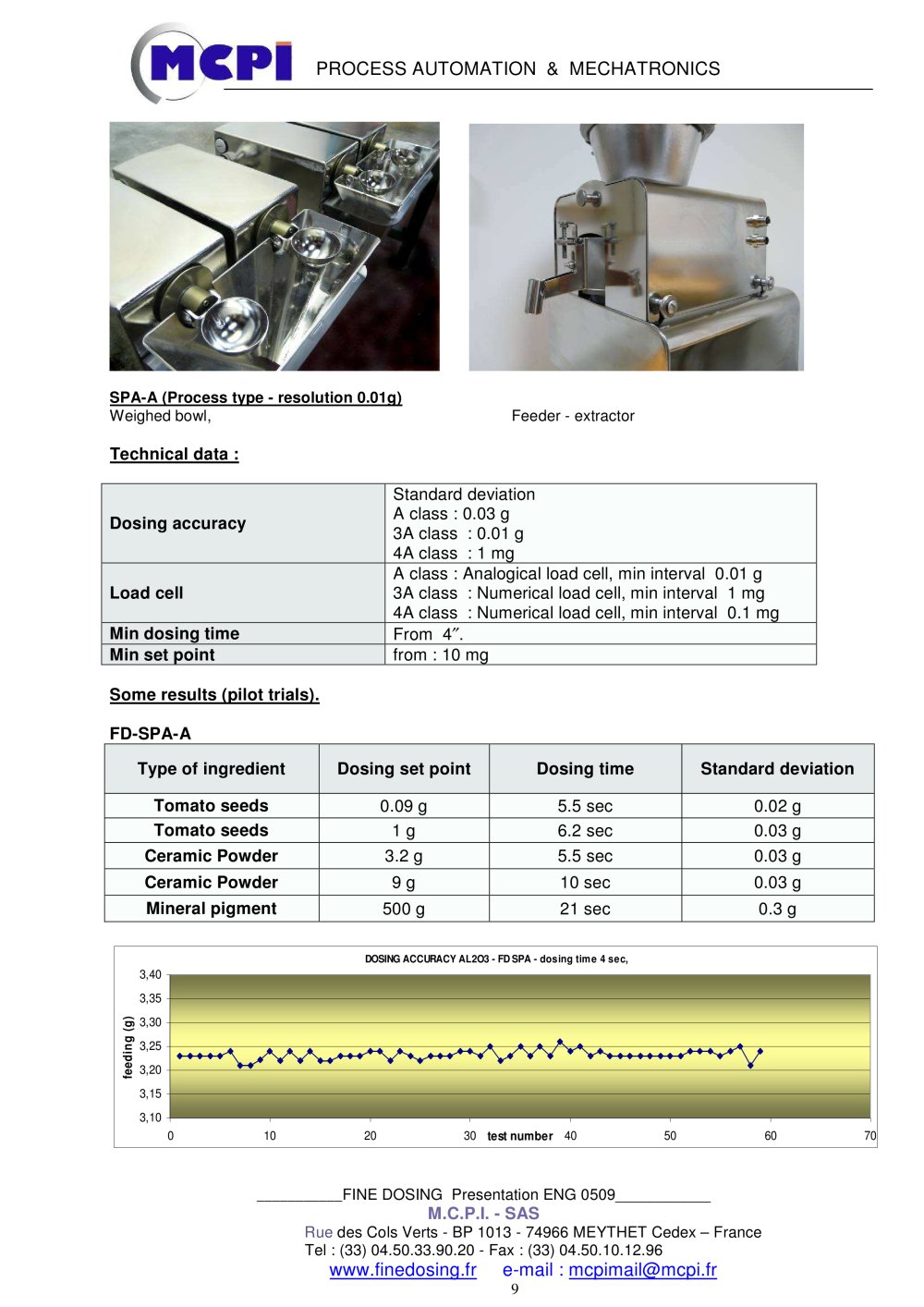

SPA-A (Process type - resolution 0.01g) Weighed bowl, Feeder - extractor Technical data : Standard deviation Dosing accuracy A class : 0.03 g 3A class : 0.01 g 4A class : 1 mg A class : Analogical load cell, min interval 0.01 g Load cell 3A class : Numerical load cell, min interval 1 mg 4A class : Numerical load cell, min interval 0.1 mg Min dosing time From 4 ″ . Min set point from : 10 mg Some results (pilot trials). FD-SPA-A Type of ingredient Dosing set point Dosing time Standard deviation Tomato seeds 0.09 g 5.5 sec 0.02 g Tomato seeds 1 g 6.2 sec 0.03 g Ceramic Powder 3.2 g 5.5 sec 0.03 g Ceramic Powder 9 g 10 sec 0.03 g Mineral pigment 500 g 21 sec 0.3 g
DOSING ACCURACY AL2O3 - FD SPA - dosing time 4 sec, feeding (g) 3,103,15 3,20 3,253,303,35 3,40 010203040506070 ___________ FINE DOSING Presentation ENG 0509___________ M.C.P.I. - SAS
Rue des Cols Verts - BP 1013 - 74966 MEYTHET Cedex – FranceTel : (33) 04.50.33.90.20 - Fax : (33) 04.50.10.12.96

www.finedosing.fr e-mail : mcpimail@mcpi.fr

test number 9
