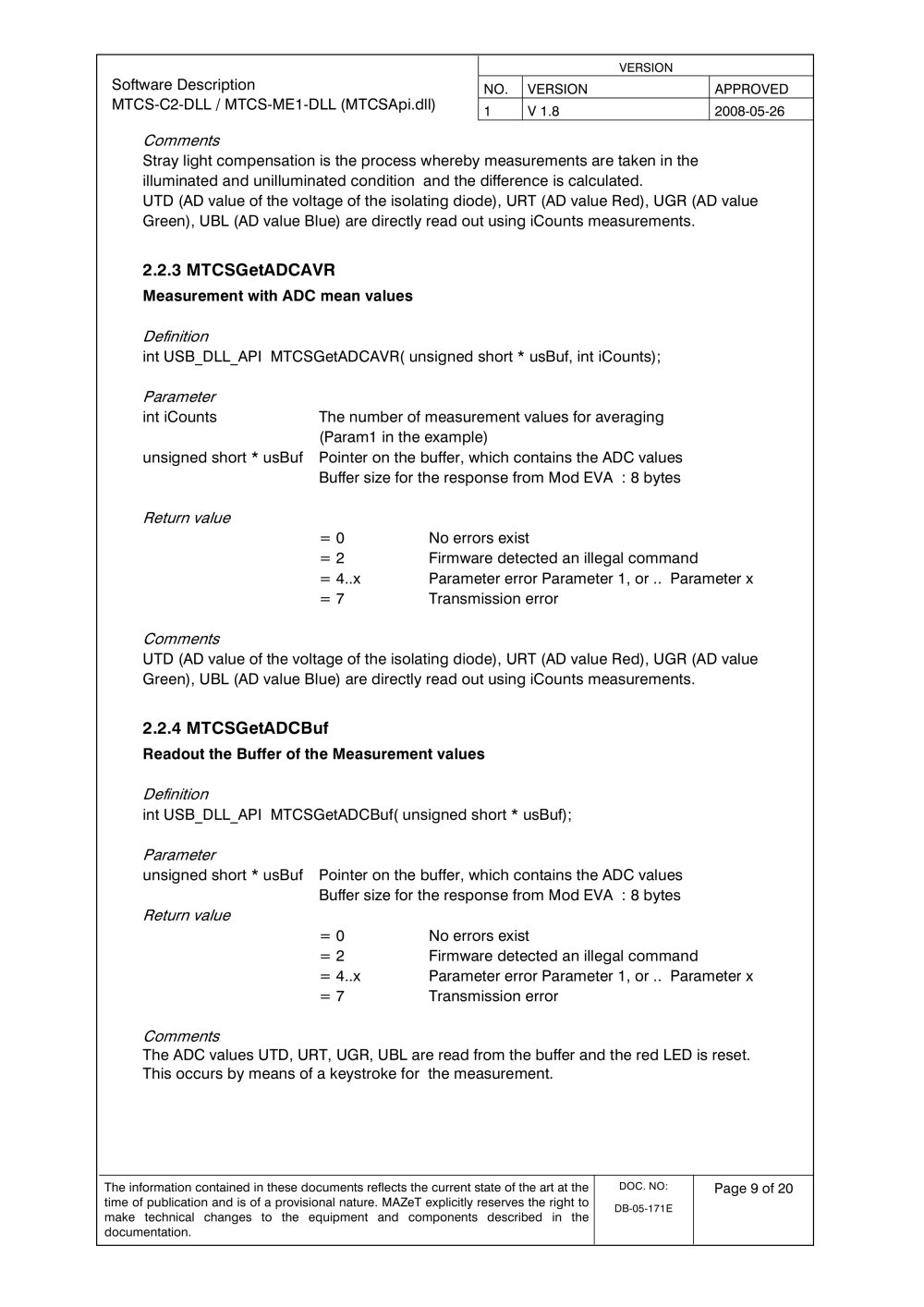

| Software Description MTCS-C2-DLL / MTCS-ME1 -DLL (MTCSApi.dll) | ||||||||||||||||||||||||||||||||||||||
| Comments Stray light compensation is the process whereby measurements are taken in the illuminated and unilluminated condition and the difference is calculated. UTD (AD value of the voltage of the isolating diode), URT (AD value Red), UGR (AD value Green), UBL (AD value Blue) are directly read out using iCounts measurements. | ||||||||||||||||||||||||||||||||||||||
| 2.2.3 MTCSGetADCAVR Measurement with ADC mean values Definition int USB_DLL_API M TCSGetADCAVR( unsigned short * usBuf, int iCounts); Parameter int iCounts The number of measurement values for averaging (Paramt in the example) unsigned short * usBuf Pointer on the buffer, which contains the ADC values Buffer size for the response from Mod EVA : 8 bytes | ||||||||||||||||||||||||||||||||||||||
| No errors exist Firmware detected an illegal command Parameter error Parameter 1, or.. Parameter x Transmission error | ||||||||||||||||||||||||||||||||||||||
| Comments UTD (AD value of the voltage of the isolating diode), URT (AD value Red), UGR (AD value Green), UBL (AD value Blue) are directly read out using iCounts measurements. | ||||||||||||||||||||||||||||||||||||||
| 2.2.4 MTCSGetADCBuf Readout the Buffer of the Measuremenf values Definition int USB_DLL_API MTCSG etA DC B uf ( unsigned short * usBuf); Parameter unsigned short * usBuf Pointer on the buffer, which contains the ADC values Buffer size for the response from Mod EVA : 8 bytes Return value = 0 No errors exist = 2 Firmware detected an illegal command = 4,.x Parameter error Parameter 1, or.. Parameterx = 7 Transmission error | ||||||||||||||||||||||||||||||||||||||
| Comments The ADC values UTD, URT, UGR, UBL are read from the buffer and the red LED is reset This occurs by means of a keystroke for the measurement. | ||||||||||||||||||||||||||||||||||||||
