VERSION
NO.	VERSION	APPROVED
1	V 1.8	2008-05-26

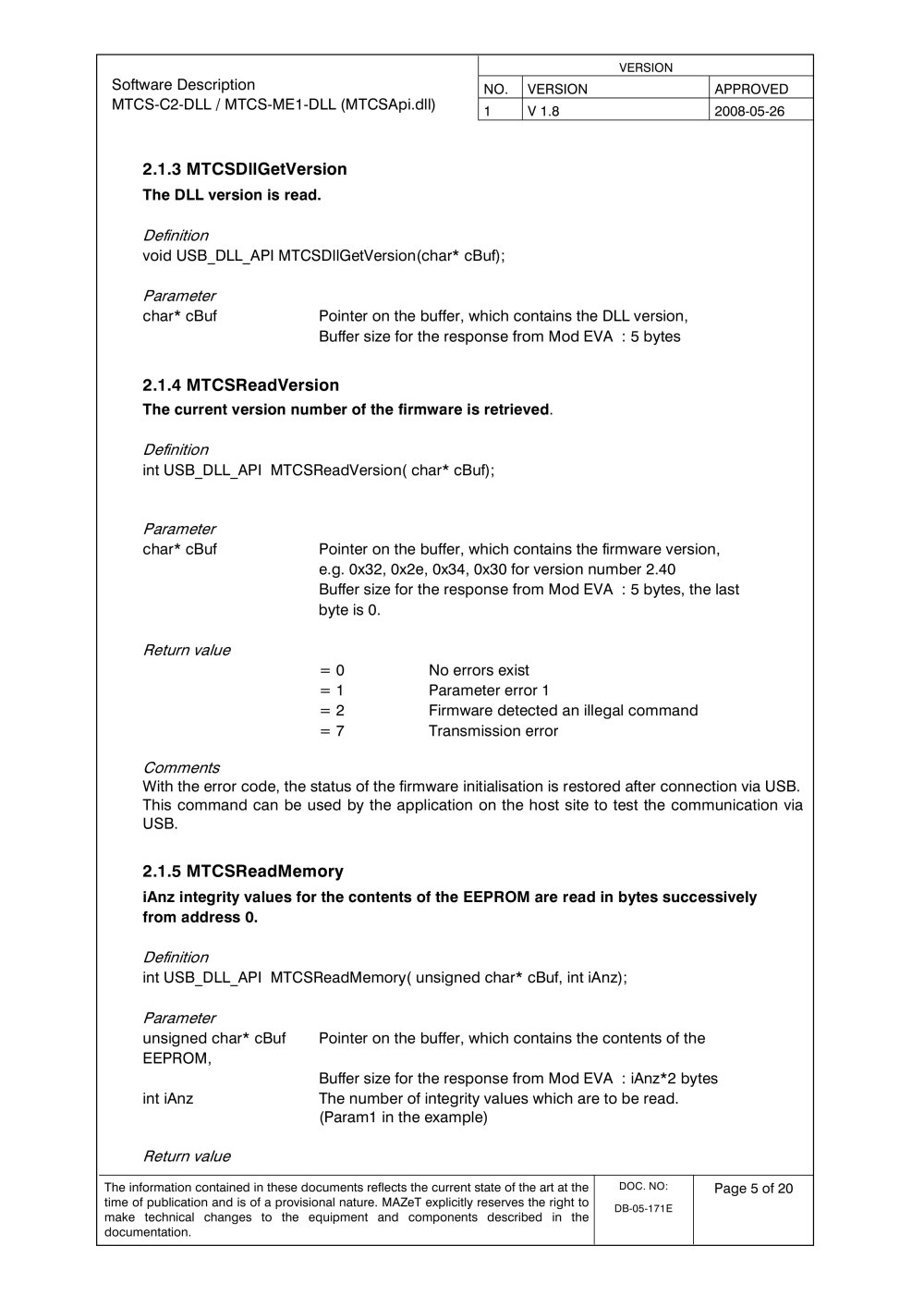

Software Description

MTCS-C2-DLL / MTCS-ME1 -DLL (MTCSApi.dll)

2.1.3 MTCSDIIGetVersion The DLL version is read.

Definition

void USB_DLL_API MTCSDIIGetVersion(char* cBuf); Parameter

char* cBuf Pointer on the buffer, which contains the DLL version,

Buffer size for the response from Mod EVA : 5 bytes

2.1.4 MTCSReadVersion

The current version number of the firmware is retrieved.

Definition

int USB_DLL_API MTCSReadVersion( char* cBuf);

Parameter

char* cBuf Pointer on the buffer, which contains the firmware version,

e.g. 0x32, 0x2e, 0x34, 0x30 for version number 2.40 Buffer size for the response from Mod EVA : 5 bytes, the last byte is 0.

Return value

= 0 No errors exist

= 1 Parameter error 1

= 2 Firmware detected an illegal command

= 7 Transmission error

Comments

With the error code, the status of the firmware initialisation is restored after connection via USB. This command can be used by the application on the host site to test the communication via USB.

2.1.5 MTCSReadMemory

iAnz integrity values for the contents of the EEPROM are read in bytes successively from address 0.

Definition

int USB_DLL_API MTCSReadMemory( unsigned char* cBuf, int iAnz); Parameter

unsigned char* cBuf Pointer on the buffer, which contains the contents of the EEPROM,

Buffer size for the response from Mod EVA : iAnz*2 bytes int iAnz The number of integrity values which are to be read.

(Paraml in the example)

Return value

DOC. NO: DB-05-171E

The information contained in these documents reflects the current state of the art at the time of publication and is of a provisional nature. MAZeT explicitly reserves the right to make technical changes to the equipment and components described in the documentation.

Page 5 of 20
