| Software Description MTCS-C2-DLL / MTCS-ME1 -DLL (MTCSApi.dll) | ||||||||||||||||||||||||||||||||||||||||||||||

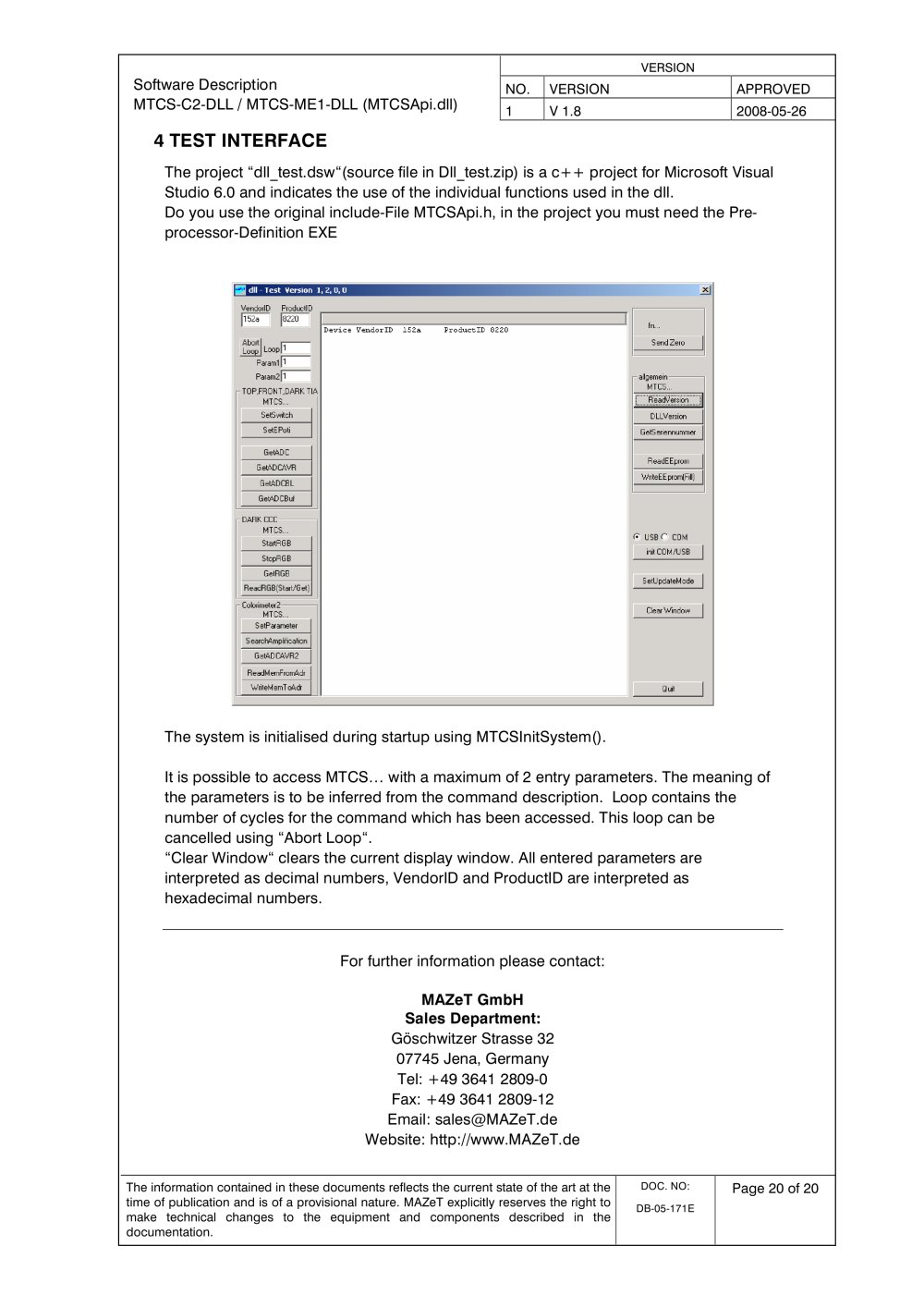

| 4 TEST INTERFACE The project "dll_test.dsw"(source file in Dll_test.zip) is a c+ + project for Microsoft Visual Studio 6.0 and indicates the use of the individual functions used in the dll. Do you use the original include-File MTCSApi.h, in the project you must need the Preprocessor-Definition EXE | ||||||||||||||||||||||||||||||||||||||||||||||
| 3 dll - Test Version 1, 2, 0, 0 | ||||||||||||||||||||||||||||||||||||||||||||||
| The system is initialised during startup using MTCSInitSystem(). | ||||||||||||||||||||||||||||||||||||||||||||||
| It is possible to access MTCS... with a maximum of 2 entry parameters. The meaning of the parameters is to be inferred from the command description. Loop contains the number of cycles for the command which has been accessed. This loop can be cancelled using "Abort Loop". "Clear Window" clears the current display window. All entered parameters are interpreted as decimal numbers, VendorlD and ProductID are interpreted as hexadecimal numbers. | ||||||||||||||||||||||||||||||||||||||||||||||
| For further information please contact: MAZeT GmbH Sales Department: Gôschwitzer Strasse 32 07745 Jena, Germany Tel: +49 3641 2809-0 Fax: +49 3641 2809-12 Email: sales@MAZeT.de Website: http://www.MAZeT.de | ||||||||||||||||||||||||||||||||||||||||||||||
| DOC. NO: DB-05-171E | ||||||||||||||||||||||||||||||||||||||||||||||
| The information contained in these documents reflects the current state of the art at the time of publication and is of a provisional nature. MAZeT explicitly reserves the right to make technical changes to the equipment and components described in the documentation. | ||||||||||||||||||||||||||||||||||||||||||||||
| Page 20 of 20 | ||||||||||||||||||||||||||||||||||||||||||||||
