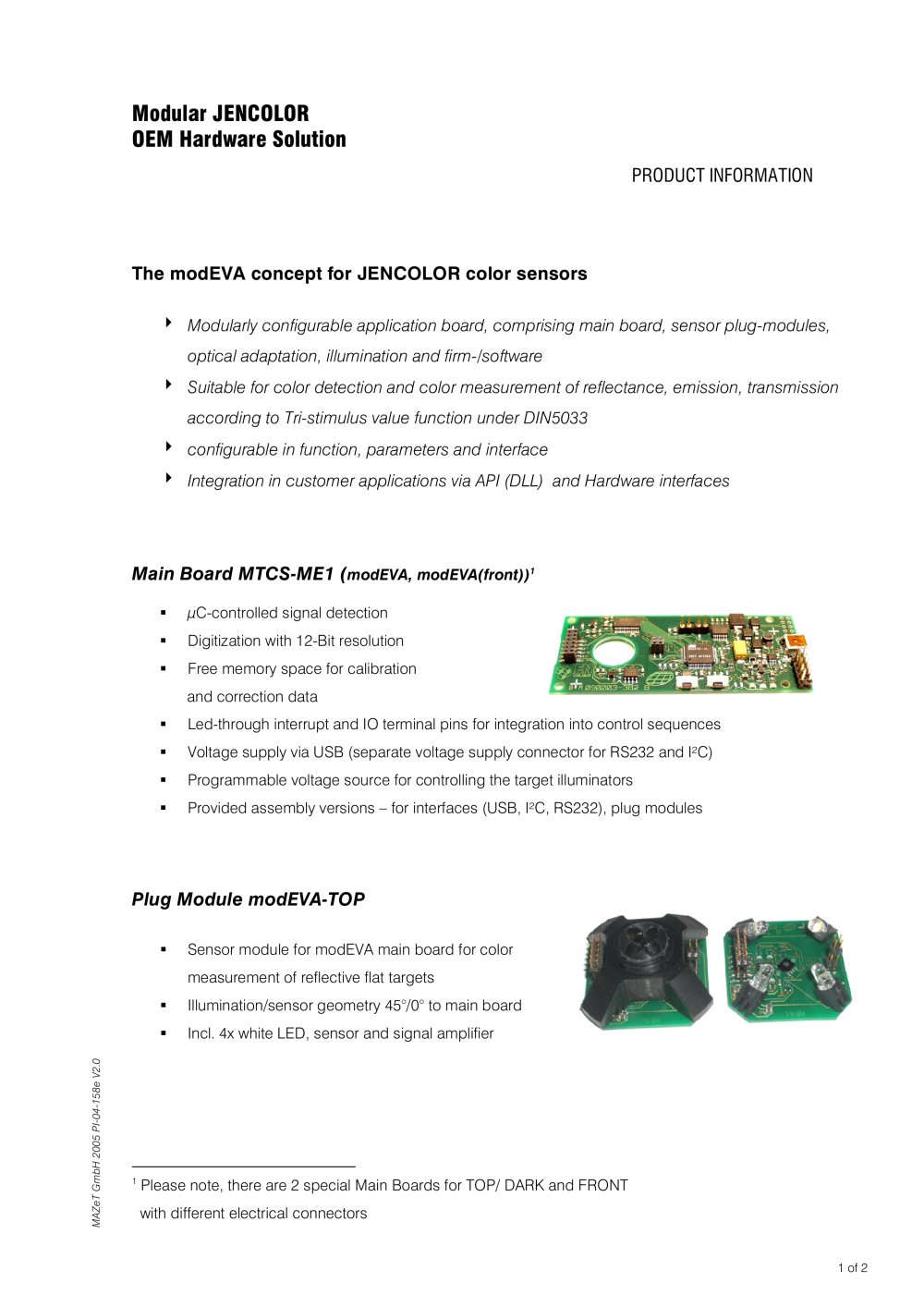

Modular JENCOLOR OEM Hardware Solution

PRODUCT INFORMATION

The modEVA concept for JENCOLOR color sensors

► Modularly configurable application board, comprising main board, sensor plug-modules, optical adaptation, illumination and firm-lsoftware

► Suitable for color detection and color measurement of reflectance, emission, transmission according to Tri-stimulus value function under DIN5033

► configurable in function, parameters and interface

► Integration in customer applications via API (DLL) and Hardware interfaces

Main Board MTCS-ME1 (modEVA, modEVA(front))¹

■ juC-controlled signal detection _______ ■ ■ ■.

Digitization with 12-Bit resolution Free memory space for calibration

and correction data

■ Led-through interrupt and IO terminal pins for Integration Into control sequences

■ Voltage supply via USB (separate voltage supply connector for RS232 and I²C)

■ Programmable voltage source for controlling the target illuminators

■ Provided assemblyversions - for interfaces (USB, PC, RS232), plug modules

Plug Module modEVA-TOP

Sensor module for modEVA main board for color

measurement of reflective flat targets Illumination/sensor geometry 4570° to main board Incl. 4x white LED, sensor and signal amplifier

¹ Please note, there are 2 special Main Boards for TOP/ DARK and FRONT

with different electrical connectors
