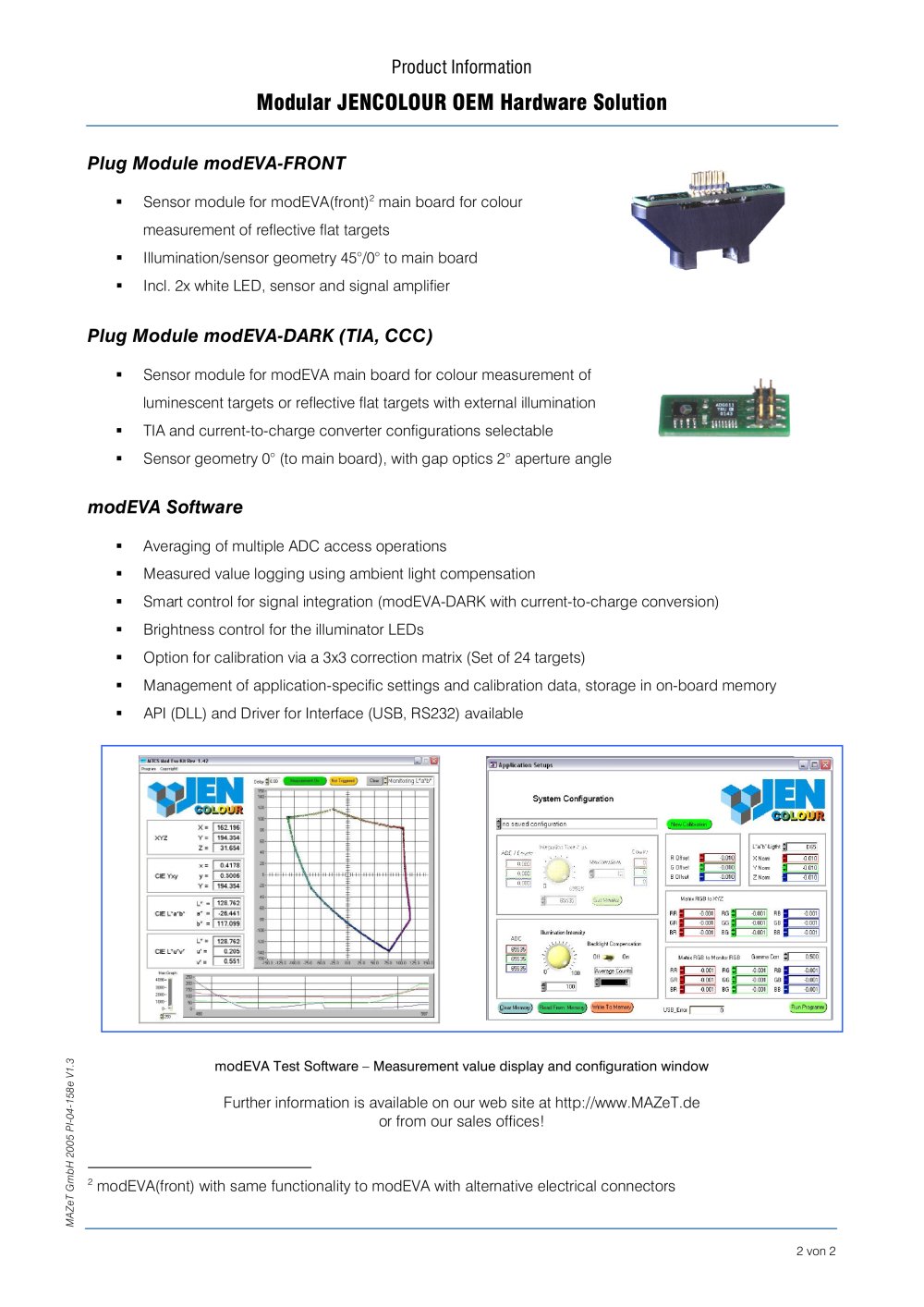

Product Information Modular JENCOLOUR OEM Hardware Solution

Plug Module modEVA-FRONT

■ Sensor module for modEVA(front)² main board for colour measurement of reflective flat targets

■ Illumination/sensor geometry 4570° to main board

■ Incl. 2x white LED, sensor and signal amplifier

Plug Module modEVA-DARK (TIA, CCC)

■ Sensor module for modEVA main board for colour measurement of luminescent targets or reflective flat targets with external illumination

■ TIA and current-to-charge industrial converter configurations selectable

■ Sensor geometry 0° (to main board), with gap optics 2° aperture angle

modEVA Software

Averaging of multiple ADC access operations

Measured value logging using ambient light compensation

Smart control for signal integration (modEVA-DARK with current-to-charge conversion)

Brightness control for the illuminator LEDs

Option for calibration via a 3x3 correction matrix (Set of 24 targets)

Management of application-specific settings and calibration data, storage in on-board memory API (DLL) and Driver for Interface (USB, RS232) available

■

modEVA Test Software - Measurement value display and configuration window

Further information is available on our web site at http://www.MAZeT.de or from our sales offices!

² modEVA(front) with same functionality to modEVA with alternative industrial electrical connectors
