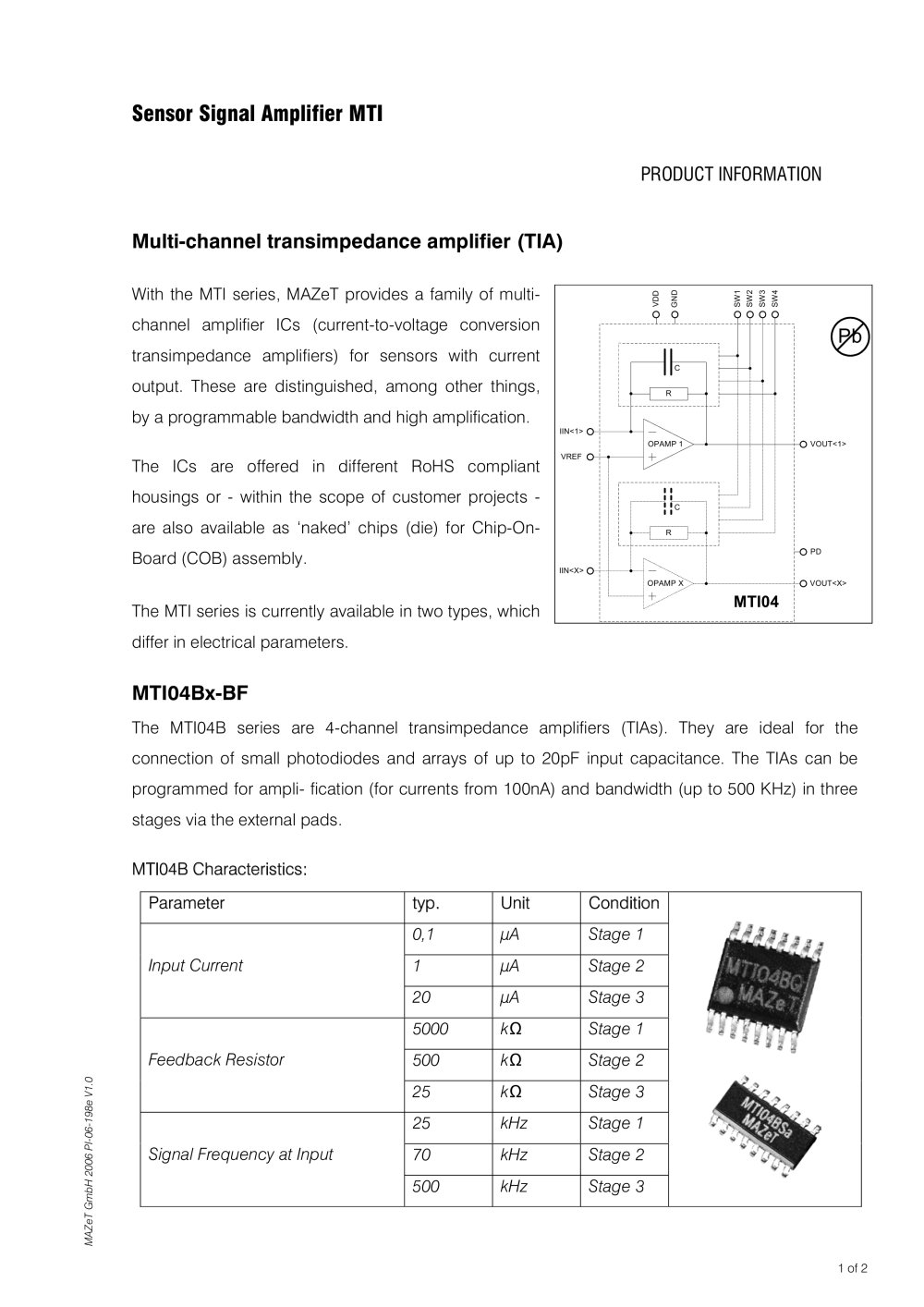

Sensor Signal Amplifier MTI

PRODUCT INFORMATION

Multi-channel transimpedance amplifier (TIA)

With the MTI series, MAZeT provides a family of multi-channel amplifier ICs (current-to-voltage conversion transimpedance amplifiers) for sensors with current output. These are distinguished, among other things, by a programmable bandwidth and high amplification.
VDDGNDSW1SW2 SW3SW4

Pb

IIN<1> IIN VREF OPAMP 1RC The ICs are offered in different RoHS compliant housings or - within the scope of customer projects - are also available as ‘naked’ chips (die) for Chip-On-Board (COB) assembly.
RC PD OPAMP X VOUT VOUT<1> The MTI series is currently available in two types, which differ in electrical parameters.
MTI04

MTI04Bx-BF

The MTI04B series are 4-channel transimpedance amplifiers (TIAs). They are ideal for the connection of small photodiodes and arrays of up to 20pF input capacitance. The TIAs can be programmed for ampli- fication (for currents from 100nA) and bandwidth (up to 500 KHz) in three stages via the external pads. MTI04B Characteristics: Parameter typ. Unit Condition 0,1 µA Stage 1 Input Current 20 µA Stage 3 1 µA Stage 2 5000 k Stage 1 Feedback Resistor 25 k 500 k Stage 2 Stage 3 25 kHz Stage 1 Signal Frequency at Input 500 kHz Stage 3 70 kHz Stage 2
MAZeT GmbH 2006 PI-06-198e V1.0 1 of 2
